UNF/UN-2A Male Stud Coupling with O-Ring Thread - Heavy Duty Carbon Steel, DIN 2353 Compliant
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Heavy Duty Carbon Steel, DIN 2353 Compliant
SKU:FIT-6e65ff
Heavy-duty carbon steel male stud coupling with UNF/UN-2A O-ring thread. DIN 2353 compliant for secure, leak-free connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Heavy Duty Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
UNF/UN-2A Male Stud Coupling with O-Ring Thread - Heavy Duty Carbon Steel, DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

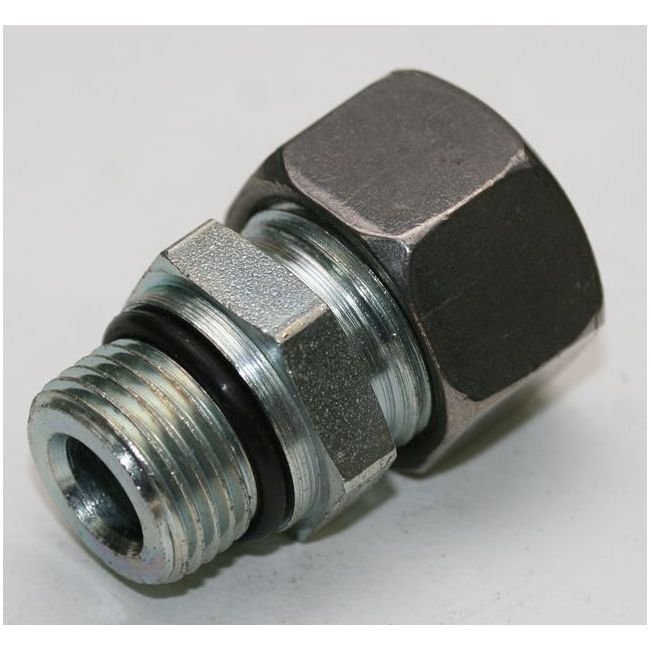

The UNF/UN-2A Male Stud Coupling with O-Ring Thread is a heavy-duty fitting made of carbon steel, designed for optimal performance in high-pressure environments. With a tube diameter of 20.0 mm and a nominal operating pressure of 400 bar, this coupling ensures secure and leak-free connections. Meeting DIN 2353 standards, it offers reliability and durability, making it ideal for industrial applications where quality is paramount.

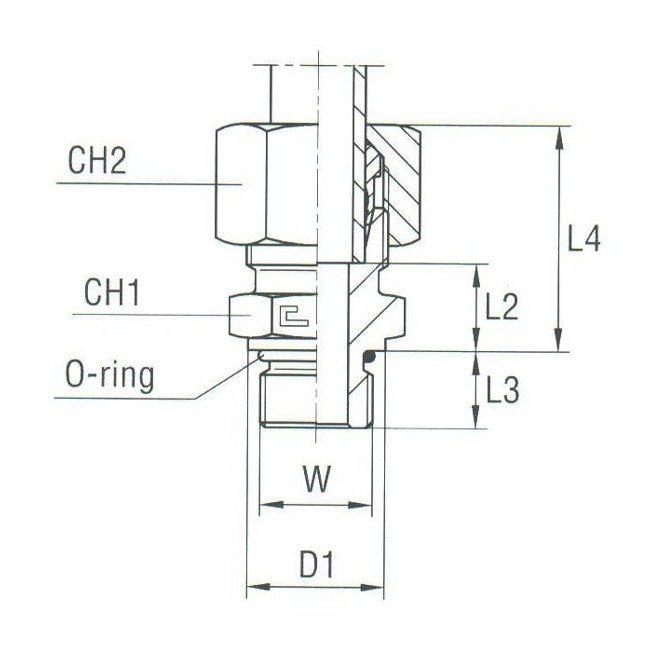

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications D1
26.8 mm
Specifications L2
20.8 mm
Specifications L3
12.7 mm
Specifications L4
42.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
Specifications W Thread Size
7/8-14
