UNF/UN-2A Male Stud Coupling with O-Ring Thread - Stainless Steel

Name: UNF/UN-2A Male Stud Coupling with O-Ring Thread - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: FIT-76b1cf
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-76b1cf

High-quality stainless steel Male Stud Coupling for secure and reliable hydraulic connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

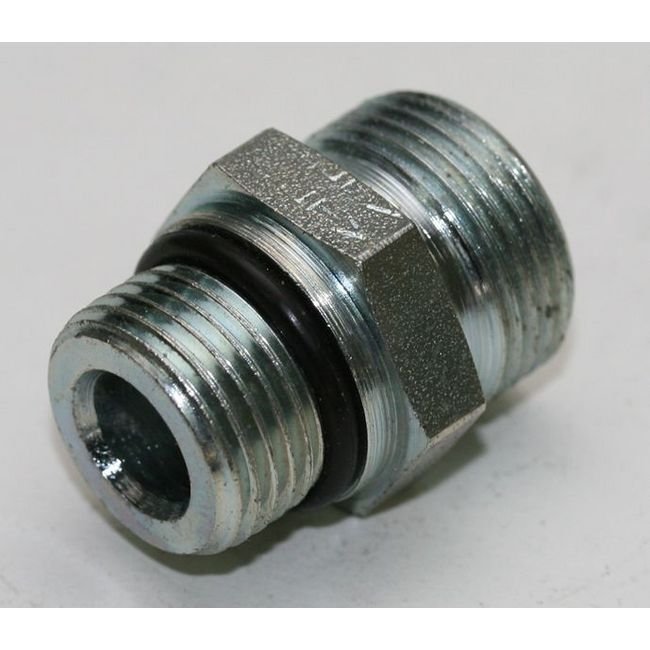

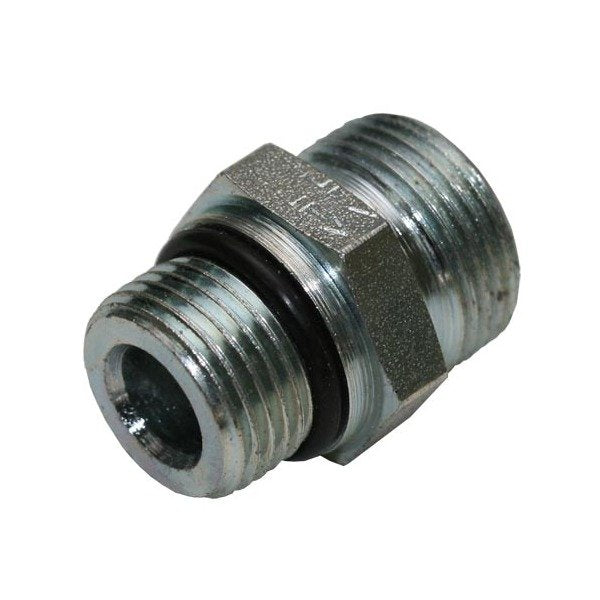

The UNF/UN-2A Male Stud Coupling with O-Ring Thread in Stainless Steel is designed for light-duty applications, with a tube diameter of 10.0 mm and an optimal pressure rating of 315 bar. Meeting DIN 2353 standards, this coupling ensures secure and reliable connections, with precise dimensions for seamless integration into hydraulic systems.

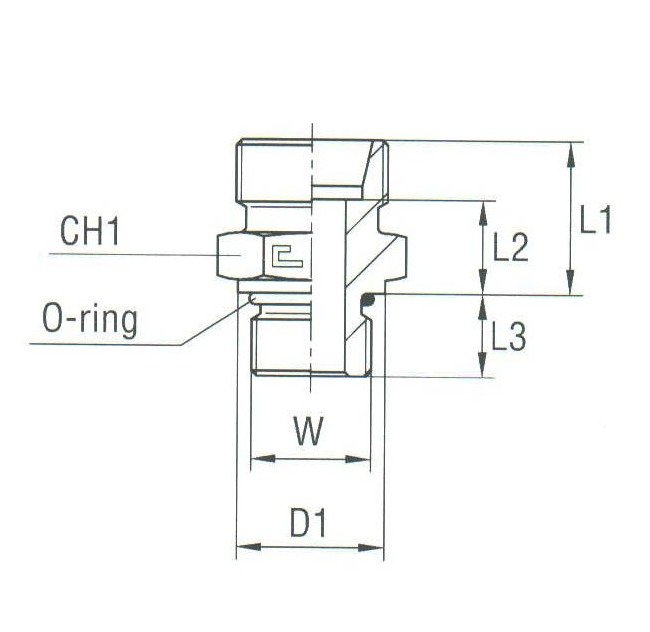

Product Specifications

Specifications Ch1

17.0 mm

Specifications D1

16.8 mm

Specifications L1

17.9 mm

Specifications L2

10.9 mm

Specifications L3

9.1 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Specifications W Thread Size

1/2-20
