UNF/UN-2A Male Stud Non Return Valve with O-ring - Standard Body
UNF/UN-2A Male Stud Non Return Valve with O-ring - Standard Body
SKU:VAL-b69348
Durable stainless steel UNF/UN-2A Male Stud Non Return Valve for precise flow control under varying pressures.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
UNF/UN-2A Male Stud Non Return Valve with O-ring - Standard Body
$59.99
Quantity: 1
Claim Your Seller Account
UNF/UN-2A Male Stud Non Return Valve with O-ring - Standard Body
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UN-2A Male Stud Non Return Valve ensures reliable flow control with its stainless steel construction and precise design. With a nominal operating pressure of 400 bar, it offers durability and performance in diverse hydraulic systems. The valve's extra light duty, heavy duty, and light duty pressure options cater to various operational needs, making it an ideal choice for industrial applications. Compliant with strict industry standards, this valve guarantees quality and efficiency in fluid handling.

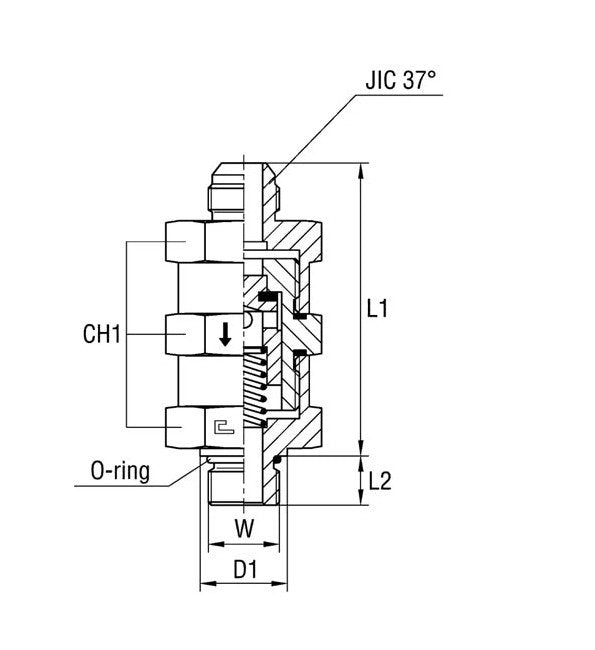

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
