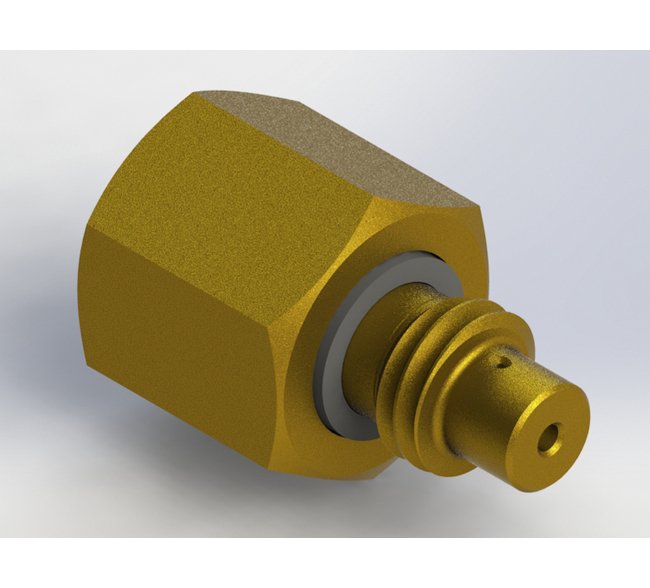

UNF/UNC Fixed Flow Controls Adapter - Precision Ball Type
UNF/UNC Fixed Flow Controls Adapter - Precision Ball Type
SKU:FLO-b6b15d
Precision ball type flow controls with brass construction and Viton seals for reliable, controlled flow in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UNF/UNC Fixed Flow Controls Adapter - Precision Ball Type
$29.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Fixed Flow Controls Adapter - Precision Ball Type
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Fixed Flow Controls Adapter features a stainless steel or Buna-N ball coupled with a precision orifice for controlled flow in one direction and free flow in the reverse. With brass construction and Viton seals, this adapter ensures reliable performance with a 0.023 in orifice diameter, 125 psig cracking pressure, and compatibility with 10-32 UNF male and female connections. Ideal for precise flow regulation in a variety of applications, this adapter offers durability, accuracy, and ease of installation.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.012
Flow Data Low Flow Coefficient
0.012
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
23
Specifications Screened
None
Specifications Seal Material
Viton
