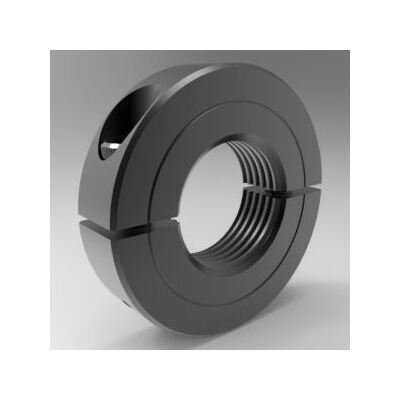

UNF/UNC Threaded Clamp-Type Shaft Collars - High Strength Steel

Name: UNF/UNC Threaded Clamp-Type Shaft Collars - High Strength Steel
Brand: Stafford Manufacturing Corp.
SKU: THR-b3a642
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-b3a642

Precision machined 2-Piece UNF/UNC Threaded Shaft Collars for secure and versatile shaft positioning.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your mechanical assemblies with our precision machined UNF/UNC 2-Piece Threaded Shaft Collars. Designed to fit standard UNF/UNC threaded shafts, these collars offer superior holding power over set-screw types. With options in High Strength Steel and Low Profile styles, these collars allow for easy disassembly and adjustment anywhere on a shaft. Non-marring and with recessed screws, these collars provide a reliable and secure clamping solution. Stocked in Steel and Stainless Steel to meet diverse needs.

Product Specifications

Dimensional Attributes Outside Diameter

2.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

1 1/4-7

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.34 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

4L104F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786012365

UNF/UNC Threaded Clamp-Type Shaft Collars - High Strength Steel
