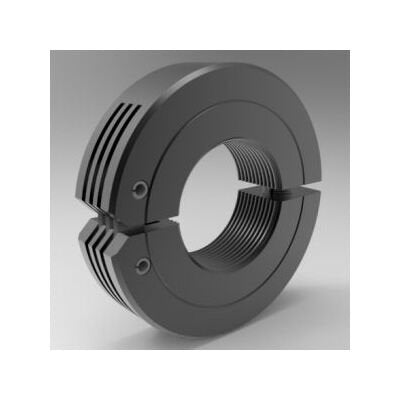

UNF/UNC Threaded Hinge Shaft Collar - High Strength Steel

Name: UNF/UNC Threaded Hinge Shaft Collar - High Strength Steel
Brand: Stafford Manufacturing Corp.
SKU: THR-ca9c22
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-ca9c22

Precision-engineered UNF/UNC Threaded Hinge Shaft Collar for superior holding power and easy assembly on standard shafts.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Hinge Shaft Collar is a precision-engineered solution for standard UNF/UNC threaded shafts. This high-strength steel collar offers superior holding power over set-screw types, with a smooth bore to prevent shaft damage. Perfect for hostile environments or time-sensitive applications, these exclusive Hinge Collars are easy to assemble, reposition, and disassemble, eliminating fumbling and wasted time. Offered in High Strength style, featuring a clamp screw that remains within the outer diameter.

Product Specifications

Dimensional Attributes Outside Diameter

1.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Threaded Bore Size

1/2-13

Dimensional Attributes Width

0.375 in

Specifications Alloy

1215

Specifications Approximate Weight

0.09 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

4L008FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014529
