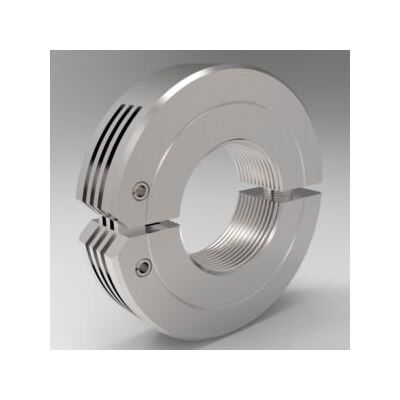

UNF/UNC Threaded Hinge Shaft Collars

Name: UNF/UNC Threaded Hinge Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: THR-9454f4
Price: 29.99 USD
Availability: OutOfStock

SKU:THR-9454f4

Efficient UNF/UNC Threaded Hinge Shaft Collars for secure and hassle-free shaft attachment in any environment.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Hinge Shaft Collars provide superior holding power over traditional set-screw collars. Perfect for fast operations in hostile environments, they offer easy assembly, repositioning, and disassembly without the risk of fumbling or lost screws. Available in both High Strength and Low Profile styles, these collars fit standard UNF (fine thread) or UNC (coarse thread) shafts. With a smooth bore that prevents shaft damage, these collars are designed for efficiency and durability.

Product Specifications

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

3/4-16

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.24 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3S012FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014628

UNF/UNC Threaded Hinge Shaft Collars
