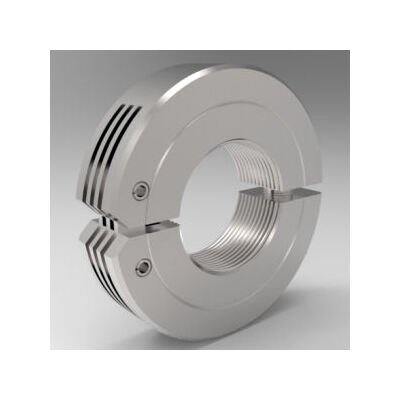

UNF/UNC Threaded Hinge Shaft Collars

Name: UNF/UNC Threaded Hinge Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: THR-2299e9
Price: 29.99 USD
Availability: OutOfStock

SKU:THR-2299e9

Experience superior holding power with UNF/UNC Threaded Hinge Shaft Collars. Quick assembly, strong grip, and compliance ensured.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Hinge Shaft Collars are designed for standard UNF/UNC threaded shafts, offering superior holding power over set-screw collars. Perfect for fast operation in hostile environments, these collars feature Hinge Shaft design for quick and easy assembly without fumbling or loose screws. Available in High Strength and Low Profile styles, they provide the same axial holding power as conventional collars while preventing shaft damage with a smooth bore. Ideal for use on standard round shafts or split hubs, these collars meet rigorous specifications like RoHS2 and REACH compliance.

Product Specifications

Dimensional Attributes Outside Diameter

2.375 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1-3/8-12

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.36 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3S106FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014673

UNF/UNC Threaded Hinge Shaft Collars
