UNF/UNC Threaded Hub Collars

Name: UNF/UNC Threaded Hub Collars
Brand: Stafford Manufacturing Corp.
SKU: ROU-d537b7
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-d537b7

Precision-machined two-piece split clamp-type collars with superior holding power and environmental compliance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

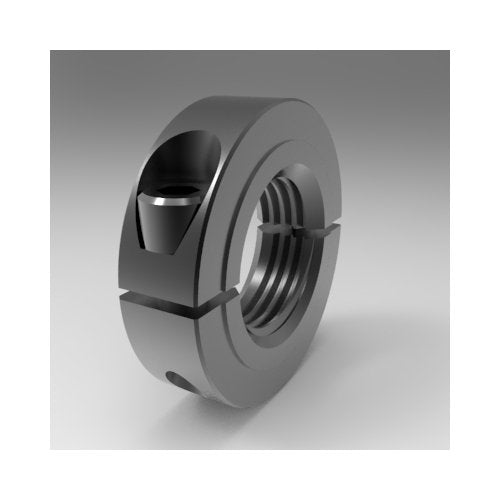

The UNF/UNC Threaded Hub Collars are precision-machined two-piece split clamp-type shaft collars designed to meet the stringent requirements of both consumer and institutional buyers. Featuring a hub on the face to reduce friction, these collars provide superior holding power over traditional set-screw types. Ideal for use as bearing inner-races, they can be easily adjusted and placed anywhere on a shaft. Constructed from high-quality steel, these collars are non-marring, durable, and RoHS2 and REACH compliant, ensuring both performance and environmental responsibility.

Product Specifications

Dimensional Attributes Outside Diameter

2.062 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1-1/4-12

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.29 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L104F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030246

UNF/UNC Threaded Hub Collars
