UNF/UNC Threaded Hub Collars - Two-Piece Split Clamp-Type

Name: UNF/UNC Threaded Hub Collars - Two-Piece Split Clamp-Type
Brand: Stafford Manufacturing Corp.
SKU: ROU-c10a61
Price: 15.99 USD
Availability: OutOfStock

SKU:ROU-c10a61

Precision-machined UNF/UNC Threaded Hub Collars for superior clamping & versatility. RoHS2 & REACH compliant.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

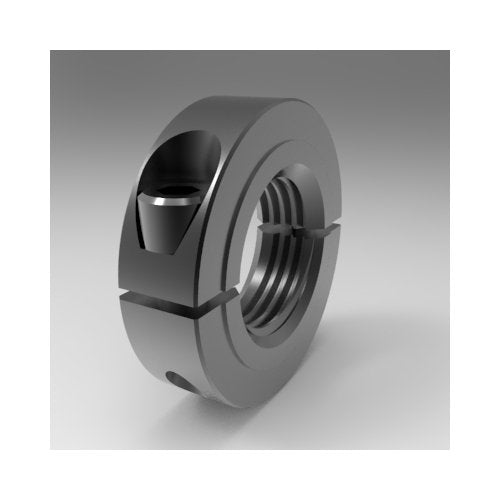

The UNF/UNC Threaded Hub Collars are precision-machined for optimal performance, featuring a hub on the face that reduces contact area, ideal for bearing inner-race applications. Designed for standard UNF shafts, these collars offer superior holding power compared to set-screw collars, with non-marring properties and easy adjustment. With a black oxide finish, low profile design, and high clamping power, they can be disassembled and positioned anywhere on a shaft, offering utmost versatility and reliability. Made of steel, these collars meet RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Outside Diameter

1.313 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

10-32 x 5/8

Dimensional Attributes Threaded Bore Size

5/8-11

Dimensional Attributes Width

0.438 in

Specifications Alloy

1215

Specifications Approximate Weight

0.12 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L010C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030178
