UNF/UNC Threaded One-Piece Split Clamp Shaft Collar - Low Profile Steel
UNF/UNC Threaded One-Piece Split Clamp Shaft Collar - Low Profile Steel
SKU:THR-61d87b
Precision-machined UNF/UNC One-Piece Split Clamp Shaft Collar for secure, non-marring grip on threaded shafts. Low Profile design, high clamping power.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
UNF/UNC Threaded One-Piece Split Clamp Shaft Collar - Low Profile Steel
$9.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Threaded One-Piece Split Clamp Shaft Collar - Low Profile Steel
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

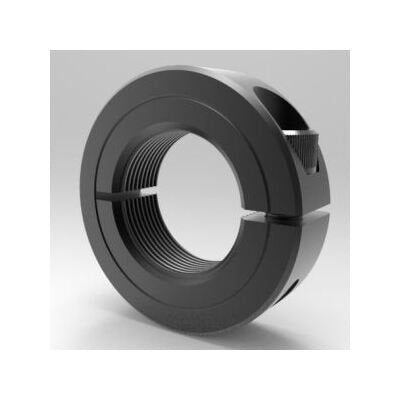

The UNF/UNC Threaded One-Piece Split Clamp Shaft Collar offers superior holding power for standard UNF/UNC threaded shafts. Precision machined from high strength steel alloy with a black oxide finish, this collar ensures non-marring, easy adjustments, and high clamping power. Stocked in Low Profile style, it features a 5/8-18 threaded bore size, 1.313 in outside diameter, and 0.438 in width. This collar is RoHS2 and REACH compliant, ideal for applications requiring reliability and durability.
Product Specifications
Dimensional Attributes Outside Diameter
1.313 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32
Dimensional Attributes Threaded Bore Size
5/8-18
Dimensional Attributes Width
0.438 in
Specifications Alloy
1215
Specifications Approximate Weight
0.12 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
8.75 USD
Specifications Material
Steel
Specifications Part Number
7L010F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786011764
