UNF/UNC Threaded Shaft Collars - High Strength Steel
UNF/UNC Threaded Shaft Collars - High Strength Steel
SKU:THR-ec3015
Precision-machined UNF/UNC Threaded Shaft Collars for secure clamping on standard threaded shafts. High Strength Steel, USA-made, RoHS2 & REACH compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
UNF/UNC Threaded Shaft Collars - High Strength Steel
$12.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Threaded Shaft Collars - High Strength Steel
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

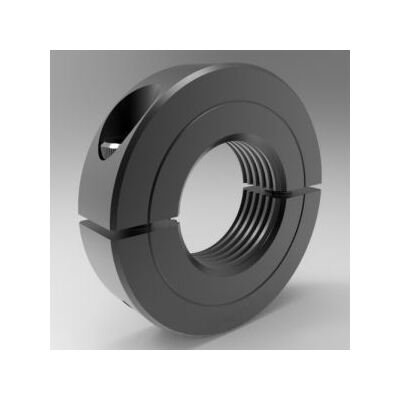

The UNF/UNC Threaded Shaft Collars are precision-machined two-piece split clamp-type collars designed for standard UNF/UNC threaded shafts. Offering superior holding power over set-screw collars, these High Strength Steel collars can be disassembled and adjusted anywhere on a shaft. With a black oxide finish, these collars feature a 1/4-20 threaded bore, 0.813 in outside diameter, and 0.250 in width. The recessed screw design with 4-40 x 3/8 alloy steel screw ensures secure clamping without protrusion, ideal for various applications. Made in the USA, RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
0.813 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40 x 3/8
Dimensional Attributes Threaded Bore Size
1/4-20
Dimensional Attributes Width
0.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.03 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
4L004F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012273
