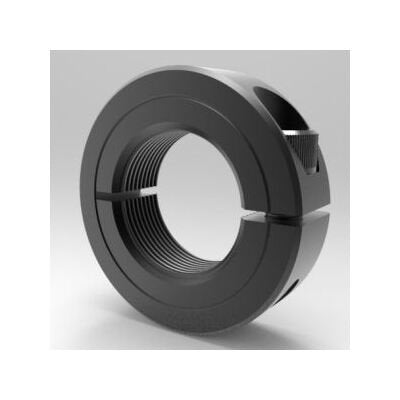

UNF/UNC Threaded Shaft Collars - Low Profile Split Clamp Type
UNF/UNC Threaded Shaft Collars - Low Profile Split Clamp Type
SKU:ROU-8ce474
Precision machined UNF/UNC Threaded Shaft Collars for secure clamping on standard shafts. Low profile design, high-strength steel.
Regular price
$8.44
Regular price
Sale price
$8.44
Unit price
per
Initiate Order
UNF/UNC Threaded Shaft Collars - Low Profile Split Clamp Type
$8.44
Quantity: 1
Claim Your Seller Account
UNF/UNC Threaded Shaft Collars - Low Profile Split Clamp Type
$8.44
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Threaded Shaft Collars feature high-strength construction and superior holding power over set-screw collars. Precision machined from durable steel with a black oxide finish, these collars are designed for easy adjustment and non-marring installation on standard UNF or UNC threaded shafts. Available in a low-profile design, with a 5/16-24 threaded bore size, these collars ensure secure clamping with a 4-40 alloy steel screw. Made in the USA, RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
0.688 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40
Dimensional Attributes Threaded Bore Size
5/16-24
Dimensional Attributes Width
0.313 in
Specifications Alloy
1215
Specifications Approximate Weight
0.02 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
8.44 USD
Specifications Material
Steel
Specifications Part Number
7L005F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786011702
