UNF/UNC Threaded Shaft Collars Split Clamp-Type, 3/8-16 Thread
UNF/UNC Threaded Shaft Collars Split Clamp-Type, 3/8-16 Thread
SKU:ROU-7d67b5
Precision UNF/UNC Threaded Shaft Collars for secure clamping on 3/8-16 threaded shafts. Easy to adjust, non-marring, and RoHS2 compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
UNF/UNC Threaded Shaft Collars Split Clamp-Type, 3/8-16 Thread
$12.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Threaded Shaft Collars Split Clamp-Type, 3/8-16 Thread
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

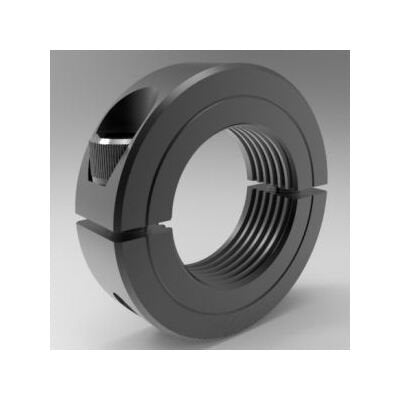

The UNF/UNC Threaded Shaft Collars Two-Piece Split Clamp-Type provide superior clamping power over set-screw collars. Precision machined from high-grade Steel alloy, these collars offer easy adjustment and non-marring installation on UNF/UNC threaded shafts. Stocked in Low Profile style with a black oxide finish, these collars have an outside diameter of 0.875 inches and a width of 0.375 inches. With a recessed screw design and RoHS2 and REACH compliance, they are ideal for various industrial applications.
Product Specifications
Dimensional Attributes Outside Diameter
0.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
6-32 x 3/8
Dimensional Attributes Threaded Bore Size
3/8-16
Dimensional Attributes Width
0.375 in
Specifications Alloy
1215
Specifications Approximate Weight
0.05 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L006C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012693
