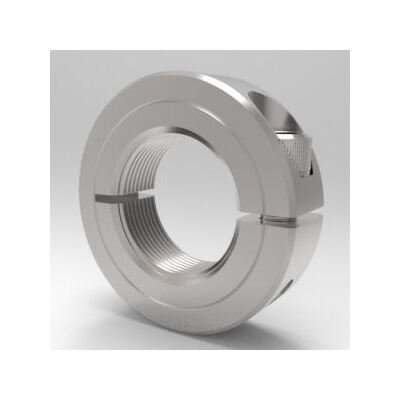

UNF/UNC Threaded Shaft Collars - Stainless Steel Low Profile 10-32 1-Piece Split Clamp

Name: UNF/UNC Threaded Shaft Collars - Stainless Steel Low Profile 10-32 1-Piece Split Clamp
Brand: Stafford Manufacturing Corp.
SKU: THR-a6bae1
Price: 12.99 USD
Availability: OutOfStock

SKU:THR-a6bae1

Precision-engineered UNF/UNC Threaded Shaft Collars in stainless steel with high clamping power. Low profile design for secure grip. RoHS2 and REACH compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Shaft Collars are precision-engineered for standard threaded shafts, ensuring a superior grip over conventional set-screw collars. Crafted from high-strength 303 stainless steel, these one-piece split clamp-type collars feature a low profile design for seamless integration. With easy adjustability and non-marring properties, they offer exceptional clamping power. Available in a 0.625 in outside diameter and 0.313 in width, these collars are RoHS2 and REACH compliant, making them ideal for various applications demanding reliability and precision.

Product Specifications

Dimensional Attributes Outside Diameter

0.625 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

4-40

Dimensional Attributes Threaded Bore Size

10-32

Dimensional Attributes Width

0.313 in

Specifications Alloy

303

Specifications Approximate Weight

0.02 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

7S002F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786011894
