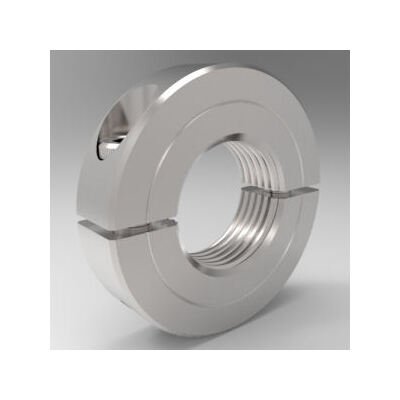

UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp

Name: UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp
Brand: Stafford Manufacturing Corp.
SKU: ROU-3cbbd2
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-3cbbd2

Precision machined UNF/UNC Threaded Shaft Collars with superior clamping force for adjustable shaft locking.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type are precision machined to fit standard UNF/UNC threaded shafts with superior holding power. These collars can be easily repositioned anywhere on the shaft, offering high clamping force over traditional set-screw collars. Available in High Strength and Low Profile styles, these collars come in Steel or Stainless Steel variants. The High Strength model features a non-protruding clamp screw, while the Low Profile type has the clamp screw extending beyond the outside diameter. Perfect for various applications requiring secure shaft locking.

Product Specifications

Dimensional Attributes Outside Diameter

2.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1-14

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.29 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3S100F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786012457

UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp
