UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp

Name: UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp
Brand: Stafford Manufacturing Corp.
SKU: THR-3d6cd4
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-3d6cd4

Precision machined UNF/UNC Threaded Shaft Collars for versatile and secure shaft positioning.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

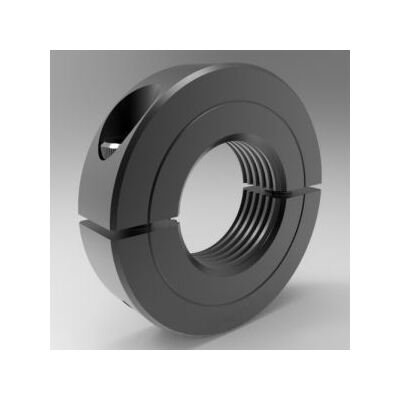

The UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type offer exceptional holding power over traditional set-screw collars. Precision machined from high-strength 1215 alloy steel with a black oxide finish, these collars fit standard UNF (fine thread) or UNC (coarse thread) shafts, providing versatility and ease of adjustment. Available in High Strength and Low Profile styles, these collars are non-marring and can be disassembled for placement anywhere on the shaft. Enhance your machinery with these durable and reliable shaft collars suitable for a variety of applications.

Product Specifications

Dimensional Attributes Outside Diameter

1.875 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

7/8-9

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.27 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

4L014F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786012334

UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp
