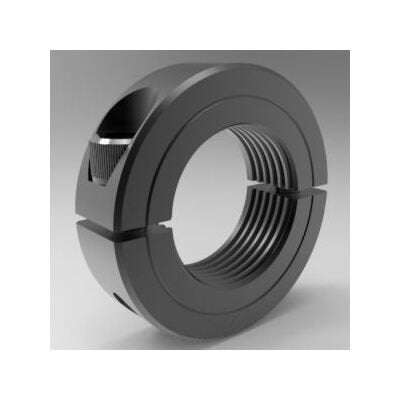

UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type, Low Profile
UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type, Low Profile
SKU:ROU-69890c
Precision UNF/UNC Threaded Shaft Collars for optimal clamping power. Low Profile design, ROHS2 and REACH compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type, Low Profile
$12.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type, Low Profile
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Threaded Shaft Collars ensure a precise fit on standard UNF (fine thread) or UNC (coarse thread) shafts. These 2-Piece Split Clamp-Type collars offer superior clamping power without marring the shaft surface. Available in High Strength and Low Profile styles, the Low Profile variant features a clamp screw that does not protrude, enhancing the collar's sleek design and functionality. Made of high-quality steel with a black oxide finish, these collars are adjustable, easy to install, and ROHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
0.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
6-32 x 3/8
Dimensional Attributes Threaded Bore Size
3/8-24
Dimensional Attributes Width
0.375 in
Specifications Alloy
1215
Specifications Approximate Weight
0.05 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L006F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012709
