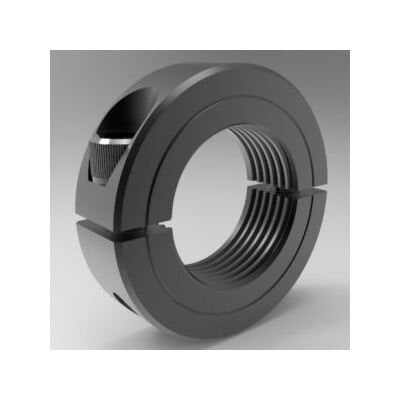

UNF/UNC Threaded Shaft Collars Two-Piece Split Clamp-Type - Low Profile
UNF/UNC Threaded Shaft Collars Two-Piece Split Clamp-Type - Low Profile
SKU:THR-b2b173
Experience precision clamping with UNF/UNC Threaded Shaft Collars - Low Profile design for secure, adjustable hold on threaded shafts.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Precision-engineered for ultimate performance, the UNF/UNC Threaded Shaft Collars Two-Piece Split Clamp-Type in Low Profile style offers superior holding power on standard UNF/UNC threaded shafts. Made of high-quality Steel alloy with a Black Oxide finish, these collars are non-marring, easy to adjust, and provide precise clamping. With a unique design that allows complete disassembly and shaft placement flexibility, they feature a 5/16-18 threaded bore size, 0.688 in outside diameter, and a low profile clamp screw. Ideal for applications requiring reliability and strength, these collars meet RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Outside Diameter
0.688 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40 x 3/8
Dimensional Attributes Threaded Bore Size
5/16-18
Dimensional Attributes Width
0.313 in
Specifications Alloy
1215
Specifications Approximate Weight
0.02 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L005C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012679
