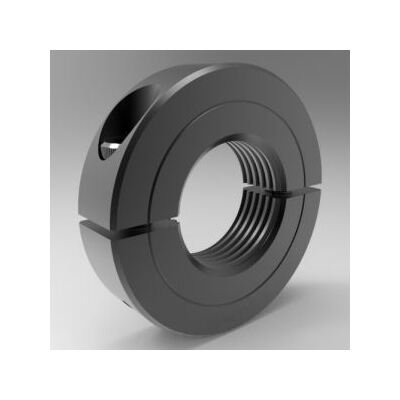

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

SKU:THR-5d9d77

Precision UNF/UNC Threaded Shaft Collar for secure and adjustable shaft clamping. High strength, easy adjustment, non-marring design.

Regular price $15.99
Regular price Sale price $15.99
Sale

Initiate Order

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

$15.99

Quantity: 1

Claim Your Seller Account

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collar is designed to fit standard UNF/UNC threaded shafts, offering superior holding power over set-screw collars. Precision machined and non-marring, these collars can be easily adjusted anywhere on the shaft, providing high clamping power. Available in High Strength and Low Profile styles, with options in Steel or Stainless Steel, ensuring durability and versatility for varied applications.

Product Specifications

Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Threaded Bore Size
3/4-10
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.24 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
4L012F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012327
