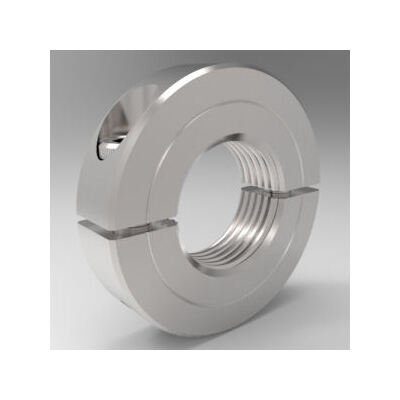

UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collars
UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collars
SKU:THR-3e0339
Precision machined UNF/UNC Threaded Shaft Collars for secure and versatile shaft attachment. High-strength Stainless Steel with adjustable clamp for precision fit.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collars
$27.99
Quantity: 1
Claim Your Seller Account
UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collars
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Two-Piece Split Clamp-Type Threaded Shaft Collars are precision machined from high-strength Stainless Steel, offering superior holding power over set-screw collars. These collars fit standard UNF/UNC threaded shafts, providing versatility and ease of adjustment. Available in both High Strength and Low Profile styles, these collars can be disassembled and repositioned anywhere on a shaft. With non-marring features and a recessed clamp screw, they ensure a secure fit without protruding beyond the OD. Ideal for a range of applications requiring reliable shaft attachment.
Product Specifications
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Threaded Bore Size
1 1/4-12
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.34 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
3S104F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012471
