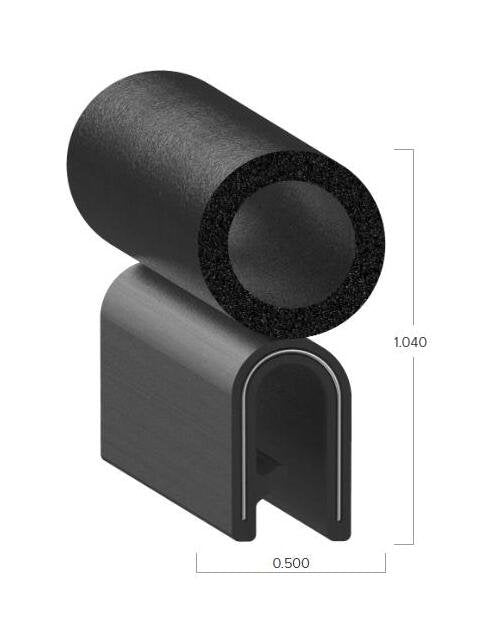

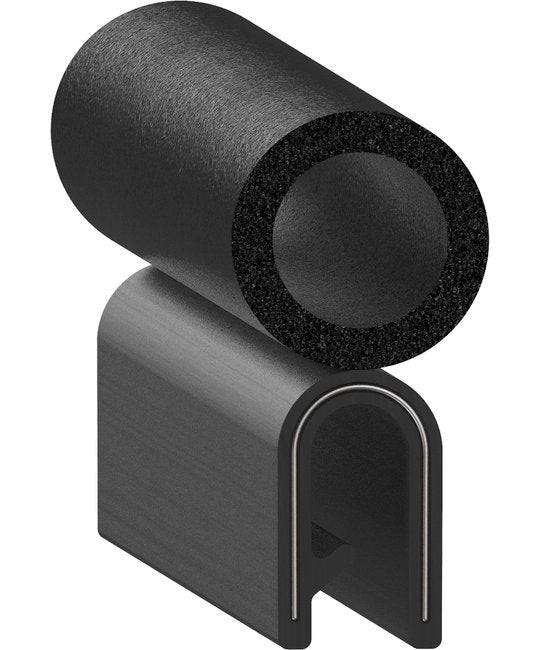

Uni-Grip 0.500 x 1.040 in Bulb Seal
Uni-Grip 0.500 x 1.040 in Bulb Seal
SKU:025-b9b689
Uni-Grip 0.500 x 1.040 in Bulb Seal for superior sealing performance in varied applications.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Uni-Grip 0.500 x 1.040 in Bulb Seal
$15.99
Quantity: 1
Claim Your Seller Account
Uni-Grip 0.500 x 1.040 in Bulb Seal
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Uni-Grip 0.500 x 1.040 in Bulb Seal is a top-quality sealing solution designed for a wide range of applications, from recreational vehicles to agricultural and marine equipment. Made from durable Polyvinyl Chloride (PVC) and rubber materials, this sponge-textured seal offers excellent resistance to ozone, weathering, oils, chemicals, and fuels. With a hardness rating of 2A4 and a sleek black leather grain finish, it provides a secure seal with a flange size of 0.188 in. Choose from various mounting options such as push-on, slide-in pedestal base, or adhesive tape to suit your specific needs. Ensure a perfect fit by selecting a bulb diameter slightly larger than the door jamb dimension, without over-compression. Uni-Grip's round bulb design ensures compatibility with a range of door openings.
Product Specifications
Additional Information Additional Information
Other factors to consider include the bulb's diameter, shape, and location. We suggest a bulb diameter slightly larger than the door jamb dimension, although be careful not to over-compress the seal. We manufacture several mounting options, including a push-on design with internal tongues, a slide-in pedestal base, and different types of adhesive tape. Our bulbs are generally round, although we also manufacture other shapes. Choose a bulb location that has compatibility with the door opening.
Technical Specs Brands
Uni-Grip
Technical Specs Bulb Position
Top
Technical Specs Color
Black
Technical Specs Core
1 in. Stamped Alum in.um
Technical Specs Flange Size
0.188 in
Technical Specs Hardness
2A4
Technical Specs Height
1.040 in
Technical Specs Material
Polyvinyl Chloride (PVC) | Rubber
Technical Specs Mount
Push On
Technical Specs Rubber Type
Sponge
Technical Specs Texture
Leather Grain
Technical Specs Width
0.500 in
