UNI Self-Aligning Pillow Block Bearing, 85-100mm Inner Diameter
UNI Self-Aligning Pillow Block Bearing, 85-100mm Inner Diameter
SKU:UNI-6c340f
High-performance UNI Self-Aligning Pillow Block Bearing for industrial use with 85-100mm inner diameter. Self-aligning and durable design by GGB.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
UNI Self-Aligning Pillow Block Bearing, 85-100mm Inner Diameter
$249.99
Quantity: 1
Claim Your Seller Account
UNI Self-Aligning Pillow Block Bearing, 85-100mm Inner Diameter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

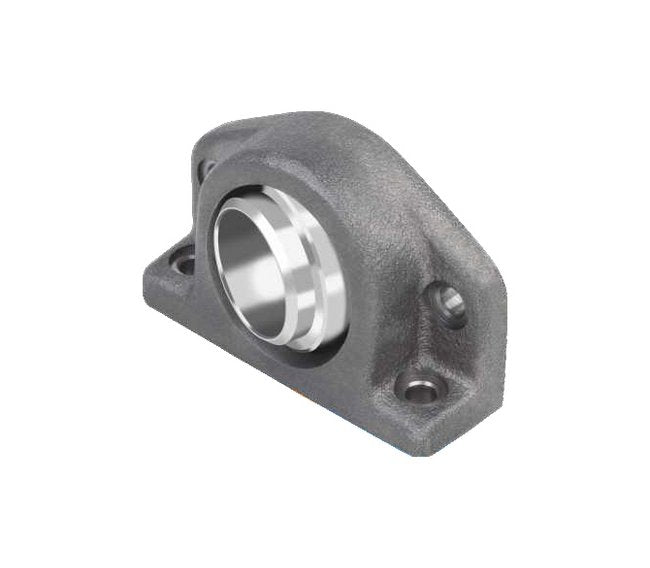

The UNI Self-Aligning Pillow Block Mounted Bearing with Housings is a durable and versatile solution for industrial applications. Designed by GGB, this bearing boasts a bush inner diameter of 85 to 100 mm and can endure maximum radial loads of 125000 N (housing) and 62500 N (bolt). Its self-aligning feature allows for misalignment equalization and edge load prevention. This adjustable bearing, suitable for high loads, is ideal for wind energy plants, car washes, conveyor belts, marine equipment, and more. Made to order, this UNI bearing housing guarantees stability and reliability for demanding applications.
Product Specifications
Applications Applications
Industrial: Wind energy plants, car washes, cleaning machines, drum systems, beveling equipment, handling systems, conveyor belts (pulleys), printing machines, heating and ventilation equipment, hoists, cranes, textile machinery, special machine engineering, bakery equipment, marine equipment.
Availability Availability
Made to order
Characteristics Characteristics
Adjusting bearing for misalignment equalizationAll-purpose as flange or pedestal bearing, suitable for high loadsSelf-aligning spheric avoids edge load to the bearingAdjustable up to ± 5ºSpheric is secured against distortionDepending on choice of housing, spherics and bearings, simple to most demanding bearing solutions are possibleFor optimum design solutions, various bearings from the GGB product program are applicable
Note Note
UNI is a trademark of GGB.The given data for UNI bearing housings are valid for 12.9 screws (DIN EN 20898, part 1), since the housing stability exceeds the permissible load of the fixing screws.
Specifications Bush Inner Diameter
85 to 100 mm
Specifications Features
Self-Aligning
Specifications Maximum Radial Load Bolt
62500 N | 14000 lb
Specifications Maximum Radial Load Housing
125000 N | 28000 lb
Specifications Maximum Shear Off Load Bolt
6000 N | 1300 lb
Specifications Size
5
Specifications Style
Housing | Pillow Block
