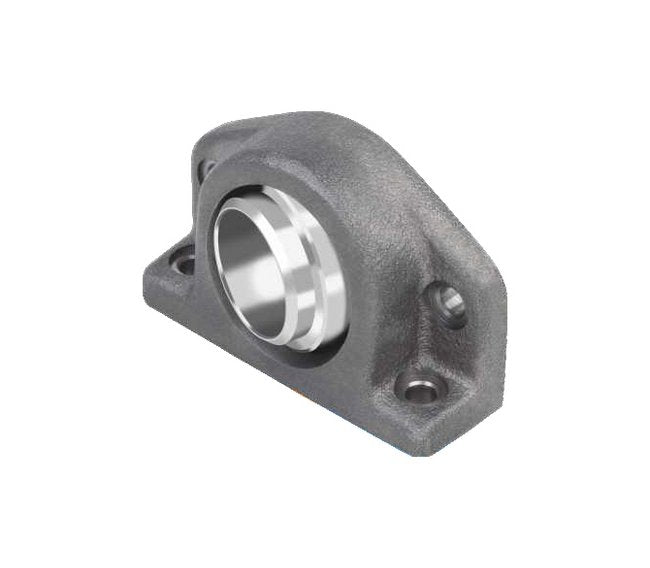

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

UNI-4a0814

High-load industrial bearing with 10-25mm Bush Inner Diameter, self-aligning spheric design, customizable for various applications.

$79.99
$79.99
Sale

Initiate Order

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

$79.99

Quantity: 1

Claim Your Seller Account

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The UNI Self-Aligning Pillow Block Bearing with 10-25mm Bush Inner Diameter is a robust and versatile industrial bearing solution offered by GGB. With a maximum radial load capacity of 20000 N for the housing and 10000 N for the bolt, this bearing is ideal for high-load applications. Its self-aligning feature allows for misalignment equalization up to ± 5º, while the spheric design prevents edge loading. Customizable and made to order, this bearing is suitable for various industrial applications such as wind energy plants, printing machines, and marine equipment. The UNI bearing housings comply with DIN EN 20898 standards, ensuring stability and reliability in demanding environments.

Product Specifications

Applications Applications
Industrial: Wind energy plants, car washes, cleaning machines, drum systems, beveling equipment, handling systems, conveyor belts (pulleys), printing machines, heating and ventilation equipment, hoists, cranes, textile machinery, special machine engineering, bakery equipment, marine equipment.
Availability Availability
Made to order
Characteristics Characteristics
Adjusting bearing for misalignment equalizationAll-purpose as flange or pedestal bearing, suitable for high loadsSelf-aligning spheric avoids edge load to the bearingAdjustable up to ± 5ºSpheric is secured against distortionDepending on choice of housing, spherics and bearings, simple to most demanding bearing solutions are possibleFor optimum design solutions, various bearings from the GGB product program are applicable
Note Note
UNI is a trademark of GGB.The given data for UNI bearing housings are valid for 12.9 screws (DIN EN 20898, part 1), since the housing stability exceeds the permissible load of the fixing screws.
Specifications Bush Inner Diameter
10 to 25 mm
Specifications Features
Self-Aligning
Specifications Maximum Radial Load Bolt
10000 N | 2200 lb
Specifications Maximum Radial Load Housing
20000 N | 4400 lb
Specifications Maximum Shear Off Load Bolt
1000 N | 220 lb
Specifications Size
1
Specifications Style
Housing | Pillow Block
