UNI Self-Aligning Pillow Block Bearing with 65-80mm Inner Diameter
UNI Self-Aligning Pillow Block Bearing with 65-80mm Inner Diameter
SKU:UNI-cd89fe
High-load, self-aligning pillow block bearing for industrial applications. Made to order for precision.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
UNI Self-Aligning Pillow Block Bearing with 65-80mm Inner Diameter
$189.99
Quantity: 1
Claim Your Seller Account
UNI Self-Aligning Pillow Block Bearing with 65-80mm Inner Diameter
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

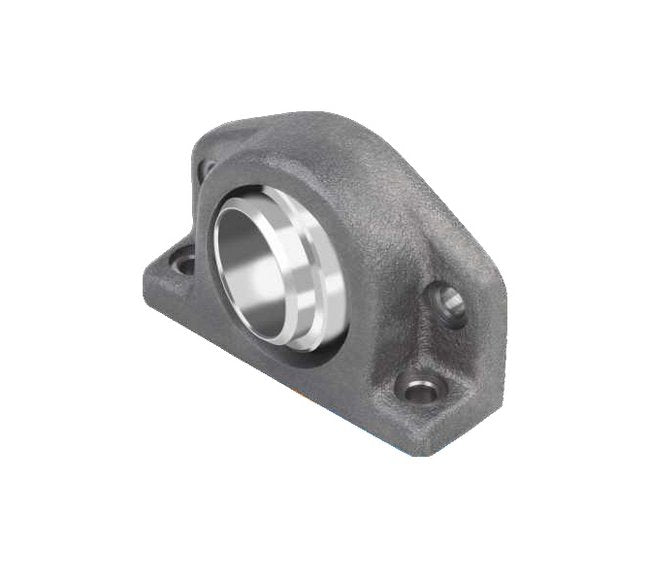

The UNI Self-Aligning Pillow Block Mounted Bearing with Housings offers exceptional industrial performance. With a robust build and self-aligning features, this bearing is designed to handle high loads and misalignments up to ±5º. Suitable for various applications including wind energy plants, hoists, and conveyor belts, these bearings guarantee reliability and durability. Made to order for precise requirements, this GGB-manufactured bearing ensures top-notch performance and easy installation.
Product Specifications
Applications Applications
Industrial: Wind energy plants, car washes, cleaning machines, drum systems, beveling equipment, handling systems, conveyor belts (pulleys), printing machines, heating and ventilation equipment, hoists, cranes, textile machinery, special machine engineering, bakery equipment, marine equipment.
Availability Availability
Made to order
Characteristics Characteristics
Adjusting bearing for misalignment equalizationAll-purpose as flange or pedestal bearing, suitable for high loadsSelf-aligning spheric avoids edge load to the bearingAdjustable up to ± 5ºSpheric is secured against distortionDepending on choice of housing, spherics and bearings, simple to most demanding bearing solutions are possibleFor optimum design solutions, various bearings from the GGB product program are applicable
Note Note
UNI is a trademark of GGB.The given data for UNI bearing housings are valid for 12.9 screws (DIN EN 20898, part 1), since the housing stability exceeds the permissible load of the fixing screws.
Specifications Bush Inner Diameter
65 to 80 mm
Specifications Features
Self-Aligning
Specifications Maximum Radial Load Bolt
45000 N | 10000 lb
Specifications Maximum Radial Load Housing
90000 N | 20100 lb
Specifications Maximum Shear Off Load Bolt
4500 N | 1000 lb
Specifications Size
4
Specifications Style
Housing | Pillow Block
