UNI Self-Aligning Pillow Block Mounted Bearing, 45-60mm Bush Inner Diameter
UNI Self-Aligning Pillow Block Mounted Bearing, 45-60mm Bush Inner Diameter
SKU:UNI-a89cf5
Versatile UNI Self-Aligning Pillow Block Bearing, ideal for high load applications, adjustable design.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
UNI Self-Aligning Pillow Block Mounted Bearing, 45-60mm Bush Inner Diameter
$99.99
Quantity: 1
Claim Your Seller Account
UNI Self-Aligning Pillow Block Mounted Bearing, 45-60mm Bush Inner Diameter
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

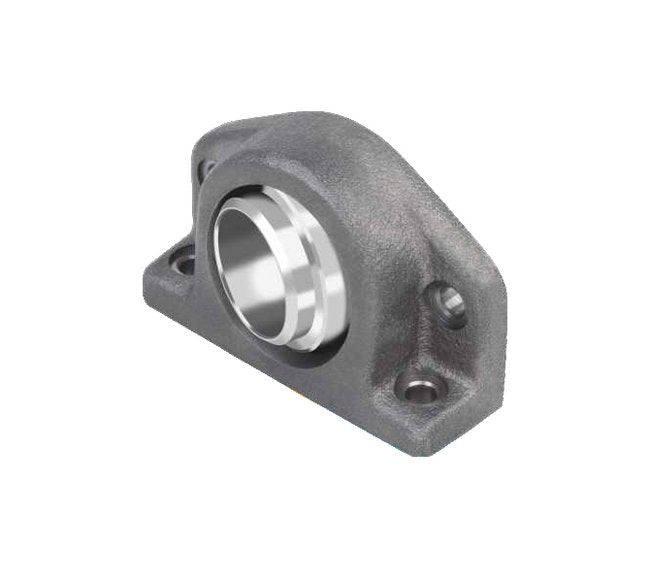

The UNI Self-Aligning Pillow Block Mounted Bearing with Housings offers a versatile solution for industrial applications requiring precise misalignment equalization. Featuring a self-aligning spheric design that minimizes edge load, this bearing can handle high radial loads with ease. Adjustable up to ±5º and secured against distortion, it enables a range of design solutions. Suitable for wind energy plants, conveyor belts, hoists, marine equipment, and more, the UNI bearing surpasses DIN EN 20898 standards for stability and load capacity.
Product Specifications
Applications Applications
Industrial: Wind energy plants, car washes, cleaning machines, drum systems, beveling equipment, handling systems, conveyor belts (pulleys), printing machines, heating and ventilation equipment, hoists, cranes, textile machinery, special machine engineering, bakery equipment, marine equipment.
Availability Availability
Made to order
Characteristics Characteristics
Adjusting bearing for misalignment equalizationAll-purpose as flange or pedestal bearing, suitable for high loadsSelf-aligning spheric avoids edge load to the bearingAdjustable up to ± 5ºSpheric is secured against distortionDepending on choice of housing, spherics and bearings, simple to most demanding bearing solutions are possibleFor optimum design solutions, various bearings from the GGB product program are applicable
Note Note
UNI is a trademark of GGB.The given data for UNI bearing housings are valid for 12.9 screws (DIN EN 20898, part 1), since the housing stability exceeds the permissible load of the fixing screws.
Specifications Bush Inner Diameter
45 to 60 mm
Specifications Features
Self-Aligning
Specifications Maximum Radial Load Bolt
25000 N | 5600 lb
Specifications Maximum Radial Load Housing
50000 N | 11200 lb
Specifications Maximum Shear Off Load Bolt
2500 N | 560 lb
Specifications Size
3
Specifications Style
Housing | Pillow Block
