Uni-Vit⢠3 Inch Beaded Process Coupling
Uni-Vit⢠3 Inch Beaded Process Coupling
SKU:BEA-dfcf0f
Durable 3" Beaded Coupling for Industrial Applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Uni-Vit⢠3 Inch Beaded Process Coupling
$39.99
Quantity: 1
Claim Your Seller Account
Uni-Vit⢠3 Inch Beaded Process Coupling
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Uni-Vit⢠3 Inch Beaded Process Coupling is a top-tier solution for demanding industrial applications. Crafted with precision, the coupling features a sleeve made from Fluoroelastomer ensuring optimal performance up to 250°F continuous and 400°F intermittent service. The sleeve maintains a secure seal even at up to 3° deflection, while the liner, constructed from virgin TFE, adds durability. With a sturdy shell, nut, bolt, and washer all made from 300 series stainless steel, this coupling guarantees exceptional longevity and reliability in diverse operational environments.
Product Specifications
Specifications Bolt Material
300 Series Stainless Steel

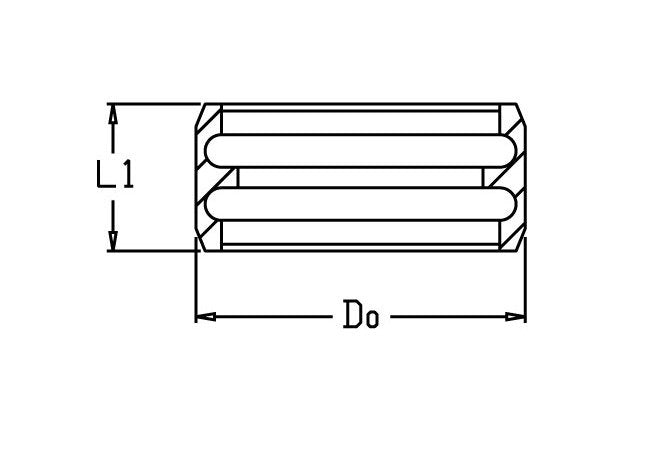

Specifications Dimension L1
1 5/8 in
Specifications Gasket Thickness
3/16 in
Specifications Liner Material
Virgin TFE
Specifications Nut Material
300 Series Stainless Steel
Specifications Outer Diameter D0
4 3/8 in
Specifications Shell Material
300 Series Stainless Steel
Specifications Size
3 in
Specifications Sleeve Material
Fluoroelastomer
Specifications Washer Material
300 Series Stainless Steel
