Uni-Vit⢠Beaded Coupling for High-Temperature Environments
Uni-Vit⢠Beaded Coupling for High-Temperature Environments
SKU:BEA-a28a51
Trust the Uni-Vit⢠Beaded Coupling for superior strength, durability, and high-temperature resilience. Ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Uni-Vit⢠Beaded Coupling for High-Temperature Environments
$29.99
Quantity: 1
Claim Your Seller Account
Uni-Vit⢠Beaded Coupling for High-Temperature Environments
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

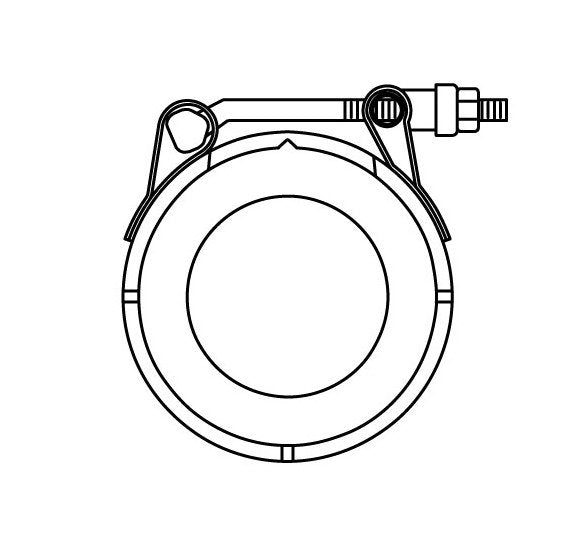

The Uni-Vit⢠Beaded Coupling is an essential component for demanding industrial applications requiring reliability and durability. Crafted with precision, this coupling features a robust construction with components such as 300 series stainless steel shell, nut, bolt, and washer, ensuring exceptional strength and corrosion resistance. The sleeve, made from a specialized Fluoroelastomer, can withstand temperatures up to 250 ºF continuously and 400 ºF intermittently while maintaining a secure seal even at 3º deflection. With a liner crafted from virgin TFE, this coupling guarantees superior performance and longevity in challenging environments.
Product Specifications
Specifications Bolt Material
300 Series Stainless Steel

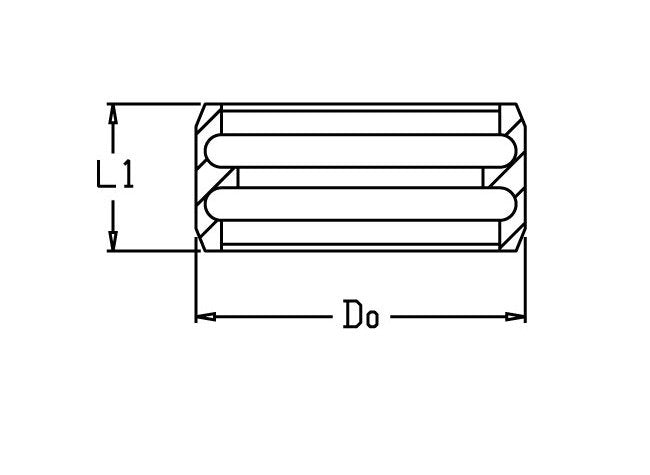

Specifications Dimension L1
1 3/8 in
Specifications Gasket Thickness
3/16 in
Specifications Liner Material
Virgin TFE
Specifications Nut Material
300 Series Stainless Steel
Specifications Outer Diameter D0
2 5/8 in
Specifications Shell Material
300 Series Stainless Steel
Specifications Size
1 1/2 in
Specifications Sleeve Material
Fluoroelastomer
Specifications Washer Material
300 Series Stainless Steel
