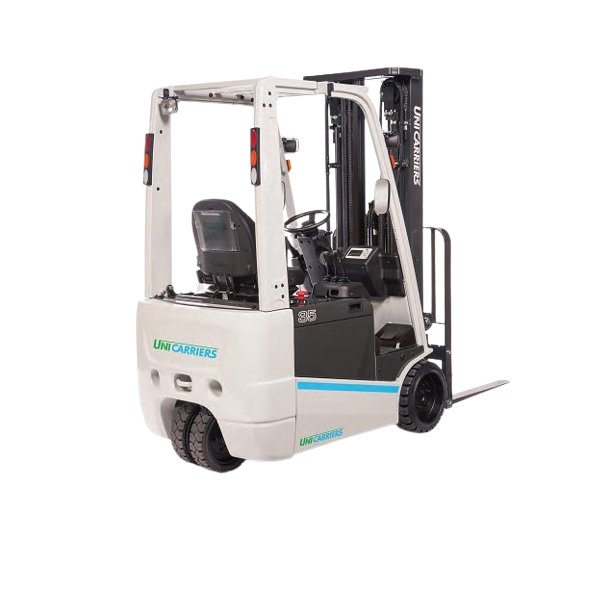

UniCarriers® BX Series 3000 lb Electric Forklift

Name: UniCarriers® BX Series 3000 lb Electric Forklift
Brand: Taylor Northeast
SKU: BXS-baf651
Price: 28999.00 USD
Availability: OutOfStock

SKU:BXS-baf651

The UniCarriers® BX Series 3000 lb Electric Forklift: AC technology, self-diagnostics, adjustable performance modes, and superior comfort.

$28,999.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UniCarriers® BX Series Electric Forklift boasts a 3000 lb load capacity and a tight 77.6in turning radius, making it an ideal choice for both consumer and institutional buyers. With advanced features like AC motor technology, self-diagnostics, and adjustable performance modes, this forklift ensures efficiency and productivity. Enjoy superior comfort with full suspension seating, overhead guard-mounted headlights, and customizable performance settings. Designed for reliability and ease of maintenance, the BX Series lifts your operations to new heights while meeting stringent procurement standards.

Product Specifications

Applications

Greater performance, higher capacity and advanced features make the BX series the choice for demanding applications, including:ManufacturingWarehousingDistributionBottling

Comfort Zone

Work comes first, but there are amenities that make the experience more pleasurable. And happy drivers are statistically more productive.Superior VisibilityA standard high-visibility carriage (Available at no additional cost on model capacities up to 5000 lbs.) and your choice of an Opti-View®, triple stage or wide-view mast - together these features produce clear sightlines for both loading and moving.Our Seat Supports Your Driver and Your ProductivityThe lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride - and it's all standard on BX Series forklifts.Seat and backrest cushions can be individually replaced. Cloth or vinyl available.Improved Control and SecurityManeuverability during reverse driving is easier with an optional secure assist grip. It helps keep the operator's hand inside the compartment where it belongs. A horn button is included.Convenience at Your FingertipsStandard automotive-style controls are located on either side of the steering column for accessibility and intuitive operation.Sideshifting Fork PositionerOptional feature hydraulically positions forks, eliminating the need for manual adjustment by the operator while providing increased productivity.

Control Freak

Maintain ControlWhen operating on inclines, our controlled rollback feature uses regenerative braking to automatically maintain a slow, consistent speed on a ramp or incline when the accelerator pedal is released. This eliminates the need for continuous brake pedal force by the operator.Single Handle Control LeverFaster, easier and more fluid, our single handle control combines both lift and tilt functions for greater productivity. It is standard equipment on the BX Series- and not available from any other forklift brand. Separate control levers are available at no charge.Automotive-Style Parking Brake with WarningAs part of the Operator Presence System, a warning buzzer alerts the driver if he leaves the seat without first setting the brake. Conveniently located, the foot-activated design makes it easy for the operator to quickly depress the pedal to apply the brake. A display indicates when the brake is engaged. Includes a simple hand release.The Ultimate in ControlThe interactive meter panel on the BX provides operators and technicians with a wealth of information through its LCD warnings and readouts. Using the numbered function keys you can program settings, perform maintenance tasks, and access service history.Sensitive to Your Acceleration NeedsWith our exclusive Flex-Logic system, the quicker the accelerator pedal is depressed, the faster our BX Series will respond to your command for speed. This feature is ideal for fast paced operations and where long runs are common. Operators can also maintain a slower acceleration rate by reducing their pedal force when pedestrians are present or in more confined areas of the warehouse. In addition, the operator can adjust the acceleration rate through the meter panel, for even faster or slower response.

Make It Yours

Choose from a variety of options to customize your ride. If you don't see what you need, contact your authorized UniCarriers® dealer for help.Extended Overhead GuardExtension provides protection to mounted components, including onboard computer and headlight (shown).Sideshifting Fork PositionerHydraulic fork adjustment prevents operator strain by eliminating the need to manually move forks for different pallet types for increased productivity.Auto-Tilt Leveling SystemPress the button on the hydraulic control lever to tilt the forks forward to a horizontal position. Used for easier load placement and retrieval operations.Reverse Assist Grip with HornProvides operator control while driving in reverse. Keeps operator's hand securely inside the compartment during operation.High Visibility SeatbeltBright orange seatbelt provides instant visual confirmation that operators are using this safety equipment.Hydraulic Quick DisconnectSimplifies change-out when multiple attachments are used to get your forklift back in operation quicker.Freezer PackageProvides protection in cold storage or freezer environments in temperatures as low as -31ºF (-35ºC). Package includes special hydraulic oil and steel tubing, rubber floor mat and tilt cylinder boots.Steering Wheel Spinner KnobProvides easier operator control and handling.AccumulatorIdeal when handling fragile loads. Feature absorbs shocks transmitted while driving over uneven or cracked floors to make load handling and travel smoother.

Note For Option Availability

Some options may require additional lead time. Consult your local authorized UniCarriers® Dealer for details.BX pneumatic tire models conform to UL583 Type E.BX cushion tire models comply to UL583 Type ES, with optional Type EE compliance. Consult Factory for details.

Optional Option Availability Hydraulic System Optional

Separate lift & tilt control leversAuto-fork levelingAccumulatorExtra tiltQuick disconnect

Optional Option Availability Operator Conveniences Optional

Rearview mirrorsRear combination light package (turn, stop, back-up)Rear work and strobe lightsSecure assist grip with horn buttonSteering wheel with spinner knobMagnetic convenience box

Optional Option Availability Protectionsecurity Optional

Self-adjusting back up alarmOrange seat beltFire extinguisher

Play It Safe

Forward Thinking Back Up AlarmOur back-up alarm provides plenty of notice to pedestrians and other drivers in the area. For applications with varying noise levels, there is an optional self-adjusting alarm that adjusts sound volume based on ambient noise levels.Reverse driving actuates optional blue spotlight to illuminate the floor, for advanced visual warning.'ES' Rating is standard on all BX cushion models, offering extra safeguards to the electrical system. Compare against competitive models that charge extra for this. An optional 'EE' Rating is also available.Safety Doesn't Have to be ComplicatedUnlike the complex systems offered by some competitors, our cushion stability control is simple, extremely effective and zero maintenance - enhanced lateral stability is achieved by a rubber damper placed between the axle and frame.Operator Presence SystemThis comprehensive system includes a seat-actuated power interrupt with mast lock, automatically preventing lift and tilt operations if the operator leaves the seat.The return-to-neutral feature minimizes forklift movement if the operator leaves the truck while still in gear. Other audible and visual warnings come standard, including parking brake warning and seatbelt alarm.Seeing is BelievingCylinders are positioned behind the mast rails resulting in fewer visual obstructions for the operator. Ideal for facilities that transport delicate loads, our optional OptiView® mast makes fork positioning and load handling easier.Password Protected SecurityUsing a PIN code/password entry feature helps assure that only authorized drivers are operating your BX. Up to five unique performance settings can be created, based on application and/or individual operator skill level.

Power And Performance

Highly Responsive, Highly Productive.The BX Series AC power system delivers responsive, precise control for greater productivity throughout the work cycle.Faster acceleration, higher top travel speeds and infinitely variable lift/lower control mean more work is completed, faster.3+1 Performance Modes = Greater ProductivityThe BX Series features adjustable settings to optimize performance based on the application, work environment or operator experience. Choose from the three factory-set modes (shown below) to easily customize your lift truck. The BX also has a manual mode to create unique settings, finely tuned for your operator and operation.Economy Mode (E) - Extended operating hours achieved with only slightly reduced performance.Power Mode (P) - Offers mid-range settings for normal performance needs.High Power Mode (H) - To reach maximum desired performance.Manual Mode (M) - Provides access to create customized performance parameters.Rugged UniCarriers® Designed and Manufactured MastOur mast features rolled steel channels and thick inner rails for increased capacity retention. Side thrust rollers on the fork carriage are easily accessed for carriage adjustment.Tackle the Tough Jobs with BX PneumaticsIn addition to most of the same standard features available on the cushion tire series, pneumatic tire BX trucks have a wider stance and higher under clearance for more rugged applications. Available in eight models, ranging from 3000 to 5000 lbs. lifting capacities. (Includes larger battery compartment models.)Fast Acceleration, Travel and Lift SpeedsUse the high performance setting to reach top speeds and optimize productivity. Program the truck's response time through its Flex-Logic system for quicker acceleration.

Standard Option Availability Batteryelectrical Standard

48 Volt system

Standard Option Availability Brake Standard

Foot-applied parking brake with warning buzzer5-mode regenerative braking

Standard Option Availability Hydraulic System Standard

Single lift/tilt control lever

Standard Option Availability Mast Standard

Seat actuated auto-mast lock systemHigh-visibility carriage (up to 5,000 lbs capacity)

Standard Option Availability Operator Conveniences Standard

Full suspension seat with weight and lumbar adjustmentOverhead guard-mounted headlights

Standard Option Availability Protectionsecurity Standard

Operator Presence System with return-to-neutral & seat-actuated auto-mast lockBack-up warning alarm

Standard Option Availability Vehicle Management Standard

AC TECH motor controller systemInteractive LCD Meter panel with adjustable performance settingsOperator security PIN access3 pre-set performance modes (Economy, Power, High Power)1 Manual (custom) performance modeOn-board diagnostics, self test and coded service historyLow battery Lift Interrupt SystemControlled rollback

Sweet Savings

Our Overhead Guard Reduces Your OverheadBeyond ample headroom, the five-piece overhead guard takes 75% less time to make needed replacements versus competitors' single-piece, welded-on guards. That cuts downtime and costs.Fewer Motors to MaintainThe 100% AC-powered system on the BX features brushless drive and pump motors and a single contactor. The steering system is electronically controlled and powered through the hydraulics, thus eliminating the need for - and added expense of - a separate steering motor.Programmed SavingsProgram the forklift's settings so travel speed is reduced once the driver's foot is removed from the accelerator during operation. This standard deceleration feature draws less energy and extends brake life.Save Precious Battery PowerIndustrial batteries can be a significant part of your operational expenses. The BX incorporates power saving features to optimize battery usage so you can get the most out of your investment.Advanced regenerative technology reclaims power from five different operations, lowering power consumption and reducing component wear through less heat generation - to keep your equipment operating longer, with less time in the charging bay.An auto power-off cuts the electrical system if the forklift sits idle. Select an allowable idle time between 15 and 60 minutes before the vehicle powers down.On-demand power steering system draws battery power only when required.Switchback regenerationFoot brake regenerationAccelerator-off regenerationControlled rollback regenerationLifting/lowering regenerationMinimize Preventable RepairsOperators are more likely to perform regular lift truck inspections if they are easy to do. Access to hydraulic and brake fluids is convenient, making daily checks or required refills simple, so operators can focus on the job ahead.

Technical Specs Brands

UniCarriers®

Technical Specs Load Capacity

3000 lb

Technical Specs Maximum Lift Speed Empty

126.0 fpm

Technical Specs Maximum Lift Speed Loaded

85.7 fpm

Technical Specs Maximum Travel Speed Empty

11.2 mph

Technical Specs Maximum Travel Speed Loaded

9.9 mph

Technical Specs Minimum Outside Turning Radius

77.6 in

Technical Specs Overhead Guard Height

83.5 in

Technical Specs Series

Technical Specs Tires

Pneumatic

Technical Specs Voltage

48 V

Technical Specs Wheelbase

Long

Up Your Uptime

Reliable AC TechnologyThe BX Series is powered by our 100% AC motor and hydraulics systems. With better cooling capacity and greater reliability even in humid environments, AC power delivers more consistent and higher performance throughout the shift on a single battery charge for more uptime and greater productivity.Dependable Drive UnitOur brushless AC induction drive motor has fewer parts to maintain and is perfectly matched to a simple, yet highly efficient, transmission. The result? Greater dependability and higher performance.Reduce Downtime through Self-DiagnosticsIntegrated on-board diagnostics provide immediate truck status. Its intuitive dialogue display combined with accessible service history reduce troubleshooting time, so the unit is back in operation faster. Everything is done through a smart LCD panel.No handset device is needed.Stay CoolBuilt-in thermal sensors help protect the motor and controller systems, promoting more reliable performance. A warning will flash on the LCD screen to advise the operator if overheating has occurred, followed by reduced travel and lift operations. Information is automatically locked into the truck's service history to assist the technician and speed servicing.Simplified Battery Maintenance & ReplacementGas stay assist keeps the hood open nearly 90 degrees making routine battery maintenance and change-outs faster. Optional rollout design (Available on cushion models.) further simplifies battery removal.

UniCarriers® BX Series 3000 lb Electric Forklift
