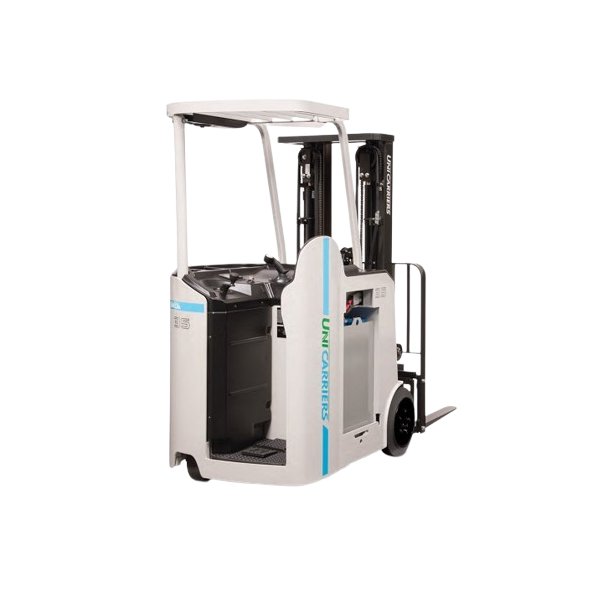

UniCarriers® SCX Series 3000 lb Electric Forklift

Name: UniCarriers® SCX Series 3000 lb Electric Forklift
Brand: Taylor Northeast
SKU: SCX-91ddd7
Price: 18999.99 USD
Availability: OutOfStock

SKU:SCX-91ddd7

UniCarriers® SCX Series - Powerful 3000 lb Electric Forklift for Efficiency & Comfort

$18,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UniCarriers® SCX Series Electric Forklift is a powerhouse designed for exceptional performance and operator comfort. With a 3000 lb load capacity and a range of standard features like AC motor controller system, regenerative braking, and on-demand power steering, this forklift ensures efficiency and productivity. The SCX Series stands out for its reliability, reduced maintenance needs, and extended battery life, making it a cost-effective choice. Ideal for various applications, this forklift is tailored for operators who value performance and comfort.

Product Specifications

Applications

The SCX Series has zero emissions, so it’s good for the environment while it excels in any environment - from freezers, coolers to loading docks in:Food Products CompaniesWarehousing OperationsLight ManufacturingTrucking Operations

Comfort Zone

Take a look at the features we offer, the materials we use and the thought that went into the SCX Series, and you’ll see that we’ve addressed every aspect of operator comfort in designing this highly efficient truck.Plush SurroundingsThe operator compartment features a padded armrest, an extra tall 57" backrest, super thick floor mat and optional kneepad.A Smooth RideUnlike most competitive forklifts, the platform of the SCX is not bolted to the frame, but sits on vibration isolators to absorb shocks.Perfect VisionThe overhead guard is designed with wide canopy channels and an angled crossbar to produce clearer visibility at higher lift heights.Driver-Friendly EnvironmentDesigned for the operator to lean back comfortably, the floor is angled for optimum foot position, and two large cut-outs accommodate bigger boot sizes. The truck is designed for side stance operation and maximum driver comfort while traveling in either forward or reverse.Ergo DesignShaped with an angled grip for comfortable all-day operation, our joystick is ergonomically designed for comfort and ease-of-use — even with freezer gloves. The low-effort, sealed switches help reduce operator fatigue.Easy EntryThe SCX has the shortest step height in the industry at just 8.4" —and along with a wide compartment entry, it is the ideal design for operators who are constantly getting on and off the truck throughout their shifts.

Control Freak

Whether it’s restricting access to the trucks, regulating the speed at which they travel or limiting operating costs, SCX Series forklifts provide you with the control you need to manage your operation easily, effectively and completely.The Ultimate In ControlThrough the meter panel, you can:Control access through individual PIN codesCustomize performance settings to individual operatorsSet speed/acceleration parametersSelect the optimal performance modeAnd gain access to a wealth of vital information to manage your operation including: error codes; operating hours; service history; truck status; and diagnostics.Putting Power in Your HandsErgonomically designed and intuitive to operate, the multi-function control handle offers simultaneous control of drive, lift-and-lower, horn and auxiliary hydraulic functions.Turn ControlFor exceptional maneuverability, the inner wheel counter rotates, and travel speed and acceleration are restricted while turning.

Make It Yours

Unlike competitive brands, UniCarriers® trucks come standard with the most essential and popular features and accessories. In addition, we offer a complete menu of additional options that allow you to customize your forklift to fit your specific workplace environment, operations and business objectives. On these pages, you’ll find available options that are both innovative and economical - but it’s only a portion of what we offer. So if you don’t see what you’re looking for here, call your authorized dealer for more options.Fan & Lighting PackageFan and compartment light are mounted on the overhead guard canopy for operator comfort and convenience.Fire Extinguisher2.5 lb. ABC type - mounts within easy reach of the operator.Cushioned Knee PadProvides greater operator comfort, especially during long work shifts.Battery Gate Interlock SwitchPrevents truck travel if the battery gates are not installed correctly. Operator is notified through an error code on the meter panel.Side ShifterOperators will experience greater efficiency due to fewer required moves when storing and retrieving loads. Integral or hang-on designs available.Tilt Cylinder BootsAdded protection against condensation, dirt and dust.High Visibility CarriageOffers 38% increased vertical open space between the carriage bars for enhanced visibility.Lower Overhead GuardLow 83.3" profile for more confined, height-restricted areas. Other heights available.Freezer PackageFor operating in environments as low as -22ºF (-30ºC) - includes special hydraulic oil and tilt cylinder boots.

Optional Option Availability Batteryelectrical Optional

Battery gate interlock switch

Optional Option Availability Operator Conveniences Optional

Reverse steering (forks trailing)Cushioned knee paddingLow overhead guardOverhead guard mounted LED headlightsRear overhead guard mounted LED work lightOperator fan and light package (mounted to overhead guard console)Freezer packageStrobe light

Optional Option Availability Protectionsecurity Optional

Travel alarm (forward, reverse or both)Fire extinguisher

Play It Safe

The SCX Series incorporates the latest technology to improve confidence and security in every aspect of our trucks within your operation.Security and Customized PerformanceUp to five different, customized performance profile settings can be quickly and easily entered through the meter panel. PIN codes help ensure access is only available to authorized operators. Settings may be matched to the skill level of each driver.Auto ParkThere’s no need to set a separate brake because the parking brake is automatically applied when travel speed is at 0 and no directional command has been given - or when power to the truck is removed. A divider bar between the pedals ensures both feet must be in the compartment and the operator is in a safe operating position.Soft ModeTo promote more confident load handling at higher lift heights, the SCX features a "Soft Mode" performance setting for greater control and easier operation. Automatically activated when the mast is raised beyond the first stage (or at approximately 47" for a two-stage mast), this design reduces travel, lift, tilt and sideshift speeds; restricts tilt angle; engages tilt interlock and vertical tilt stop; and reduces regeneration braking.Controlled Rollback with Ramp HoldIf the travel control is returned to neutral while traveling on a ramp, the controller will reduce and stop movement down the slope. When coming to a stop on a ramp, the SCX controller will apply motor torque to maintain position on the slope, until the automatic parking brakes apply.Operator PresenceA standard Operator Presence System requires that both the brake and operator presence pedals are depressed to operate. The SCX offers plenty of room to fit even large work boots comfortably.

Power And Performance

With quick acceleration, fast travel and lift speeds, plus excellent maneuverability and precise control, the SCX Series delivers optimal performance and productivity in a wide range of applications and environments.Smooth MovesSCX forklifts feature a compact wheelbase and two individually controlled AC motors so it can turn within its own footprint for unsurpassed maneuverability.3+1 Performance Modes = Greater ProductivityThe SCX Series features adjustable settings to optimize performance based on the application, work environment or operator experience. Choose from the three factory-set modes (shown below) to easily customize your lift truck. The SCX also has a manual mode to create unique settings, finely tuned for your operator and operation.Economy Mode (E) - Extended operating hours achieved with only slightly reduced performance.Power Mode (P) - Offers mid-range settings for normal performance needs.High-Power Mode (H) - To reach maximum desired performance.Manual Mode (M) - Provides access to customize performance parameters.Highly Tuned PerformanceSpecifically designed for the SCX, the AC motors are matched with a controller that’s tuned to their precise torque and power curves. The result is quick acceleration, higher productivity, low energy consumption and industry-leading travel and lift speeds.SCX forklifts deliver exceptional power and performance producing faster cycle times and more productive operations.Driving ProductivityLarge 18" drive tires provide long wear, exceptional traction and a smooth ride over dock plates, uneven floors and floor joints.Easy HandlingOn-demand power steering with low-input torque, a small steer tiller wheel and tiller knob provide exceptional operator control with minimum effort.

Standard Option Availability Batteryelectrical Standard

Battery compartment rollers and side gatesEmergency power disconnect switchAdjustable auto power offAnti-static ground strap

Standard Option Availability Brake Standard

Electro-magnetic parking brake (automatically applied)4-mode regenerative braking

Standard Option Availability Hydraulic System Standard

On-demand priority hydraulic power steering with tiller control

Standard Option Availability Mast Standard

Auto-mast lock systemHigh visibility carriage

Standard Option Availability Operator Conveniences Standard

Side stance operator compartmentErgonomically sloped floorboard with vibration isolatorsMulti-function control handleForward steering (forks leading)Cushioned floor mat, back and armrest paddingIntegrated clipboard and amenity tray

Standard Option Availability Protectionsecurity Standard

Operator presence system with return-to-neutral & auto mast lockReduced speeds and tilt above free lift

Standard Option Availability Vehicle Management Standard

AC TECH motor controller systemAC dual drive motors and AC hydraulic pump motorInteractive LCD meter panel with adjustable performance settingsOperator security PIN accessControlled rollback3 preset performance modes (Economy, Power, High Power)1 manual (custom) performance modeOn-board diagnostics, self-test and coded service historyLow battery lift interrupt system

Sweet Savings

From reducing energy consumption to minimizing maintenance costs and maximizing productivity, the SCX is designed and built to lower your operating costs and improve your bottom line profitability.Low MaintenanceExtended major service intervals of 1,200 and 2,400 hours mean more uptime with less time, effort and money expended on maintenance.IP65 Rated Sealed ControllersThe controllers are fully sealed to lock out dirt and debris that can harm performance or contaminate internal components. Highly reliable non-contact switches and sensors also reduce maintenance requirements.Fewer Motors to MaintainThe 100% AC-powered system on the SCX features brushless drive and pump motors and a single contactor. The steering system is electronically controlled and powered through the hydraulics, thus eliminating the need for - and added expense of - a separate steering motor.Get the Brake You NeedOur low maintenance brake only needs inspection every 12 months or 2,400 hours.Save Precious Battery PowerIndustrial batteries can be a significant part of your operational expenses. The SCX incorporates power saving features to optimize battery usage so you can get the most out of your investment.Advanced regenerative technology reclaims power from four different operations, lowering power consumption and reducing component wear through less heat generation - to keep your equipment operating longer, with less time in the charging bay.An adjustable auto power-off cuts the electrical system if the forklift sits idle. Select an allowable idle time between 15 and 60 minutes before the vehicle powers down.The on-demand power steering system draws battery power only when required.PluggingOperator PresenceBrake PedalNeutral BrakeBattery RollersFeatures include standard battery rollers - and an optional battery gate warning option.Quick AccessService points are easily accessible through removable top and front panels for speed and ease of maintenance.Quick FixThe modular design of the powertrain speeds and simplifies maintenance. The gearbox and motor can be removed, serviced and replaced as a single unit - without removing the mast.

Technical Specs Battery Compartment Height

32 in

Technical Specs Battery Compartment Length

38.5 in

Technical Specs Battery Compartment Width

18.4 in

Technical Specs Brands

UniCarriers®

Technical Specs Frame

Standard

Technical Specs Length

68.2 in | 1735 mm

Technical Specs Load Capacity

3000 lb

Technical Specs Maximum Battery Capacity 6 Hour Rate

1085 A·h

Technical Specs Maximum Battery Weight

2700 lb

Technical Specs Minimum Battery Weight

2175 lb

Technical Specs Minimum Right Angle Stack

69.1 in | 1755 mm

Technical Specs Series

SCX

Technical Specs Turning Radius

54.5 in | 1385 mm

Technical Specs Voltage

36 V

Technical Specs Wheelbase

43.9 in | 1115 mm

Up Your Uptime

SCX Series stand-up trucks have been specifically designed to use fewer parts, require less scheduled maintenance, provide extended battery life and deliver more consistent power and performance.Our sophisticated CAN-Bus Network continuously monitors operating systems providing smooth operation and continuous diagnostics of all truck components.Reliable AC TechnologyThe SCX Series is powered by our 100% AC motor and hydraulics systems. With better cooling capacity and greater reliability even in humid environments, AC power delivers more consistent and higher performance throughout the shift on a single battery charge for more uptime and greater productivity.Dependable Drive UnitsDependable performance is achieved through the synching of our brushless AC induction motors with a simple, yet effective, transmission design. The result is less complexity, fewer parts and reduced maintenance.Stay CoolBuilt-in thermal sensors help protect the motor and controller systems, promoting more reliable performance. A warning will flash on the LCD screen to advise the operator if overheating has occurred, followed by reduced travel and lift operations. Information is automatically locked into the truck’s service history to assist the technician and speed servicing.Simple EfficiencyThe use of Hall Effect sensors and endcoders in the control handle - plus magnetic reed switches and inductive proximity switches - means no extra wiring of heaters is needed and reduces the effect of dirt and debris on the truck’s operation.Reduced Downtime through On-Board DiagnosticsOn-board diagnostics and forklift service history are available through the LCD meter panel for faster troubleshooting and less downtime. Unlike competitive models, no tablet, laptop or handset tool is needed.
