UniCarriers CF Series 10,000 lb Capacity Engine Powered Forklift
UniCarriers CF Series 10,000 lb Capacity Engine Powered Forklift
SKU:CFS-7944b8
Experience peak productivity with the UniCarriers CF Series Forklift – reliable, efficient, and safety compliant.
Regular price
$32,999.99
Regular price
Sale price
$32,999.99
Unit price
per
Initiate Order
UniCarriers CF Series 10,000 lb Capacity Engine Powered Forklift
$32,999.99
Quantity: 1
Claim Your Seller Account
UniCarriers CF Series 10,000 lb Capacity Engine Powered Forklift
$32,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

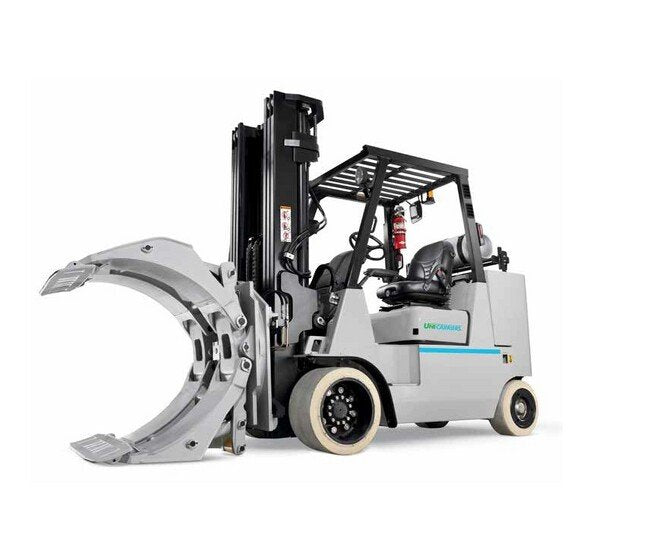

The UniCarriers CF Series Engine Powered Forklift offers exceptional fuel economy and reduced noise levels powered by a V6 engine. With a compact turning radius and high lift heights, this forklift ensures flexibility and efficiency in stacking operations up to the third level. Featuring a host of safety features, comfort-enhancing elements, and high-performance specs, this forklift is designed to maximize productivity, reliability, and operator comfort.
Product Specifications
Applications
At the core of the UniCarriers® CF100-CF155 series is a tough PSI 4X 4.3 liter V6 EPA compliant engine. Each forklift is built for performing different jobs throughout various applications. Whether you need to off load trailers or move goods in and out of racking, our lift trucks are highly configurable and flexible. This gives you practical options and attachments to enhance the truck's agility for your specific business needs.Paper and allied productsPrimary and fabricated metalsLumber and buildingManufacturingGeneral warehouse and storage
Characteristics Capacity At Load Center
24 in | 600 mm
Characteristics Capacity At Rated Load Center
10,000 lb | 4,500 kg
Characteristics Power
Liquefied Petroleum (LP) Gas
Chassis And Wheels Front Tire Size Standard
22 x 9 x 16 in
Chassis And Wheels Front Tread Width Standard Tires
37.0 in | 940 mm
Chassis And Wheels Front Tread Width Wide Stance Tires
40.9 in | 1,040 mm
Chassis And Wheels Rear Tire Size
18 x 7 x 12.1 in
Chassis And Wheels Rear Tread Width Standard Tires
38.6 in | 980 mm

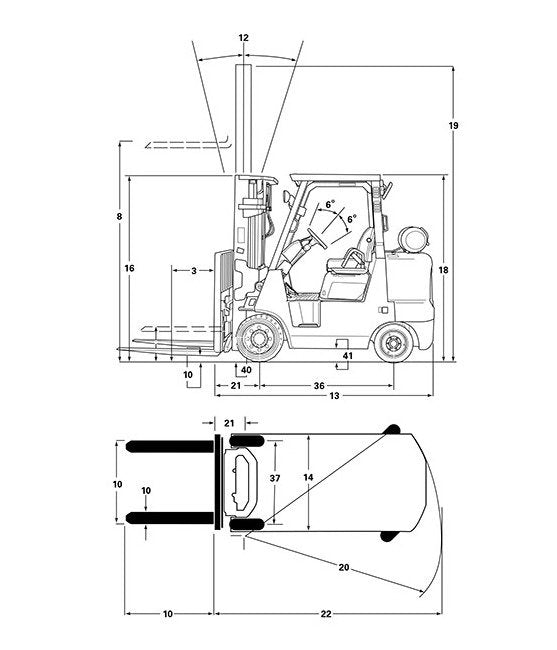

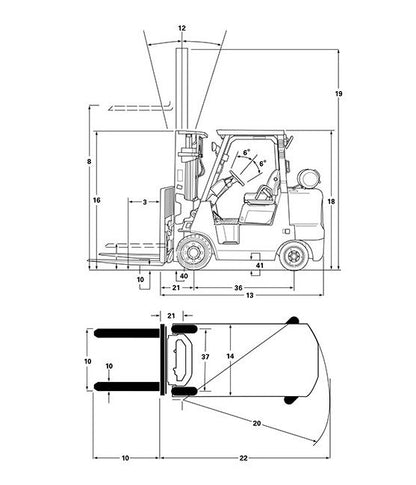

Dimensions Backward Tilt
10 º
Dimensions Fork Length
2.0 in | 50 mm
Dimensions Fork Thickness
5.9 in | 150 mm
Dimensions Fork Width
48.0 in | 1,220 mm
Dimensions Forward Tilt
5 º
Dimensions Free Fork Height
5.9 in | 150 mm
Dimensions Front Overhang
18.3 in | 465 mm
Dimensions Height To Top Of Overhead Guard
86.8 in | 2,205 mm
Dimensions Height With Lowered Mast
83.5 in | 2,120 mm
Dimensions Height With Mast Extended
161 in | 4,090 mm
Dimensions Length To Fork Face
103 in | 2,620 mm
Dimensions Maximum Fork Height
114 in | 2,890 mm
Dimensions Minimum Aisle 90 Degree Stack Zero Clearance Without
110 in | 2,805 mm
Dimensions Minimum Outside Turning Radius
92.1 in | 2340 mm
Dimensions Out To Out Maximum Fork Spacing
41.0 in | 1,042 mm
Dimensions Out To Out Minimum Fork Spacing
3.5 in | 342 mm
Dimensions Overall Width With Standard Tires
46.5 in | 1,180 mm
Dimensions Overall Width With Standard Tires Wide Stance
50.0 in | 1,270 mm
Dimensions Seat Height
47.2 in | 1200 mm
Powertrain Continuous Output At 2600 Revolutions Per Minute Rpm
104.6 hp | 78.0 kW
Powertrain Displacement 6 Cylinders
262 in³ | 4.3 L
Powertrain Engine Model
PSI 4X
Powertrain Equivalent Noise Level Mean Value At Operators Ear
83.5 dBA
Powertrain Maximum Torque At 1000 Revolutions Per Minute Rpm Soc
210 lb·ft | 285 N·m
Powertrain Number Of Speeds Forward
1
Powertrain Number Of Speeds Reverse
1
Powertrain Relief Pressure For 3 Way Valve Attachments
2,900 psi | 200 bar
Powertrain Relief Pressure For 4 Way Valve Attachments
2,350 psi | 162 bar
Powertrain Transmission Type
Powershift
Power And Performance
Delivering Performance Through Fuel EfficiencyCombined with lift capacities of 10,000 - 15,500 lbs. and a powerful V6 EPA-compliant engine, our Uncarriers lift truck series gives you:Improved fuel efficiencyPerformance you can trustLow noise and vibration levelsPower acceleration with controlMaximum productivity from start to finish
Technical Specs Brands
UniCarriers®
