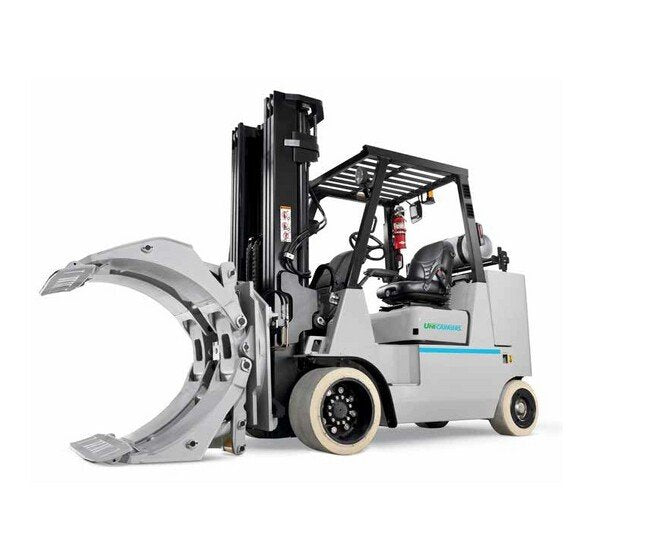

UniCarriers CF Series 15,500 lb Capacity Engine Powered Forklift
UniCarriers CF Series 15,500 lb Capacity Engine Powered Forklift
SKU:CFS-8af83f
Experience power and reliability with UniCarriers CF Series Forklift. Maximize efficiency and flexibility with exceptional fuel economy and enhanced maneuverability.
Regular price
$42,999.00
Regular price
Sale price
$42,999.00
Unit price
per
Initiate Order
UniCarriers CF Series 15,500 lb Capacity Engine Powered Forklift
$42,999.00
Quantity: 1
Claim Your Seller Account
UniCarriers CF Series 15,500 lb Capacity Engine Powered Forklift
$42,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UniCarriers CF Series Engine Powered Forklift is equipped with a powerful V6 EPA/CARB compliant engine, offering exceptional fuel economy, low noise, and vibration levels. Its low-profile counterweight design allows for a compact turning radius, maximizing maneuverability in tight spaces. With a sturdy construction and lift heights suitable for stacking at the third level, this forklift ensures efficiency and flexibility in various applications. Designed with operator comfort and productivity in mind, this forklift combines power, performance, and reliability to meet the demands of industrial environments.
Product Specifications
Applications
At the core of the UniCarriers® CF100-CF155 series is a tough PSI 4X 4.3 liter V6 EPA compliant engine. Each forklift is built for performing different jobs throughout various applications. Whether you need to off load trailers or move goods in and out of racking, our lift trucks are highly configurable and flexible. This gives you practical options and attachments to enhance the truck's agility for your specific business needs.Paper and allied productsPrimary and fabricated metalsLumber and buildingManufacturingGeneral warehouse and storage
Characteristics Capacity At Load Center
24 in | 600 mm
Characteristics Capacity At Rated Load Center
15,500 lb | 7,000 kg
Characteristics Number Of Wheels Front
2x
Characteristics Number Of Wheels Rear
2
Characteristics Power
Liquefied Petroleum (LP) Gas
Chassis And Wheels Front Tire Size Standard
28 x 12 x 22 in
Chassis And Wheels Front Tread Width Wide Stance Tires
44.5 in | 1,130 mm
Chassis And Wheels Rear Tire Size
22 x 8 x 16 in
Chassis And Wheels Rear Tread Width Standard Tires
45.7 in | 1,160 mm

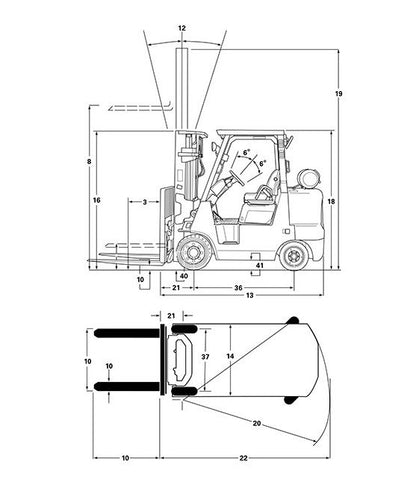

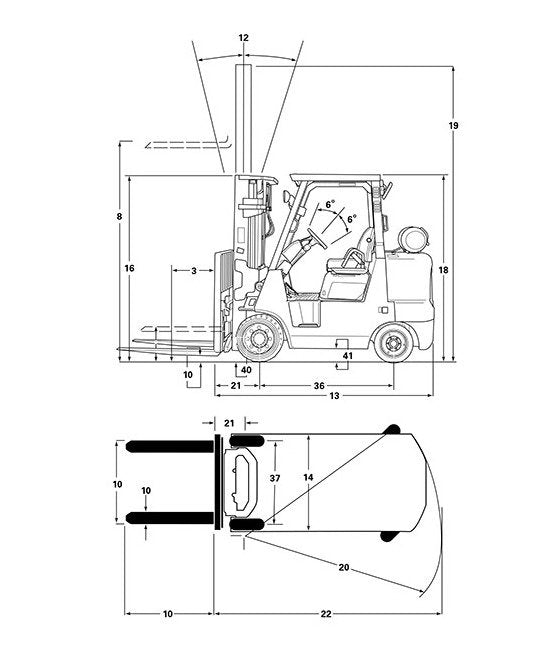

Dimensions Backward Tilt
9 º
Dimensions Fork Length
2.6 in | 65 mm
Dimensions Fork Thickness
5.9 in | 150 mm
Dimensions Fork Width
48.0 in | 1,220 mm
Dimensions Forward Tilt
6 º
Dimensions Free Fork Height
6.5 in | 165 mm
Dimensions Front Overhang
20.9 in | 530 mm
Dimensions Height To Top Of Overhead Guard
88.8 in | 2,255 mm
Dimensions Height With Lowered Mast
84.5 in | 2,150 mm
Dimensions Height With Mast Extended
141.5 in | 3,590 mm
Dimensions Length To Fork Face
116 in | 2,950 mm
Dimensions Maximum Fork Height
93 in | 2,370 mm
Dimensions Minimum Aisle 90 Degree Stack Zero Clearance Without
122 in | 3,100 mm
Dimensions Minimum Outside Turning Radius
101 in | 2570 mm
Dimensions Out To Out Maximum Fork Spacing
47.8 in | 1,214 mm
Dimensions Out To Out Minimum Fork Spacing
16.3 in | 414 mm
Dimensions Overall Width With Standard Tires Wide Stance
56.7 in | 1,440 mm
Dimensions Seat Height
50.6 in | 1,285 mm
Powertrain Continuous Output At 2600 Revolutions Per Minute Rpm
104.6 hp | 78.0 kW
Powertrain Displacement 6 Cylinders
262 in³ | 4.3 L
Powertrain Engine Model
PSI 4X
Powertrain Equivalent Noise Level Mean Value At Operators Ear
83.5 dBA
Powertrain Maximum Torque At 1000 Revolutions Per Minute Rpm Soc
210 lb·ft | 285 N·m
Powertrain Number Of Speeds Forward
2
Powertrain Number Of Speeds Reverse
2
Powertrain Relief Pressure For 3 Way Valve Attachments
2,900 psi | 200 bar
Powertrain Relief Pressure For 4 Way Valve Attachments
2,350 psi | 162 bar
Powertrain Transmission Type
Powershift
Power And Performance
Delivering Performance Through Fuel EfficiencyCombined with lift capacities of 10,000 - 15,500 lbs. and a powerful V6 EPA-compliant engine, our Uncarriers lift truck series gives you:Improved fuel efficiencyPerformance you can trustLow noise and vibration levelsPower acceleration with controlMaximum productivity from start to finish
Technical Specs Brands
UniCarriers®
