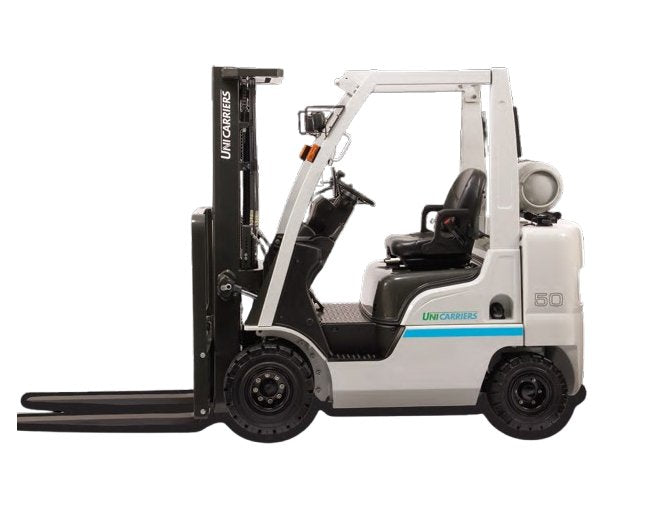

Name: UniCarriers Platinum ll® Pneumatic Forklift - 4000 lb Capacity, Gasoline, 63.0" Wheelbase
Brand: Taylor Northeast
SKU: PLA-ea08c9
Price: 27999.0 USD
Availability: OutOfStock

Applications

Powered by our GTC K21 and K25 engines, the Platinum ll® sets the standard for performance, using less fuel and delivering more cycles per hour in a variety of demanding applications that include:ManufacturingWarehousingRecyclingBeverage/BottlingTrucking

Comfort Zone

Superior VisibilityA standard high-visibility carriage (Available at no additional cost on model capacities up to 5500 lbs.) and your choice of an OptiView®, triple stage or wide-view mast - together these features produce clear sightlines for both loading and moving.Our Seat Supports Your Driver and Your ProductivityThe lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride - and it's all standard on Platinum ll® Series forklifts.Seat and backrest cushions can be individually replaced for enhanced savings.Improved Control and SecurityManeuverability during reverse driving is easier with an optional secure assist grip. And it helps keep the operator's hand inside the compartment where it belongs. A horn button is included.Convenience at Your FingertipsStandard automotive-style controls are located on either side of the steering column for accessibility and intuitive operation.Get a Smoother RidePneumatic tire models are designed with a floating powertrain that includes four independent dampers, to reduce vibrations that can cause operator fatigue.

Control Freak

Single Handle Control LeverFaster, easier and more fluid, our single handle control combines both lift and tilt functions for greater productivity. It's standard equipment on the Platinum ll® Series - and not available from any other forklift brand. Separate control levers are available at no charge.Auto-Tilt Leveling SystemPress the button on the hydraulic control lever to tilt the forks forward to a horizontal position. This option is used for easier load placement and retrieval operations.Parking Brake AlarmAs part of the Operator Presence System, a warning buzzer alerts the driver if he leaves the seat without first setting the parking brake.Make a Positive ImpactA variety of optional impact sensors are available to record each time the forklift comes into contact with a stationary object, allowing you to respond accordingly.Forward Thinking Back-Up AlarmOur standard back-up alarm provides plenty of notice to pedestrians and other drivers in the area. For applications with varying noise levels, there is an optional self-adjusting alarm that adjusts sound volume based on ambient noise levelsFind Your Top Travel Speed EasierWith an optional speed switch, drivers can toggle from a high speed pre-set in one area then select a low speed, confident they are adhering to corporate requirements (Speed pre-sets performed by trained service technician).Select the security key switch option to lock in a pre-set high or low speed (Speed pre-sets performed by trained service technician).Set Travel Speeds Without Losing ProductivityTop travel speed is electronically controlled, so you won't sacrifice lift performance. The great news? No tools are needed to set desired speeds (Speed pre-sets performed by trained service technician).The Ultimate in ControlThe interactive meter panel on the Platinum ll® Series provides operators and technicians with a wealth of information through its LCD warnings and readouts. A visual indicator for its return-to-neutral feature shows the forklift's transmission direction.

Engine Displacement K21 Engine Model

126 in³

Engine Displacement K25 Engine Model

151.8 in³

Engine Engine Models Available

K21 | K25

Engine Fuel Capacity K21 Engine Model

2.1 L

Engine Fuel Capacity K25 Engine Model

2.5 L

Engine Fuel Type

Gasoline

Engine Rated Output Power At 2700 Revolutions Per Minute Rpm Spe

62.9 hp

Engine Rated Torque At 1600 Revolutions Per Minute Rpm Speed K25

138.7 ft·lb

Engine Rated Torque At 2000 Revolutions Per Minute Rpm Speed K21

111.4 ft·lb

Make It Yours

Choose from a variety of options to customize your ride. If you don't see what you need, contact your authorized UniCarriers® dealer for help.Debris Resistance PackageIncludes a belly screen and slotted wheel well inserts to prevent larger debris from entering the engine compartment and affecting key components. For additional protection, select the Recycler Package.Blue LED Pedestrian Awareness LightReverse driving actuates an optional blue spotlight to illuminate the floor, for advanced visual warning.Tilt Cylinder ProtectionCylinder boots and covers provide extra protection against contaminants that can cause premature wear on cylinder packing.Extended Overhead GuardExtension provides protection to mounted components, including on-board computer and headlight (shown).Fingertip ControlsIncrease operator productivity with ergonomic hydraulic controls. Choose single joystick or multiple lever designs.Polycarbonate Overhead Guard CoverPrevents small debris from entering the operator compartment through the overhead guard.Sideshifting Fork PositionerHydraulically positions forks, eliminating the need for manual adjustment by the operator, providing increased productivity.Rear LED Combination LightsPackage includes a reflector, turn signals, brake and back-up lights. Design provides high visibility and vibration resistance for long life and low service costs. Choose vertical or horizontal mounting (shown).Radiator ScreenMinimizes debris entering radiator, resulting in more efficient engine cooling.

Optional Option Availability Hydraulic System Optional

Separate lift & tilt control leversAutomatic fork leveling (Available on select models. Consult factory.)

Optional Option Availability Mast Optional

OptiView® three-stage mast

Optional Option Availability Operator Conveniences Optional

Rearview mirrorsRear LED combination light package (turn, stop, back-up)Rear LED drive lightSecure rear grip with horn button

Optional Option Availability Powertrain Optional

Travel speed control (high/low speed selector)Controlled acceleration (power/economy selector)Radiator screenDiffusion exhaust muffler

Optional Option Availability Protectionsecurity Optional

Seatbelt interlocksUL Safety rating (Available on select models. Consult factory.)Self-adjusting back up alarmFire Extinguisher

Optional Option Availability Vehicle Management Optional

SmoothShift system

Play It Safe

As a leader in clean air engines for nearly a decade, our products have benefited from the knowledge gained through our automotive heritage. Our K21 and K25 industrial engines incorporate an electronic engine control system, using a closed loop design to produce high combustion efficiency with lower and cleaner emission levels. We've also included several security systems as standard, and more options to meet your particular needs.For Even Greater SecuritySeveral options are available for added protection:Seatbelt Interlocks include a variety of choices for restricting forklift operations if the seatbelt is not latched.Fire Extinguisher mounted to the overhead guard pillar, for quick and easy access.Orange Seatbelt is highly visible, making seatbelt usage easier to enforce.LP Safety Rating is UL approved.Operator Presence SystemThis comprehensive system includes a seat-actuated power interrupt with mast-lock, automatically preventing lift and tilt operations if the operator leaves the seat. The return-to-neutral feature minimizes forklift movement if the operator leaves the truck while still in gear. Other audible and visual warnings come standard, including parking brake warning and seatbelt alarm.Safety Doesn't Have to be ComplicatedUnlike the complex systems offered by some competitors, our cushioned stability control is simple, extremely effective and zero maintenance - enhanced lateral stability is achieved by a rubber damper placed between the axle and frame.Seeing is BelievingCylinders are positioned behind the mast rails resulting in fewer visual obstructions for the operator. Ideal for facilities that transport delicate loads, our optional OptiView® mast makes fork positioning and load handling easier.OSHA strictly regulates carbon monoxide (CO) levels in the workplace for good reason.The Platinum ll®'s CO levels are among the lowest in its engine class - three times lower than those of a major competitor based on 2015 certification results from the California Air Resources Board.We achieved these lower and cleaner emission levels through the higher combustion efficiency delivered by our electronic engine control system that incorporates a Vehicle Control Module (VCM), Engine Control Module (ECM) and a 3-way catalytic muffler.

Power And Performance

Operator Efficiency AchievedChoose the optional integral side shifter resulting in fewer moves to store and retrieve loads, while minimizing capacity loss versus hang-on designs.More Power, More EfficientlyAdvanced engine technology makes it possible for our K21 and K25 engines to deliver greater torque at lower RPMs. This is achieved due to a combination of factors, including direct ignition coils connected to each cylinder, a centrally positioned spark plug on the combustion chamber as well as electronic monitoring and control systems. Platinum ll® models also include an atmospheric sensor that delivers enhanced performance in high altitudes.Paired for Maximum PerformanceBuilt to our specifications, the Platinum ll®'s transmission is uniquely designed to optimize the horsepower and torque of our K21 and K25 industrial engines. This proven drivetrain delivers powerful, yet efficient performance.Cleaner Running Engines for Greater PerformanceThe injector valve's powerful opening force aids in conditions where lower quality LP fuel is used. Gas is located under the valve to help reduce possible tar build up on the injectors which can adversely affect performance. A pressure sensor is located between the two injectors.Consistent Performance through Reliable TechnologyThe Platinum ll®'s engine and vehicle control modules along with multifunction display communicate through a reliable CAN-bus network to manage changing system requirements and maintain consistent performance.Built for Rugged DependabilitySolid steer axles and thick steel front fenders provide protection against harsh work environments.The Nomad's standard Power setting allows you to achieve maximum performance - and an annual productivity increase of up to 2500 cycles per truck.Study findings are based on a 1200-hour usageSwitch to the Platinum ll®'s optional Economy mode to get greater fuel efficiency. Independent testing has shown our K21 engines use nearly 11% less fuel compared to competitive models under unloaded conditions. (Results based on 5000 lb. capacity LP cushion tire models in Economy mode.)

Standard Option Availability Brake Standard

Parking brake with warning buzzerParking brake transmission interlock

Standard Option Availability Hydraulic System Standard

Single lift/tilt control lever

Standard Option Availability Mast Standard

Seat actuated auto-mast lock systemHigh-Visibility Carriage (Available on select models. Consult factory.)

Standard Option Availability Operator Conveniences Standard

Full suspension seat with weight & lumbar adjustmentOverhead guard-mounted LED headlights

Standard Option Availability Powertrain Standard

Electronic Engine Control SystemEngine/transmission protection and warning systemFloating powertrain for reduced vibration (pneumatic)Three-way catalytic converterCushioned stability control

Standard Option Availability Protectionsecurity Standard

Operator Presence System with return-to-neutral and auto mast lockBack-up warning alarm

Standard Option Availability Vehicle Management Standard

Vehicle Control Module (VCM)Operator security PIN accessInteractive LCD meter panelOn-board diagnostics and programmable service remindersEngine coolant temperature gaugeOil pressure, transmission fluid and low coolant warning lightsFuel gauge - gas

Sweet Savings

Extra Protection Without Extra ExpenseIn the event of excessive heat or loss in engine oil pressure, our Powertrain Protection System reduces engine RPM for longer engine and drivetrain life. This great feature is standard on models powered by our K21 and K25 engines, versus competitive forklifts requiring a costly add-on.Reduce Tire Wear & Save FuelOur power/economy controlled acceleration feature restricts the acceleration rate to maximize fuel economy and minimize tire spin. Gradual acceleration is also useful when moving fragile loads or operating in confined areas. Three design choices for this option offer increasingly more security against tampering: toggle switch, key switch or set internal parameters to keep this feature activated.Long Life LEDsEverything about the Platinum ll® is designed for longer life and greater savings, including the standard LED headlights that deliver greater visibility while being more economical and cost-effective over the life of the machine.Our Overhead Guard Reduces Your OverheadBeyond ample headroom, the five-piece overhead guard takes 75% less time to make needed replacements versus competitors' single-piece, welded-on guards. That cuts downtime and costs.Save More, Waste LessWith the Platinum ll®'s standard LPMax System nearly every drop of liquid LP is used thanks to its reliable and timely low fuel warning, reducing early tank replacement and saving you money. An average 8-minute (Based on typical traveling operation in unloaded condition. Time interval varies depending upon individual application and usage.) warning means the operator can maximize productivity - instead of lugging an empty tank to the refill station.Extended Service IntervalsThe electronic ignition system means you'll service the Platinum ll® less often because the recommended times between routine maintenance is longer. And you'll spend less time doing it because the critical service points - including fluids, filters and belts - are all readily accessible.Eliminate Spark Plug Wires and Timing AdjustmentsThe engine cylinder timing is individually controlled through an ignition coil at each plug, eliminating associated maintenance. Free from mechanical linkages or aging wires that can cause performance loss, this design delivers better engine efficiency.Other serviceability features:Easy oil filter replacementFast fan belt adjustmentAccessible radiator

Technical Specs Brands

UniCarriers®

Technical Specs Load Capacity

4000 lb

Technical Specs Overall Height

83.5 in

Technical Specs Overall Length No Forks

96.9 in

Technical Specs Overall Width

45.3 in

Technical Specs Series

Platinum ll®

Technical Specs Tire Type

Pneumatic

Technical Specs Turning Radius Outside

83.5 in

Technical Specs Wheelbase

63.0 in

Up Your Uptime

When it comes to keeping your operation up and running, the Platinum ll® Series offers you significant advantages, beginning with a reliable cooling design, service reminders and longer maintenance intervals. Throughout the Platinum ll® you'll find innovative and proven protection and warning systems to help you maximize uptime, while minimizing cost.Longer Preventative Maintenance IntervalsWith the Platinum ll® Series, most major service intervals are only required every 500-600 hours, reducing labor and lowering your up to 600 hoursThe Platinum ll®'s display includes standard warnings like an air cleaner light (if clogging occurs) and low coolant level. You'll find common sense features like these as standard equipment on our forklifts - but not on our competitors'.Easy LP Tank ChangesWith our simplified LP replacement system, an optional bracket swings out 90º, then pulls down to a manageable height, for faster, easier tank replacement. Not available on all models.Keep your starter and battery healthy with a starter interlock. This optional equipment protects the forklift's starting system by restricting repeated attempts to start the engine when the LP system is out of fuel.Defend Against OverheatingOur reliable cooling system includes an electronic engine protection and warning system that monitors radiator fluid and transmission oil temperatures at all times. This system also contains a field-proven bottom bypass design with thermostat to prevent hot spots and prolong engine life. And its large 10-blade fan and aluminum radiator produce effective cross-flow cooling.Reduce Downtime through Self-DiagnosticsIntegrated on-board diagnostics provides immediate truck status. Standard equipment on the Platinum ll® Series, this intuitive dialogue display, combined with accessible service history, reduces troubleshooting time, so the unit is back in operation faster. Everything is done through its smart LCD panel. No handset device is needed.
