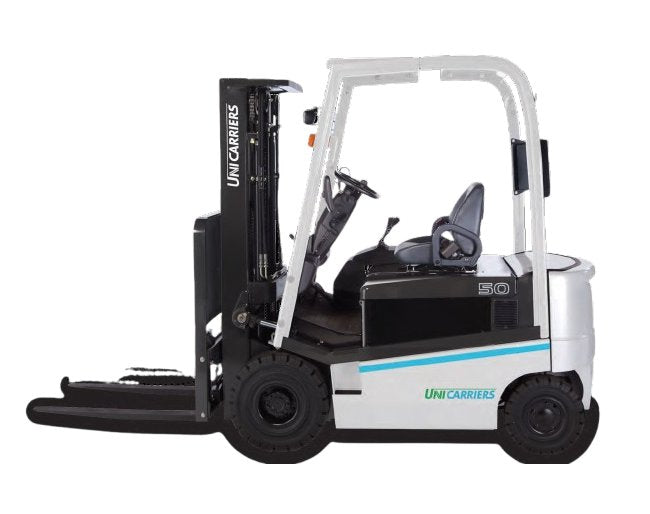

UniCarriers QX Series 4000 lb Electric Forklift with 78.4" Turning Radius

Name: UniCarriers QX Series 4000 lb Electric Forklift with 78.4" Turning Radius
Brand: Taylor Northeast
SKU: QXS-66cfae
Price: 27999.0 USD
Availability: OutOfStock

SKU:QXS-66cfae

UniCarriers QX Series Electric Forklift: Power, Efficiency, and Comfort. Environmentally friendly with 4000 lb capacity & tight turning radius.

$27,999.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UniCarriers QX Series Electric Forklift offers exceptional performance with a 4000 lb load capacity and a tight 78.4" minimum outside turning radius. Designed for efficiency and operator comfort, this forklift features an 80V system, adjustable performance modes, regenerative braking, full suspension seat, and overhead guard-mounted safety features. With innovative systems for uptime optimization, reduced downtime with self-diagnostics, and cost-saving features like power regeneration, this forklift ensures productivity while being environmentally friendly. Ideal for various indoor applications, the QX Series combines power, reliability, and sustainability in one versatile package.

Product Specifications

Applications

Bringing you the performance of an engine-powered truck but with zero emissions, the versatile QX Series is ideal for a wide range of indoor or outdoor applications, including:Food Products CompaniesWarehouse OperationsDistributionManufacturing

Comfort Zone

When it comes to productivity, operator comfort is not a luxury, it’s a necessity. That’s why the QX Series features a spacious compartment with more than 41" of headroom and ergonomic advantages that reduce fatigue, simplify operation, enhance visibility, and allow precise handling. All to drive up the performance of your operators and the profitability of your operation.We Thought of EverythingWhile other forklifts place the battery connector right under the operator’s legs, on the QX it’s positioned under the hood and away from the operator for more legroom. There’s even a rubber floor mat for greater comfort and vibration absorption.Clean, Quiet PerformanceWith its 80-volt motor, the QX Series delivers a quiet ride and zero emissions for a better operator experience, and an improved work environment for everyone in the area.Full Suspension SeatFor enhanced comfort and shock absorption, the QX comes standard with a full suspension seat that features weight and back-angle adjustment as well as a retractable seatbelt and hip restraints. Cloth or optional vinyl seat is available.Sure Footed ControlThe QX Series features an open floorboard area with generous foot room. Plus, switching between the brake and accelerator is easier and safer thanks to our heel-to-toe concept that assures the pedals are at the same height when released.Right at Your FingertipsAn adjustable armrest with electronic fingertip control is available as an option. Choose between a single joystick for simultaneous lift/tilt or a multi-lever design.Auto-tilt leveling system brings the forks horizontal at the touch of a button, enabling quick, easy positioning of the forks for greater efficiency. This option is available with the multi-lever control.In ControlFor precise load handling, the hydraulic controls are ergonomically placed and deck mounted. There is also an automotive-style forward/reverse control lever with integrated auto-return turn signals and headlight switch.Steering You In The Right DirectionThe QX features on-demand electronic power steering for easier, more responsive handling. Plus, the steering column has an infinitely adjustable tilt angle for truly customized comfort.

Control Freak

The QX Series is all about control - it starts with controlling costs and extends to giving operators complete command over their vehicle, their work, their environment, and your facilities. From logically positioned controls to precise, consistent truck movements to detailed information at your fingertips, the QX always puts you and your operators in the driver’s seat.The Ultimate in ControlThe interactive meter panel on the QX provides operators and technicians with a wealth of information through its LCD warnings and readouts. Using the numbered function keys you can program settings, perform maintenance tasks, and access service historyRamp Up the PowerTough applications, including frequent ramp climbing, are no challenge for the QX Series. For maximum control, the QX includes controlled rollback that uses regenerative braking to automatically maintain a slow, consistent speed on a ramp or incline when the accelerator pedal is released, and eliminates the need for continuous brake pedal force by the operator.Password Protected SecurityUsing a PIN code/password entry feature helps assure that only authorized drivers are operating your QX. Up to five unique performance settings can be created, based on application and/or individual operator skill level.Sensitive to Your Acceleration NeedsWith our exclusive Flex-Logic system, the quicker the accelerator pedal is depressed, the faster our QX Series will respond to your command for speed. This feature is ideal for fast paced operations and where long runs are common. Operators can also maintain a slower acceleration rate by reducing their pedal force when pedestrians are present or in more confined areas of the warehouse. In addition, the operator can adjust the acceleration rate through the meter panel, for even faster or slower response.Keep Things on the Straight and NarrowOur optional steering synchronizer uses a sensor that monitors the steering wheel and tire angle so the steering knob is always returned to the same position. This assures accurate and consistent coordination of the steering wheel and tires for precise steering operation.Small Diameter Steering WheelOur small diameter steering wheel features a standard spinner knob to maximize maneuverability and operator confidence.

Make It Yours

Already loaded with standard features, a QX truck can also be customized for your unique applications and needs. You can choose from a variety of performance enhancing options. If you don’t see what you need, contact your authorized UniCarriers® dealer for more options.Lower Overhead GuardDesigned with an 83.7" height design for more confined, height-restricted areas.Fingertip ControlsIncrease operator productivity with ergonomic hydraulic controls. Choose single joystick or multiple lever designs.Blue LED Pedestrian Awareness LightReverse driving actuates an optional blue spotlight to illuminate the floor, for advanced visual warning.SideshifterOperators will experience greater efficiency due to fewer required moves when storing and retrieving loads. Choose from integral or hang-on designs.AccumulatorIdeal with fragile loads. Feature absorbs shocks transmitted while driving over uneven or cracked floors to make load handling and travel smoother.Freezer PackageFor operating in cold storage and freezer environments in temperatures as low as -31O F (-35O C) – includes special hydraulic oil and steel tubing, rubber floor mat and cylinder boots.Polycarbonate Overhead Guard CoverPrevents small debris from entering the operator compartment through the overhead guard.Steering SynchronizerSensor monitors steering wheel and tire angle, adjusting the steering wheel knob for precise turns and steering operation.Higher Steering WheelHigh or low steering columns to enhance operator comfort and productivity.

Note For Option Availability

Some options may require additional lead time. Consult your local authorized UniCarriers® Dealer for details.

Optional Option Availability Hydraulic System Optional

Electronic fingertip control levers (separate lift and tilt or single lever)Auto-fork leveling (Only available with fingertip control option with separate lift and tilt levers. Other restrictions apply.)Accumulator

Optional Option Availability Operator Conveniences Optional

Strobe lightMagnetic convenience boxLow overhead guard (83.7")

Optional Option Availability Protectionsecurity Optional

Self-adjusting back up alarmFire extinguisher

Play It Safe

Safety is everybody’s business, and when it comes to helping you create a safer operation, the QX Series is all business. Throughout a QX, you and your operators will discover innovative technology and essential systems that will help protect your staff, your inventory and your facilities. All without sacrificing performance. It’s a safe bet, you’ll get more out of a QX truck.Greater StabilityThe QX achieves a low center of gravity by placing the battery deeper into the truck. This design advantage results in outstanding stability and balance with greater capacity retention during high lifts.Visibly BetterAll QX Series models are equipped with the following standard features:Overhead guard mounted headlightsSide view mirrorsTurn signalsRear combination turn, stop and back lightsRear work lightOperator Presence SystemThis comprehensive system includes a seat-actuated power interrupt with mast-lock, automatically preventing lift and tilt operations if the operator leaves the seat. The return-to neutral feature minimizes forklift movement if the operator leaves the truck while still in gear. Other audible and visual warnings come standard, including parking brake warning and seatbelt alarm.Forward Thinking Back Up AlarmOur back-up alarm provides plenty of notice to pedestrians and other drivers in the area. For applications with varying noise levels, there is an optional self-adjusting alarm that adjusts sound volume based on ambient noise levels.Parking Brake AlarmAs part of the Operator Presence System, a warning buzzer alerts the driver if he leaves the seat without first setting the parking brake.

Power And Performance

When it comes to lift & travel speeds, the QX Series delivers superior performance, comparable to engine-powered trucks. Thanks to its 80-volt technology it offers all of this power without emissions. And, because of its higher voltage, the QX requires less amperage to complete the same amount of work as 36- or 48-volt designs. So, compare a QX to other brands and you’ll see, there’s simply no comparison.The Power to Lift Your Whole BusinessOur rugged mast features rolled steel channels and thick inner rails for increased capacity retention. The side thrust rollers on the fork carriage are also easily accessible for simpler carriage adjustments.Superior PerformanceFaster lift speeds. Faster travel speeds. We compared the performance of a QX Series truck with its leading competitors, and when it comes to productivity enhancing performance, nothing delivers like a QX truck. That means you can do more - more quickly, more efficiently, and more profitably.3+1 Performance Modes = Greater ProductivityThe QX Series features adjustable settings to optimize performance based on the application, work environment or operator experience. Choose from the three factory-set modes (see below) to easily customize your lift truck. The QX also has a manual mode to create unique settings, finely tuned for your operator and operation.Economy Mode (E) - Extended operating hours achieved with only slightly reduced performance.Power Mode (P) - Offers mid-range settings for normal performance needs.High Power Mode (H) - To reach maximum desired performance.Manual Mode (M) - Provides access to customize performance parametersPowerful Pneumatics to Tackle Your Tough JobsThe QX Series features a wider stance and higher under clearance for applications that have rough ground conditions or flooring, and yet has a small enough turning radius to work in areas where a cushion tire forklift would normally be used.Choose from four models ranging from 4,000 to 6,000 pounds lifting capacities. Larger battery compartment models are available for extended work intervals.Make Fast Work Out of Your WorkThe QX Series 80-volt technology delivers adjustable acceleration and productivity-enhancing speeds comparable to engine-powered trucks. Since the higher voltage system requires less amperage to get the job done, there’s less potential for heat build-up, resulting in longer component life.

Standard Option Availability Batteryelectrical Standard

80 Volt system

Standard Option Availability Brake Standard

Hand-applied parking brake with warning buzzer5-mode regenerative braking

Standard Option Availability Hydraulic System Standard

Deck-mounted control levers

Standard Option Availability Operator Conveniences Standard

Full suspension seat with weight adjustmentOverhead guard-mounted headlightsGlass rearview mirrorsRear combination light package (turn, stop, back-up)Rear work lightSteering wheel with spinner knob

Standard Option Availability Protectionsecurity Standard

Operator Presence System with return-to-neutral & seat-actuated auto-mast lockBack-up warning alarm

Standard Option Availability Vehicle Management Standard

AC TECH motor controller systemInteractive LCD Meter panel with adjustable performance settingsOperator security PIN access3 pre-set performance modes (Economy, Power, High Power)1 Manual (custom) performance modeOn-board diagnostics, self test and coded service historyLow battery Lift Interrupt SystemControlled rollback

Sweet Savings

The QX Series saves you money in all kinds of ways. The positioning of its motors shields them from debris and damage – saving you money. The 80-volt system reduces possible heat build-up for longer component life. Saving you even more money. The AC motor features fewer parts. Saving you money yet again. Wherever you look on a QX, you’ll find money-saving innovations. So, considering how economical a QX is, can you afford not to own one?Save Precious Battery PowerIndustrial batteries can be a significant part of your operational expenses. The QX incorporates power saving features to optimize battery usage so you can get the most out of your investment.Advanced regenerative technology reclaims power from five different operations, lowering power consumption and reducing component wear through less heat generation - to keep your equipment operating longer, with less time in the charging bay.An auto power-off cuts the electrical system if the forklift sits idle. Select an allowable idle time between 15 and 60 minutes before the vehicle powers down.On-demand power steering system draws battery power only when required.Switchback regenerationFoot brake regenerationAccelerator-off regenerationControlled rollback regenerationLifting/lowering regenerationFewer Motors to MaintainThe 100% AC-powered system on the QX features brushless drive and pump motors and a single contactor. The steering system is electronically controlled and powered through the hydraulics, thus eliminating the need for - and added expense of - a separate steering motor.Programmed SavingsProgram the forklift’s settings so travel speed is reduced once the driver’s foot is removed from the accelerator during operation. This standard deceleration feature draws less energy and extends brake life.Our Overhead Guard Reduces Your OverheadBeyond ample headroom, the five-piece overhead guard takes 75% less time to make needed replacements versus most competitors’ single-piece, welded-on guards. That cuts downtime and costs.Extended Maintenance ScheduleWith the QX Series, major maintenance is required only every 1,200 hours. So you spend more time working - not working on - on your trucks.

Technical Specs Battery Compartment Height

31.65 in | 800 mm

Technical Specs Battery Compartment Length

28.18 in | 715 mm

Technical Specs Battery Compartment Width

40.66 in | 1030 mm

Technical Specs Brands

UniCarriers®

Technical Specs Load Capacity

4000 lb

Technical Specs Maximum Battery Capacity

620 A·h

Technical Specs Maximum Lift Speed Loaded

100.4 fpm | 510 mm/s

Technical Specs Maximum Lift Speed Unloaded

127.9 fpm | 650 mm/s

Technical Specs Maximum Travel Speed Loaded

12.7 mph | 20.5 km/h

Technical Specs Maximum Travel Speed Unloaded

13.0 mph | 21.0 km/h

Technical Specs Minimum Battery Capacity

480 A·h

Technical Specs Minimum Outside Turning Radius

78.4 in | 1990 mm

Technical Specs Overhead Guard Height

88 in | 2235 mm

Technical Specs Series

Technical Specs Voltage

80 V

Up Your Uptime

When it comes to keeping your operation up and running, the QX Series offers you significant advantages, beginning with 100% AC-powered, brushless drive and hydraulic motors that feature fewer parts for greater reliability. The QX also cuts downtime nearly in half with major maintenance required only every 1200 hours. Throughout the QX truck you’ll find innovative and proven systems to help you maximize uptime, while minimizing cost.Stay CoolBuilt-in thermal sensors help protect the motor and controller systems, promoting more reliable performance. A warning will flash on the LCD screen to advise the operator if overheating has occurred, followed by reduced travel and lift operations. Information is automatically locked into the truck’s service history to assist the technician and speed servicing.Reduce Downtime through Self-DiagnosticsIntegrated on-board diagnostics provides immediate truck status. Its intuitive dialogue display combined with accessible service history reduce troubleshooting time, so the unit is back in operation faster. Everything is done through a smart LCD panel. No handset device is needed.Dependable Drive UnitOur brushless AC induction drive motor has fewer parts to maintain and is perfectly matched to a simple, yet highly efficient, transmission. The result? Greater dependability and higher performance. The drive motor is also mounted under the floorboard, inside the truck’s frame, for added protection against debris and damage.Solid Pneumatic Tires Keep You RollingThe solid pneumatic tires on the QX are more resistant to wear or damage caused by dock plates or pavement and won’t go flat. Wide drive tires are standard on the 6,000 lb. model, and optional on smaller capacities.
