The UniCarriers SPX Series 6000 lb Center Control Electric Pallet Truck is a robust and efficient material handling solution designed to meet the demanding needs of both commercial and industrial operations. With a rated load capacity of 6000 lb, this walkie/rider pallet truck features innovative technology like an AC drive motor, adjustable tilt steer head, and regenerative braking for enhanced performance and operator comfort. Its ergonomic design and advanced features ensure optimized efficiency, reduced maintenance costs, and increased uptime, making it a reliable choice for various applications.

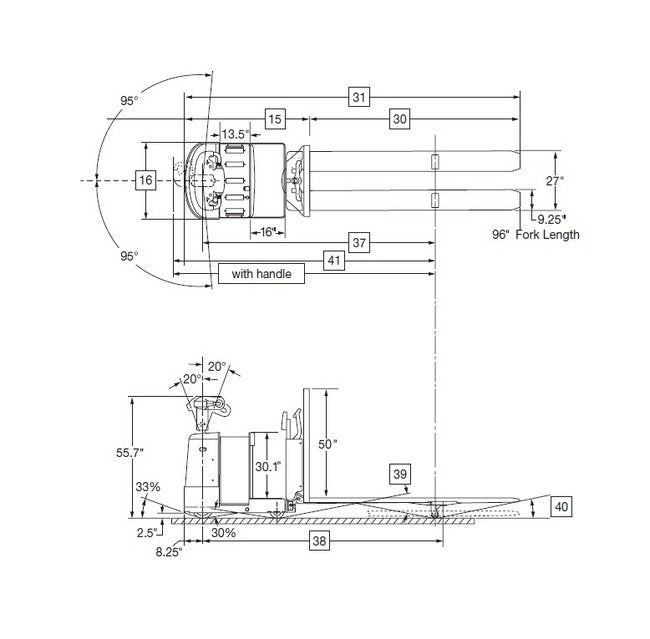

Product Specifications
Additional Information
Ergonomics & ComfortT-style, adjustable steer head combined with cushioned platform and fully padded compartment provide an impressive workplace to achieve maximum operator comfort and reduced fatigue resulting in sustained productivity. The steer head's wide,190º steering arc allows for precise maneuvering in tight spaces with minimal effort.Ergonomic layout of the truck's control head includes rotary-thumb travel speed controls, which can be operated from either side. Ergonomic placement of lift, lower and horn buttons provides intuitive fingertip control. Soft-touch switches also simplify load lifting and lowering.Standard coast control allows operator to let the truck coast for more efficient order picking.Rubber padded, intermediate handrail features thick tubular construction for greater dependability. Large, sealed buttons provide operator with greater control of fork raise/lower and reverse travel commands, as well as horn functions. It's bolted to the truck frame for faster replacement or repair.The SPX is designed with a large operator platform. Combined with a compact hood design, operators have several comfortable positions, to reduce fatigue and promote sustained productivity. Soft, cushioned platform mat provides added comfort.Efficiency & ControlAdvanced motor controller/AC inverter electronically distributes power as needed to the AC drive motor or DC pump motor. System offers programmable regenerative neutral braking and proportional plugging. Its AC design eliminates forward and reverse contactors, with electronic travel speed control for precise, efficient performance.An optional multi-function LCD includes three hour meters and Personal Identification Number (PIN) codes to restrict truck access for greater fleet control. It provides access to customized performance settings and displays a battery discharge indicator with graphic representation of the remaining battery charge. The optional feature also offers on-board diagnostics and troubleshooting without the need for a separate hand tool.Efficient Performance & Greater UptimeHeavy-duty 5.2 Hp, brushless, three phase AC drive motor, provides high power and torque to handle tough applications. Motor delivers peak performance throughout the battery range. Longer run times per battery charge are achieved by using less energy per cycle.SPX includes an IP65 rated sealed controller. Sealed switches and logic boards allow operation in multiple environments including coolers, wet rooms and freezers down to -20 ºF (-28.9 ºC).Digital CAN communication between the controller and control handle uses just four wires in the control handle harness to send multiple signals. Hall Effect speed and acceleration control sensor simplifies maintenance and limits downtime due to its non-contact design with fewer moving parts, and no mechanical wiping action, potentiometers, or heaters. Elimination of directional and lift contactors combined with enhanced thermal capabilities mean optimum performance and minimal downtime.Electrical braking system uses regenerative motor torque prior to disc brake actuation, for less component wear and longer life. The spring-applied/electronically released disc brake system eliminates the need for adjustments. Brake actuation occurs when the handle is in the upper and lower braking range.Rugged Fork AssemblyForks are 9-1/4" wide, constructed from 1/4" plate steel, and designed with a reinforced tip for extra durability. Tapered 1/4" steel fork slides facilitate pallet entry and exit without the use of entry rollers or discs. Various lengths available for both double and single pallet fork options. All come with a standard 27" wide fork spread.Steel push rods are constructed from 1-1/2" x 1-1/2" solid bar stock to absorb high impact shocks caused by dock boards and dock plates and never need replacing. Push-type design achieves full 6" of lift without tie rods extending beyond the fork plane, preventing the possibility of damage and reducing maintenance costs.Tie rods are positively aligned and pinned, so no field adjustments are required. Full-length, angle iron reinforcements enhance strength to reduce torsion, for increased durability and longer life. Each fork extends under the battery box for greater strength.Durable DesignsExclusive articulated frame design with 5-point suspension incorporates drive wheel and swivel caster wheels that are separate from the rear load bearing frame, permitting smooth, independent movement of rear frame and chassis, resulting in easier negotiating over dock plates and uneven floors.The SPX Series is manufactured with a rugged frame for tough applications. Powder coat paint, inside and out, delivers a durable, high gloss, scratch resistant finish. Heavy-duty integrated lift system (DC motor, lift pump and fluid reservoir) includes a check valve and flow regulator. Lift limit switch is not needed since the controller cuts the pump. Return line filtering protects the system against environmental contaminants. A quiet, spiral beveled gear drive system with sealed ball bearings provides solid performance with low steer effort.Lower Operating CostsBrushless AC drive motor uses fewer components and requires less maintenance for lower operating costs. Easily accessible, rotation sensing encoder is externally mounted on the drive motor for simplified replacement. Motor and controller feature thermal protection system to slow or shut down truck in response to high temperatures.Unique steer race and enclosed frame design help keep major components (such as drive motor, controller and hydraulic system) free from debris kicked up by the drive tire for less maintenance and longer life.One-piece cover with two-bolt removal makes access to the drive unit, and major components quick and easy. Five nut removal of the drive tire simplifies replacement when needed. All lubrication fittings are easily accessible with the truck upright and the battery in place.Optional auto-lift feature ensures forks are automatically at maximum lift height during operation, providing ample clearance to reduce pallet and or load carry component damage.Electrical braking system uses regenerative motor torque prior to disc brake actuation, for less component wear and longer life. The spring-applied/electronically released disc brake system eliminates the need for adjustments.
Note
Battery compartment size with optional rollers and side gates: 30.9 x 13.5 x 31.6 (785 x 340 x 800)
Optional Equipment
Multi-function LCD display with:PIN accessSelectable performance modesBDI and speedometerOn-board diagnostics and troubleshootingMagnetic mount convenience tray with stretch wrap holderElectric coast controlFork auto-lift function to 2-1/2" height upon release of lower buttonOn/off toggle switch (Available at no charge.)Fixed steer head (Available at no charge.)Operator compartment knee padBattery compartment rollers with side gatesBattery gate interlock switchesTravel alarmStainless steel axles and linkage pivot pinsVulkollan® load wheelsNon-marking rubber, traction treaded rubber or flat poly drive tire options
Optional Option Availability Battery Roller Option
7.05 in | 180 mm
Standard Equipment
24-volt electrical systemBrushless AC drive motor and DC pump motorElectronic motor controller system with AC inverterDigital CAN-bus communicationsCold storage conditioning to (-20 ºF / -28 ºC)Programmable performance parameters (requires service handset)Adjustable tilt steer head with rotary travel speed and directional controlFingertip control of electronic lift, lower, and horn buttonsElectric coast controlSide trackerOperator compartment paddingLarge operator platform with cushioned matElectric hornMulti-function digital indicatorBattery discharge indicator with lift interruptHour meter gauge: traction, lift, combined traction & liftFault codesOn/off key switchAdjustable battery retainersSB-175 red battery connectorRubber drive tire (10" x 5") with string guardHeavy-duty, poly caster wheels (6" x 3") with string guardsDyalon® "A" load wheels: 3-1/4" x 6" with string guardsRegenerative brakingSpring applied/electronically released brake systemSealed switches and controller for wet, cooler and freezer applicationsReturn oil filter in hydraulic systemMotor and controller thermal protectionPowder-coat paint finish
Technical Specs Alternating Current Ac Voltage
24 V
Technical Specs Brands
UniCarriers®
Technical Specs Caster Wheels Diameter
6 in | 150 mm
Technical Specs Caster Wheels Width
3 in | 75 mm
Technical Specs Chassis Width
35.1 in | 890 mm
Technical Specs Compartment Height
31.6 in | 800 mm
Technical Specs Compartment Length
33.2 in | 840 mm
Technical Specs Compartment Width
13.5 in | 340 mm
Technical Specs Connector Type
SB-175 Red
Technical Specs Drive Tire Diameter
10 in | 255 mm
Technical Specs Drive Tire Width
5 in | 125 mm
Technical Specs Forks Raised Head Length
56.9 in | 1445 mm
Technical Specs Full Load Lift Speed
4.2 seconds
Technical Specs Full Load Lower Speed
4.4 seconds
Technical Specs Full Load Travel Speed
7.2 mph | 11.6 kph
Technical Specs Individual Fork Width
9.25 in | 235 mm
Technical Specs Load Wheels Diameter
3.25 in | 85 mm
Technical Specs Load Wheels Width
6 in | 150 mm
Technical Specs Lowered Position Fork Height
3.25 in | 82.5 mm
Technical Specs Maximum Current Capacity 6 Hours
840 A·h
Technical Specs Maximum Weight
1550 lb | 700 kg
Technical Specs Minimum Weight
855 lb | 390 kg
Technical Specs No Load Lift Speed
3.0 seconds
Technical Specs No Load Lower Speed
4.7 seconds
Technical Specs No Load Travel Speed
9.0 mph | 14.5 kph
Technical Specs Operator Type Stand Up Center Control
Walkie/Rider
Technical Specs Outside Spread Fork Size
27 in | 685 mm
Technical Specs Position B Lead Length
20 in | 508 mm
Technical Specs Raised Position Fork Height
9.25 in | 235 mm
Technical Specs Rated Load Capacity At 24 Inch In 610 Load Cente
6000 lb | 2720 kg
Technical Specs Tire Type Caster Wheels
Poly
Technical Specs Tire Type Drive Tire
Solid Rubber
Technical Specs Tire Type Load Wheels
Dyalon® A Poly
Technical Specs Wheels Drivecasterload
1 Driven/2/2
