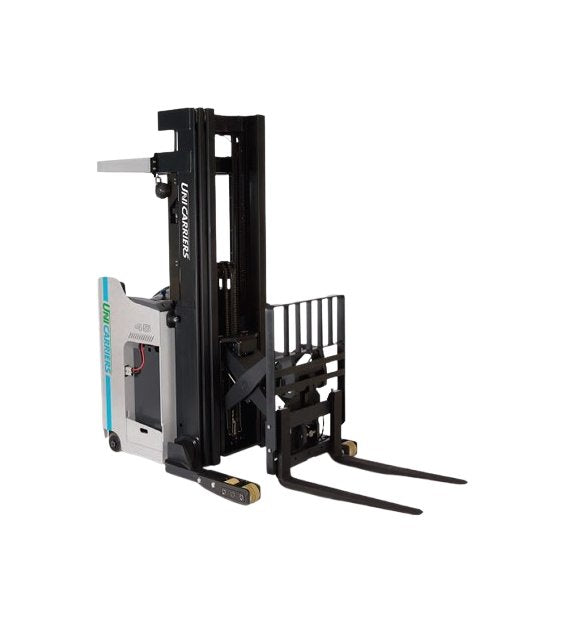

UniCarriers SRX 3500 lb Single Reach Truck

Name: UniCarriers SRX 3500 lb Single Reach Truck
Brand: Taylor Northeast
SKU: SRX-9fd5c3
Price: 18000.0 USD
Availability: OutOfStock

SKU:SRX-9fd5c3

Experience unrivaled efficiency and operator comfort with the UniCarriers SRX 3500 lb Single Reach Truck, ideal for narrow aisle operations.

$18,000.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UniCarriers SRX 3500 lb Single Reach Truck is a high-performance material handling solution designed for efficiency and operator comfort. With a sturdy construction and advanced features like on-demand electronic power steering, adjustable performance settings, and advanced safety systems, the SRX ensures precise control in narrow aisles. Its innovative design promotes uptime with fewer serviceable parts, advanced diagnostics, and energy-saving features. Perfect for various applications including warehouses, distribution centers, and manufacturing facilities.

Product Specifications

Applications

Extraordinary maneuverability, electronic steering and adjustable performance settings combine to make UniCarriers® SRX Series Single and Double Reach Trucks the right choice for any operation where space is ata premium, including:Refrigerated WarehousesGrocery Distribution CentersHome Improvement CentersRetail Department StoresManufacturing

Comfort Zone

When productivity counts, operator comfort is not a luxury. That's why the SRX features a roomy compartment designed to improve the performance of your operators. From smooth, precise controls and an adjustable backrest to minimal vibration, your operators will always be comfortably in control of their reach truck - and any situation that might arise.Plush SurroundingsThe operator compartment features a padded armrest, a 57-1/2" backrest that adjusts up to 6" for a customized fit, plus a thick floor mat and kneepad.Smooth OperatorUnlike most competitive forklifts, the platform of the SRX is not bolted to the frame, but sits on four vibration isolators to absorb shock.Ergo DesignShaped with an angled grip for comfortable all-day operation, our joystick is ergonomically designed for comfort and ease of use - even with freezer gloves. The low-effort, sealed switches also help reduce operator fatigue.Cushioned Reach RetractionTo reduce shocks to the operator and equipment, the SRX has a hydraulically cushioned retract function. The results: smoother operation, more secure handling of loads, and less operator fatigue.Electronic SteeringElectronic controlled steering makes it easy for operators to navigate tight quarters. Steering mode forward or reverse) can be changed by a trained service technician using the meter panel.Low Profile PedalsLow profile pedals offer greater operator comfort and control.A divider separates the two pedals to discourage operators from depressing both pedals with one foot, helping to keep the other foot securely within the compartment while driving.Driver Friendly EnvironmentDesigned for the operator to lean back comfortably, the floor is slightly angled for optimum foot positioning. Side stance operation promotes maximum driver comfort while traveling in forward or reverse.Perfect VisionThe overhead guard is designed with wide canopy channels to produce clearer visibility at higher lift heights.

Control Freak

The command and control features of the SRX give your operators complete control over their vehicle, the loads they transport, and the environment they work in. The SRX also provides you with greater control to manage your operation and costs. Increased productivity, performance and profitability are what drive the SRX.Superior Control in Sight and at HandThe large, bright, backlit LED meter panel provides your operators and technicians with all the information they need to operate and maintain the SRX with greater ease and precision.Speed Sensing Steer ControlWith this standard feature, operators experience a quicker response to their steering commands while the SRX is traveling at a faster rate. This control also allows operators to perform operations using slower, more precise movements when driving at a slower speed, such as negotiating aisles or racking.Hour Meter ReadingsThe display provides 4-mode hour meter readings, including total operating time, drive motor, lift motor, and operator presence pedal.Performance SettingsPerformance settings, such as maximum travel speed while the mast is raised (shown), reach extension speed, and regenerative braking, can be adjusted by a trained service technician.On-Board Self-DiagnosticsThe self-diagnosis display includes flashing icons and alphanumeric codes to warn the operator when errors are detected in the truck's operating system. A technician can also review service history, as well as activate and change service settings without the need for a laptop, tablet or handset tool.Greater Control Right at Your FingertipsThe SRX features our exclusive, ergonomically designed multi-function control handle. Highly intuitive, the handle offers simultaneous control of drive, lift-and-lower, reach-and-retract, horn, and auxiliary functions - all while reducing operator stress and fatigue.Anti-Roll Back ProtectionIf the travel control is returned to neutral while traveling on a ramp, the controller will reduce and stop movement down the slope. When coming to a stop on a ramp, the SRX controller will apply motor torque to maintain position on the slope, until the automatic parking brake applies.

Make It Yours

Since each narrow aisle application is unique, the SRX can be customized in a variety of ways, including lift heights, outrigger design, fork lengths, load wheel options, side shifter, and even load wheel box tips. You can also choose from a wide array of performance enhancing options to tailor the SRX to your specific requirements. If you don't see what you need, contact your authorized UniCarriers® dealer for more options.Digital Fork Height IndicatorFork height is displayed on the meter panel, giving operators confidence while working in areas with high racking.Automatic Fork Height SelectorSave valuable time during storage and retrieval with six different rack height stop settings.UL "EE" RatingAvailable on 16.4" battery compartment models, includes enclosed motors, cover over main contactor and key locked battery compartment doors.Integral SideshifterOperators will experience greater efficiency due to fewer required moves when storing or retrieving loads.Travel AlarmsIdeal for increased awareness. Provides additional security in busy operations.Freezer PackageFor operating environments as low as -20ºF (-29ºC) - includes special hydraulic oil.Lighting PackageFan and compartment light are mounted on the overhead guard canopy for greater comfort and convenience.Variety of Outrigger TipsSelect from box end (shown) or tapered tips for easier access and less load jarring during straddle-type entry - a popular choice for double reach trucks.LED Work LightsOverhead guard-mounted front or rear LED work lights offer greater visibility. Strobes bring added security to your operation.

Optional Option Availability Chassis And Mast Optional

U.L. "EE" rating (with 16.4" battery box only)Freezer Package (32ºF/0ºC to -20ºF/-29ºC)

Optional Option Availability Hydraulic System Optional

Integral sideshifter

Optional Option Availability Operator Conveniences Optional

Wire mesh mast guardOperator fan and lightFront or rear LED work lightsTravel alarmStrobe lights

Optional Option Availability Outriggers Optional

10.5" x 4" single load wheels5" x 3" tandem narrow load wheels4" x 3" tandem low profile load wheelsTapered outrigger tips (load wheel guard)

Optional Option Availability Steering System Optional

Reverse steering

Optional Option Availability Vehicle Management Optional

Digital fork height indicatorAutomatic fork height selector (includes digital fork height indicator)

Play It Safe

Safety is everybody's business and the SRX is designed to help you bring greater security to your operators, your inventory, and your facilities. Through innovative technology and essential systems, the SRX gives your operators maximum control and confidence as they navigate narrow aisles and help steer your business in the right direction.Surrounding Your Operator with Greater SecurityTo help safeguard your operator, the SRX includes a host of advanced features:Return-To-Neutral - system is engaged if presence or brake pedals are released, and before resuming travel; prevents unintended movement at start upLift Control - restricts lift speeds at faster travel speedsHigh Mast Travel Speed Control - restricts the maximum speed when the mast is above free-liftPower Disconnect Switch - shuts off battery power (to be used only in emergencies)SRX offers advanced anti-rollback protection, ideal for minimizing push-back when placing loads.Operator Presence SystemTo keep your operator and other staff secure, the SRX features an auto- mast lock that disables the hydraulic function if the presence pedal is not depressed. Plus, if the brake pedal is released, the vehicle will quickly slow down and stop - an essential feature in the event of an emergency.Digital Fork Height IndicatorUsing this optional system, the fork height is displayed on the meter panel, giving operators a confidence boost while working areas with high racking.Automatic Fork Height SelectorThis optional feature helps operators move loads with greater efficiency. Invaluable during storage and retrieval operations, the selector offers six different rack height settings, with loaded (or unloaded) fork height stops. The Digital Fork Height Indicator is included.Visibility of a Higher DegreeThe SRX Series 90º side stance was determined by overwhelming operator preference. As taller loads have become more common, operators frequently travel in reverse for better visibility. Side stance offers operators a simple way to adjust their view without having to reposition their bodies, thus maintaining critical control of all operating functions.Auto Park Prevents Unintended Vehicle MovementThere's no need to set a separate brake with the SRX. The parking brake is automatically applied when the truck comes to a complete stop.The pedals also feature a divider that separates the pedals, assuring that both feet must be in the compartment and the operator is in a safe operating position.

Power And Performance

When it comes to high performance in narrow aisle applications, the SRX delivers. Beyond fast travel, lift and reach/retract speeds, the SRX features durable construction that allows your operators to master any task, moving loads quickly with greater precision. The SRX is designed to get your business moving, and keep it moving in the right direction.Superior Performance Up and Down Your AislesSpecifically designed for the SRX, the AC motors are matched with a controller that's tuned to their precise torque and power curves. The result is quick acceleration, higher productivity, low energy consumption, and fast operating speeds.Our High-Visibility, Rigid Mast Gives You More FlexibilityAchieve greater productivity with the SRX Series' high-visibility mast. Its rugged construction features two interlocking I beam rails nested within a rigid outer channel, and includes six heavy-duty rollers from carriage to mast rail.Wide Drive WheelThe wide drive wheel delivers greater durability and longer life, as well as smoother operation over floor joints.Greater Strength with Simpler MaintenanceThe SRX reach mechanism incorporates canted roller bearings that travel within the bounds of the mast's “I" beam inner rails. As the mast extends, these angled bearings remain fully nested inside the mast channel. As a result, the entire carriage assembly is extremely rigid within the tapered mast railing design, producing superior capacity retention at higher lift heights.Double DutyThe SRX pantograph incorporates dual reach cylinders to reduce stress and distortion, while evenly distributing the load for reduced shock and wear. Its rugged double carriage design provides a full 40" stroke shown), and 20" for single reach.Easy HandlingOn-demand power steering with low-input torque, a small steer tiller wheel and tiller knob, combine to provide exceptional operator control with minimum effort.Durability from the Ground UpThe SRX outriggers are welded to the mast rails for superior structural strength, stability and support. Choose from a variety of available load wheel and outrigger tip designs based on the racking configuration and products handled in your operation.

Standard Option Availability Brake Standard

Automatic parking brake with anti-rollback and ramp start4-mode regenerative braking

Standard Option Availability Chassis And Mast Standard

AC drive motor36-volt electrical systemBattery compartment rollers and side gatesThree stage mast: 95" OHL / 210" MFH48" high load backrest

Standard Option Availability Hydraulic System Standard

AC hydraulic pump motorProportional lift and lower

Standard Option Availability Operator Conveniences Standard

90º operator side stanceAnti-fatigue arm, knees, and back paddingAdjustable operator back rest cushionSafety glass mast guard

Standard Option Availability Operator Presence System Standard

Operator presence pedal with mast lockout and return-to-neutralBrake pedal (depress to travel)

Standard Option Availability Outriggers Standard

33" - 50" I.D. base legs5" x 4" tandem load wheels

Standard Option Availability Steering System Standard

On-demand electronic power steeringSmall radius tiller and speed sensor steer controlSteer tire position indicator

Standard Option Availability Vehicle Management Standard

AC motor controller with built-in self-diagnosticsMulti-function LED displayBattery discharge indicator with lift interruptFour individual hour meter readingsMulti-function control handleEmergency power disconnect switchMotor and controller temperature protection

Sweet Savings

Saving you time, effort and expense is at the heart of the SRX Series. From systems that conserve energy to designs that reduce wear, the SRX delivers more uptime, while lowering your costs. With features like on-demand hydraulics and power steering, regenerative braking, and self-diagnostics, the SRX can lift heavy loads and your bottom line profitability.IP65 Rated Sealed Controller locks out dirt and debris that can harm performance and contaminate internal components.Stationary drive and steer motor eliminates cable flexing and possible damage.Standard thermal protection on all AC motors and controllers warn against possible overheating.Wide drive wheel delivers greater durability and longer life.Dual, articulating caster wheels minimize tire scrubbing and wear when pivoting.Extended major service intervals of 1,200 and 2,400 hours mean more uptime with less time and expenseLow maintenance brake only needs inspection every 12 months or 2,400 hours.Includes standard battery rollers and gates. Battery gate warning feature is optional.Non-contact switches and sealed sensors in the control handle require no adjustments, lowering maintenance costs.More Power to YouThe SRX offers advanced regenerative technology to reclaim power from four different operations - lowering power consumption, extending operating hours, reducing component wear, and keeping your equipment out of the charging bay.PluggingOperator PresenceBrake PedalNeutral BrakePower SaversTo reduce power consumption and keep your truck moving longer, the SRX Series features:On-demand hydraulics - if no command is given, the hydraulic motor turns off.On-demand electric power steering - the steering is triggered only by tiller movement.Auto-power off - cuts the electrical system if the forklift sits idle. Select an allowable idle time between 15 and 60 minutes before the vehicle powers down.Advanced On-Board DiagnosticsThe SRX features on-board self-diagnostics that protect the motor and controller by continuously monitoring for errors, faults, and high temperatures. It also provides access to the truck's service history and is available through the meter panel for quick troubleshooting. No tablet, laptop, or handset tool is required.Together, these features increase productivity and uptime, while keeping services expenses down.Quick AccessService points are easily accessible through removable top and front panels for speed and ease of maintenance.

Technical Specs Base Leg Opening Inner Dimension

33 to 50 in | 840 to 1270 mm

Technical Specs Battery Compartment Length

16.4 in | 415 mm

Technical Specs Brands

UniCarriers®

Technical Specs Capacity

3500 lb | 1750 kg

Technical Specs Maximum Fork Height

210 in | 5335 mm

Technical Specs Maximum Lift Speed Full Load

70 fpm | 355 mm/s

Technical Specs Maximum Lift Speed No Load

120 fpm | 610 mm/s

Technical Specs Maximum Lower Speed Full Load

95 fpm | 485 mm/s

Technical Specs Maximum Lower Speed No Load

87 fpm | 440 mm/s

Technical Specs Maximum Travel Speed Full Load

6.4 mph | 10.3 km/h

Technical Specs Maximum Travel Speed No Load

7.2 mph | 11.6 km/h

Technical Specs Reach

Single

Technical Specs Series

SRX

Technical Specs Voltage

36 V

Up Your Uptime

Reliability is the key to bringing your operation greater productivity and profits. That's why the SRX is engineered and built to deliver maximum uptime - all the time. From its simple design to its high performance components, you'll find the SRX is engineered to reliably move your business forward.Fewer Parts Mean Greater ReliabilityThe SRX Series features an AC drive and hydraulic motor and controller system that features fewer serviceable parts and delivers ultra-reliable performance while keeping operating costs low.Stay CoolAt higher operating temperatures, built-in thermal sensors alert the operator and automatically reduce performance to protect the drive motors, pump motor and controller system.Simple EfficiencyThe use of Hall Effect sensors and magnetic reed switches in the control handle - as well as encoders used in the motors and steering tiller - mean no heating components are needed for cold or freezer operations. This design also minimizes the effect of debris on the truck's operation, resulting in more uptime and greater productivity.Get Back Up Again QuicklyOur sophisticated CAN-Bus Network continuously monitors the truck's key operating systems, providing smooth operation and continuous diagnostics of all truck components.The LED meter panel is the portal to your truck's performance, providing ready access to system status, fault codes, service history, and driver alerts to minimize maintenance and downtime. Unlike competitive models, no tablet, laptop, or handset tool is needed to access this information.Cutting Costs without Cutting CornersTo deliver greater uptime, the SRX incorporates a wealth of reliability promoting features, including its stationary drive and steer motors that eliminate cable flexing and as a result, possible wiring damage. Other long-life components include a heavy-duty, DC steering motor.

UniCarriers SRX 3500 lb Single Reach Truck
