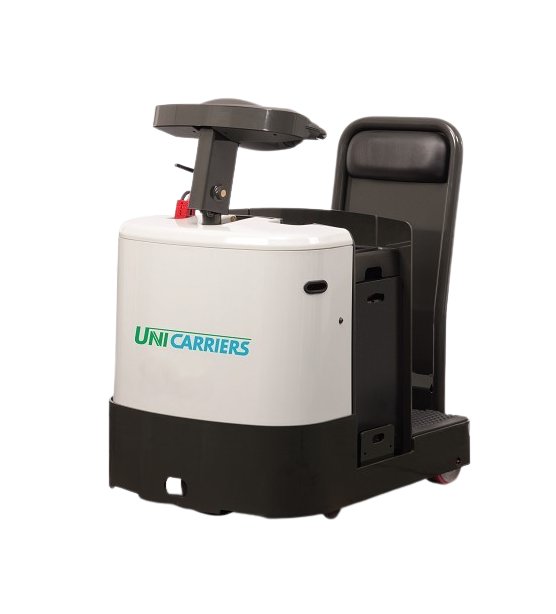

The UniCarriers TGX Series Electric Tow Tractors, model TGX20B, redefine efficiency and reliability in material handling. With a rolling load capacity of 10,000 lb (4535 kg) and powered by a 24V electric system, these tractors offer exceptional speed and control. Featuring adjustable coupler plates, regenerative braking, and optional LCD display for fleet management, the TGX Series prioritizes operator comfort, safety, and productivity. Built with durability in mind, these tow tractors are ideal for government and institutional applications requiring heavy-duty performance and low operating costs.
Product Specifications
Battery Battery Roller Option Height From Floor Forks Lowered
7.05 in | 180 mm
Battery Compartment Height
31.6 in | 805 mm
Battery Compartment Length
33.3 in | 850 mm
Battery Compartment Size Note
Battery compartment size with optional rollers and side gates: 30.9 x 13.5 x 31.6 (785 x 345 x 805)
Battery Compartment Width
13.5 in | 345 mm
Battery Connector Type
SB-175 Red
Battery Maximum Battery Capacity 6 Hour Rate
840 A·h
Battery Maximum Weight
1500 lb | 680 kg
Battery Minimum Weight
855 lb | 390 kg
Battery Position B Lead Length
20 in | 508 mm
Characteristics Drive Tire Type
Solid Rubber
Characteristics Drive Wheels
1x
Characteristics Model
TGX20B
Characteristics Power Type
Electric
Characteristics Rolling Load Capacity
10,000 lb | 4535 kg
Characteristics Stand Up Operator Type
Rider | Walkie
Characteristics Trail Wheels
2
Characteristics Trail Wheels Type
Poly
Characteristics Voltage
24 V

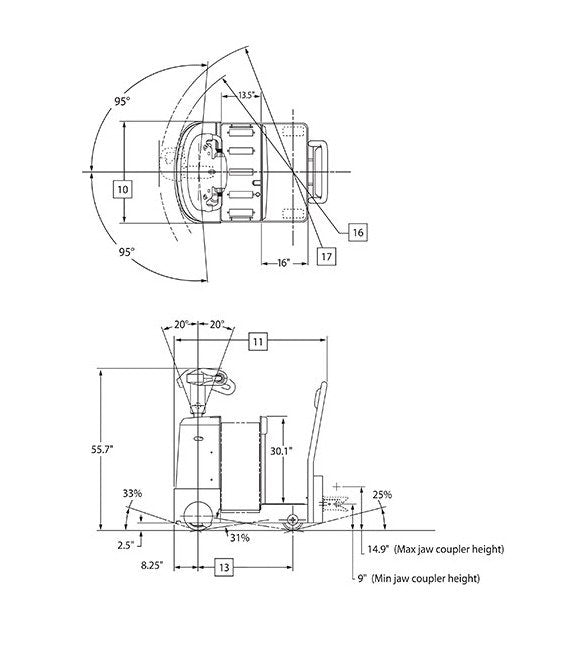

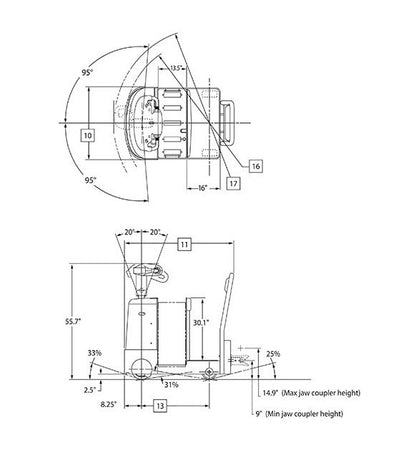

Dimensions Drive Tire Diameter
10 in | 255 mm
Dimensions Drive Tire Width
4 in | 100 mm
Dimensions Front Overhang
8.25 in | 210 mm
Dimensions Grade Clearance Under Chassis
31 %
Dimensions Minimum Outside Turning Radius
41.0 in | 1040 mm
Dimensions Overall Height To Top Of Steer Head
55.7 in | 1415 mm
Dimensions Overall Length Less Coupler
52.8 in | 1340 mm
Dimensions Overall Width
35.1 in | 890 mm
Dimensions Trail Wheel Diameter
7 in | 180 mm
Dimensions Trail Wheel Width
3 in | 75 mm
Dimensions Truck Weight No Load Without Battery
1195 lb | 545 kg
Dimensions Turning Radius Including Handle At 90 Degree
46.3 in | 1175 mm
Dimensions Wheelbase
32.7 in | 830 mm
Speed Full Load Travel Speed
5.6 mph | 9.0 km/h
Speed Maximum Drawbar Pull
710 lb | 3158 N
Speed Normal Drawbar Pull
225 lb | 1000 N
Speed No Load Travel Speed
9.1 mph | 14.6 km/h
Technical Information Adjustable Coupler Plates
Coupler plate allows each type of coupler to be adjustable in 1" increments
Technical Information Automatic Jaw Coupler
The standard heavy-duty automatic jaw coupler is equipped with a foot operated release pedal, located inside the operator compartment. Optional couplers are also available.
Technical Information Durable Designs
The TGX Series is manufactured with a rugged frame for tough applications. Its wide drive and trail wheels offer increased floor surface contact and string guards help prevent debris from getting into axles and bearings. Powder coat paint, inside and out, delivers a durable, high gloss, scratch resistant finish. A quiet, spiral beveled gear drive system with sealed ball bearings provides solid performance with low steer effort.
Technical Specs Brands
UniCarriers®
