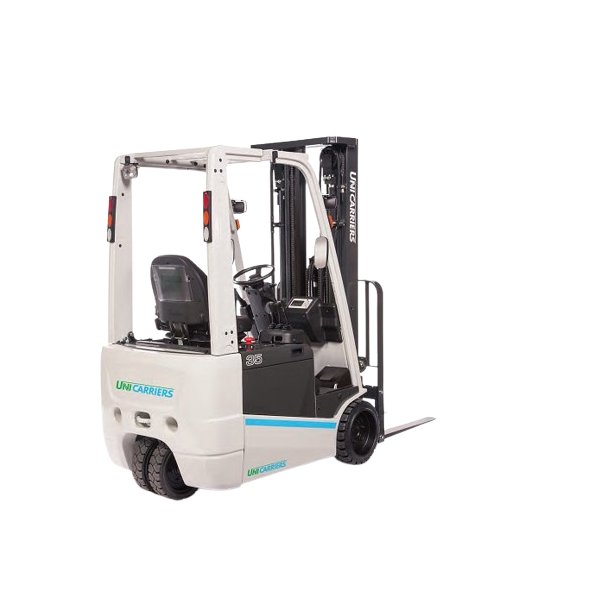

UniCarriers TX Series 3500 lb Electric Forklift with 60" Turning Radius
UniCarriers TX Series 3500 lb Electric Forklift with 60" Turning Radius
SKU:TXS-a2d9cf
Powerful and versatile electric forklift with 3500 lb capacity and 60" turning radius
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
UniCarriers TX Series 3500 lb Electric Forklift with 60" Turning Radius
$19,999.00
Quantity: 1
Claim Your Seller Account
UniCarriers TX Series 3500 lb Electric Forklift with 60" Turning Radius
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UniCarriers TX Series Electric Forklift combines exceptional maneuverability with powerful 100% AC motors for emission-free operations without compromising torque. With a 3500 lb load capacity and a tight 60" turning radius, this forklift excels at navigating narrow aisles and tight spaces. Backed by a reliable warranty, this forklift ensures productivity, versatility, and economy, making it an ideal choice for various industries.
Product Specifications
Applications
With 100% AC motors that are both powerful and emissions-free, TX Series forklifts are the green choice for:Food Products CompaniesWarehousing OperationsManufacturing
Comfort Zone
UniCarriers® incorporates proven, ergonomic designs throughout the TX Series forklifts to optimize the comfort and visibility of your operators - while it maximizes the performance of your entire operation.We’ve Thought of EverythingSwitching between the brake and accelerator is easier, more fluid and safer, thanks to our heel-to-toe concept that ensures the pedals are at the same height when released.Sit & RelaxA comfortable full-suspension seat absorbs shocks for a smoother, more comfortable ride - and features weight and back angle adjustments, hip restraints and a retractable seatbelt.Visibly BetterThe TX is designed to provide a commanding view of the surrounding environment and clear sightlines to the fork tips by virtue of the low-front dash panel.A Step Up in Operator ComfortDesigned with a wide step for easy entry into the spacious cabin that boasts leg and foot room that are among the industry’s largest. It also offers an amazing head clearance for such a compact forklift.Hands-On OperationA standard small diameter, tilt steering wheel can be paired with an optional spinner knob for extra operator control.Further customize driver preference by selecting an optional steering column that provides an extra 2" of height.Battery PlugUnlike competitive trucks, we’ve placed the battery plug under the hood and away from driver’s legs.Perfectly PlacedErgonomically placed parking brake, deck-mounted hydraulic controls and automotive-style forward/reverse directional controls, lights and turn signals put operator comfort and productivity all within easy reach.Performance at Your FingertipsWith our optional fingertip controls, you barely have to move your fingers to command control over travel direction, lift, auxiliary functions and horn.Integrated into a comfortable armrest, it provides operators with the ultimate in ergonomic efficiency. Choose between a combined or separate lift & tilt lever design.
Control Freak
Whether it’s restricting access to the forklift, regulating travel speed or limiting operating costs, the TX Series provides you with the control you need to manage your operation easily, effectively and completely.The Ultimate In ControlThe interactive meter panel on the TX provides operators and technicians with a wealth of information through its LCD warnings and readouts. Using the numbered function keys you can program settings, perform maintenance tasks, and access service history.Emergency DisconnectThe emergency disconnect button is strategically positioned for a quick, intuitive action.Maintain ControlWhen operating on inclines, our Controlled Rollback feature uses regenerative braking to automatically maintain a slow, consistent speed on a ramp or incline when the accelerator pedal is released. This eliminates the need for continuous brake pedal force by the operator.Speed SynchedWith our exclusive Flex Logic control, the acceleration rate varies based on the speed at which the pedal is pressed - fast acceleration for longer runs or slower acceleration for easier maneuvering in higher traffic areas, tight spaces and making final approaches. See page 8 for details.
Make It Yours
Unlike competitive brands, the TX Series comes standard with the most essential and popular features and accessories. In addition, we offer a complete menu of additional options that allow you to customize your forklift to fit your specific workplace environment, operations and business objectives. On these pages, you’ll find available options that are both innovative and economical—but it’s only a portion of what we offer. So if you don’t see what you’re looking for here, call your UniCarriers® dealer for more options.Side-Shifting Fork PositionerHydraulic fork adjustment eliminates the need to manually move forks for different pallet types for increased productivity.Freezer PackageFor operating in environments as low as -31ºF (-35ºC) - includes special hydraulic oil.Strobe LightAvailable in a variety of colors.Auto Fork LevelingConveniently located on the hydraulic lever, the thumb-activated button automatically stops forward tilt, bringing forks to 90˚ for easier load placement and retrieval.Battery RollersSimplify battery change-outs. Roller design includes a side panel that's easily removable for quick battery access.OptiView MastOur exclusive 3-stage design provides wider sightlines and improved load handling visibility.Higher Steering WheelThe stationary design provides an extra 2.2" of steering wheel height for enhanced operator comfort.Lower Overhead GuardDesigned with a 78.6" height for more confined, height-restricted areas. Other heights also available.Fingertip ControlsFingertip controls integrated into an adjustable armrest for smoother, more precise control. Can be ordered with our exclusive single lift/tilt joystick. (Restrictions on combining this with other optional features may apply. Consult your authorized UniCarriers® dealer for details.)
Note For Option Availability
Some options may require additional lead time. Consult your authorized UniCarriers® dealer for details. TX models conform to UL583 Type E.
Optional Option Availability Batteryelectrical Optional
48 Volt systemBattery compartment rollers
Optional Option Availability Hydraulic System Optional
Electronic fingertip control levers (separate lift and tilt or single levers)Auto-fork levelingAccumulatorExtra tilt
Optional Option Availability Mast Optional
OptiView® three-stage mast
Optional Option Availability Operator Conveniences Optional
Strobe lightsSteering wheel with spinner knobMagnetic convenience boxLow overhead guard (78.6")Solid pneumatic tires
Optional Option Availability Protectionsecurity Optional
Self-adjusting back up alarmFire extinguisher
Power And Performance
The TX Series matches turn-on-a-dime maneuverability with power, torque, speed and control to deliver optimal performance and productivity for each application and in just about every environment.Smooth MovesTX Series trucks are powered by two separate AC drive motors that are individually controlled by our AC Tech Controller. During tight turns, the inner wheel counter rotates so the truck can turn within its own footprint for unsurpassed maneuverability.Sensitive to Your Acceleration NeedsWith our exclusive Flex-Logic system, the quicker the accelerator pedal is depressed, the faster our TX Series will respond to your command for speed. This feature is ideal for fast paced operations and where long runs are common. Operators can also maintain a slower acceleration rate by reducing their pedal force when pedestrians are present or in more confined areas of the warehouse. In addition, the operator can adjust the acceleration rate through the meter panel, for even faster or slower response.Peak PerformanceOur top-end performance numbers are impressive, and so is the capability of TX Series forklifts to deliver quicker acceleration and higher speeds when you need to maximize work cycles and productivity.3+1 Performance Modes = Greater ProductivityThe TX Series features adjustable settings to optimize performance based on the application, work environment or operator experience. Choose from the three factory-set modes (shown below) to easily customize your lift truck. The TX also has a manual mode to create unique settings, finely tuned for your operator and operation.Economy Mode (E) - Extended operating hours achieved with only slightly reduced performance.Power Mode (P) - Offers mid-range settings for normal performance needs.High Power Mode (H) - To reach maximum desired performance.Manual Mode (M) - Provides access to customize performance parameters.
Pre Set Performance Specifications Economy Lift Speed Empty 36 V
91 mph | 460 km/h
Pre Set Performance Specifications Economy Lift Speed Empty 48 V
98 mph | 500 km/h
Pre Set Performance Specifications Economy Lift Speed Loaded 36
51 mph | 260 km/h
Pre Set Performance Specifications Economy Lift Speed Loaded 48
51 mph | 260 km/h
Pre Set Performance Specifications Economy Travel Speed Empty 36
8.1 mph | 13.0 km/h
Pre Set Performance Specifications Economy Travel Speed Empty 48
8.8 mph | 14.0 km/h
Pre Set Performance Specifications Economy Travel Speed Loaded 3
8.1 mph | 13.0 km/h
Pre Set Performance Specifications Economy Travel Speed Loaded 4
8.8 mph | 14.0 km/h
Pre Set Performance Specifications High Power Lift Speed Empty 3
101 mph | 515 km/h
Pre Set Performance Specifications High Power Lift Speed Empty 4
118 mph | 600 km/h
Pre Set Performance Specifications High Power Lift Speed Loaded
73 mph | 370 km/h
Pre Set Performance Specifications High Power Travel Speed Empty
10.0 mph | 16.0 km/h
Pre Set Performance Specifications High Power Travel Speed Loade
10.0 mph | 16.0 km/h
Pre Set Performance Specifications Power Lift Speed Empty 36 Vol
100 mph | 510 km/h
Pre Set Performance Specifications Power Lift Speed Empty 48 Vol
108 mph | 550 km/h
Pre Set Performance Specifications Power Lift Speed Loaded 36 Vo
57 mph | 290 km/h
Pre Set Performance Specifications Power Lift Speed Loaded 48 Vo
63 mph | 320 km/h
Pre Set Performance Specifications Power Travel Speed Empty 36 V
8.8 mph | 14.0 km/h
Pre Set Performance Specifications Power Travel Speed Empty 48 V
9.7 mph | 15.5 km/h
Pre Set Performance Specifications Power Travel Speed Loaded 36
8.8 mph | 14.0 km/h
Pre Set Performance Specifications Power Travel Speed Loaded 48
9.7 mph | 15.5 km/h
Technical Specs Brands
UniCarriers®
Technical Specs Load Capacity
3500 lb | 1750 kg
Technical Specs Overall Width
43.5 in | 1105 mm
Technical Specs Overhead Guard Height
83.4 in | 2120 mm
Technical Specs Voltage
36 V | 48 V
