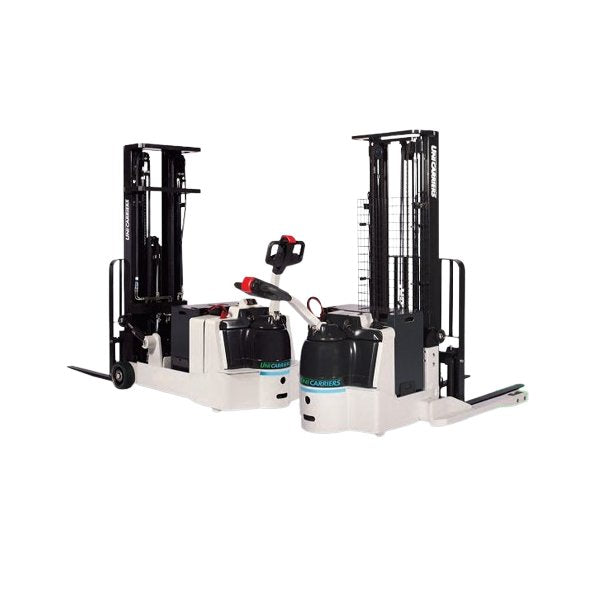

The UniCarriers WCX Series 4000 lb Capacity Walkie Counterbalance Stacker is a robust workhorse designed for handling heavy loads and reaching impressive heights with the efficiency and precision required in industrial settings. Equipped with a powerful 24V brushless AC drive motor, this stacker offers superior performance, reduced maintenance needs, and extended run times. The Smart Electric Brake system, regenerative braking, and spring-applied/electronically released brake ensure safety and longevity. With features like self-diagnostics, fewer moving parts, and innovative control options, the WCX stacker prioritizes uptime, operator control, and ease of serviceability, delivering exceptional reliability and productivity in demanding work environments.
Product Specifications
Applications
Capacities of up to 2 tons lift heights up to 18 feet fluid, virtually effortless maneuverability, UniCarriers® stackers have all the performance specs you require for:Trailer Loading / Unloading (WCX)Load Transfer/Stacking (WCX)
Comfort Zone
More Comfort By DesignThe spring-loaded handle and control head are ergonomically designed to maximize both operator control and comfort -delivering the ultimate in speed and maneuverability with minimum effort.Requiring significantly less effort versus twist grip controls, our fingertip design reduces operator fatigue and allows precise travel speed control.Perfectly PositionedManual levers for lift/lower and tilt control are located on the top right of the WCX's power unit where they're easily accessible to operators. Manual lift/lower levels are available as an option on WSX models.
Control Freak
Built into each of these stackers are innovative features that provide your operators with extraordinary control ofEasy Does ItThe ergonomic layout of the control head includes our thumb-operated rotary controls, which can be accessed from either side to easily adjust direction and speed. Our "Soft Touch" switches also allow easy lifting or lowering of loads.Complete ControlHydraulic control levers for lift/lower and tilt functions are conveniently located on the top, right side of the WCX, offering smooth control to feather the load. Levers are available as an option on the WSX.Speed LimitsA sealed, non-contact proximity switch detects when the forks are raised above free lift on three-stage masts (or at approximately 47" for 2W masts). This system triggers the controller to automatically reduce travel speed to 1.0 mph (1.5 km/h).A Multi-Faceted Display for a Multi-Faceted TruckThe standard Multi-Function Digital Indicator includes a battery discharge indicator with lift interrupt, hour meter gauge, and fault-code display.For even greater control, add the optional Multi-Function LCD Display (shown) that features:PIN Access: Personal codes for up to 5 different operatorsPerformance Modes: Custom settings to match driver capabilities and optimize productivityOn-Board Diagnostics: Fast, easy troubleshooting and adjustment
Make It Yours
We offer a wide range of optional equipment to tailor your UniCarriers® stacker to meet the demands of your specific applications and the needs of your operators.Mast-Mounted LED Work LightsStrobe LightManual Hydraulic Function Levers (Lift/Lower/Tilt Control and Auxiliary Hydraulic functions available. Manual lift/lower and tilt levers are standard on the WCX.)On/Off Toggle SwitchMulti-Function LCD DisplayTravel AlarmSide ShiftersInternal Hose ReevingVarious Drive Tire Options (WSX)Polished & Tapered ForksBattery Gate Interlock Switch for WSX 13.5" compartment only)
Optional Option Availability Hydraulic System Optional
Manual levers for auxiliary hydraulic control function
Optional Option Availability Mast Optional
Side shifterInternal hose reeving
Optional Option Availability Operator Conveniences Optional
On/Off toggle switchMast mounted, low profile LED work lightsAmber strobe light
Optional Option Availability Protectionsecurity Optional
Battery compartment rollers with side gates (Not available on WSX narrow battery compartment model.)Travel alarm
Optional Option Availability Vehicle Management Optional
Multi-function LCD display
Play It Safe
Maintain ControlThe large Safety Reverse Button on the end of the control head automatically reverses the travel direction if operator contact is made.Bright IdeasOptional mast-mounted, low profile LED work lights provide plenty of illumination to the work area. Amber strobe lights are available as an option for additional workplace awareness.Controlled StopThe Smart Electric Brake engages whenever the handle is in the upper or lower brake range, ensuring the equipment can only be operated when the handle is in the proper operating position.Security Where It CountsAdjustable steel battery retainers reduce side-to-side movement, keeping the battery secure. Battery gate interlock switches are available as an option on the 13.5" wide WSX model.UniCarriers® stackers meet all standards of ITSDF/ANSI B56.1 Safety Standards for powered industrial trucks. They are ergonomically designed and tested to help operators stay physically comfortable and mentally alert throughout their shift.
Power And Performance
Our AC Motor Does More for LessGreater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor. The result? Consistently high performance across the battery range, with longer run times between charging.Reach HigherAt 217 inches (18 feet), our lift height is among the highest in the industry - sized just right for two and three shelf racking.The flat face mast design features rolled steel channels, large cross sections, and thick inner rails for increased capacity retention.A Turn for the BetterYou'll get the exceptional stability that comes from the WSX model's wide wheelbase and tight turning radius. Its 190º steering arc, ball-bearing steering mechanism, large steering control head, and spring-loaded handle all contribute to easily navigating in the tightest of spaces.An efficient, high-power drive unit combined with an 18-ft lift height provides you with the performance you need to complete tough tasks with more speed, accuracy and productivity.And while competitive systems feature large, bulky connectors, which house a web of complex wiring, our exclusive CAN System uses just four wires (data in/out and power in/out) in the controller head. The result? A greatly simplified system with enhanced dependability.
Standard Option Availability Brake Standard
Regenerative brakingSpring applied/electronically released brake system
Standard Option Availability Hydraulic System Standard
Manual levers for lift/lower/tilt
Standard Option Availability Operator Conveniences Standard
Ergonomic control handle (with rotary travel and direction thumb control)Fingertip control of electronic lift, lower, and horn buttons
Standard Option Availability Protectionsecurity Standard
Large reversing button on handleAdjustable battery retainersReduced travel speed above free liftElectric horn
Standard Option Availability Vehicle Management Standard
Brushless AC drive motor and DC pump motorElectronic motor controller system with AC inverterMulti-function digital displayDigital CAN-bus communicationsProgrammable performance parameters (requires service handset)Motor and controller thermal protection
Sweet Savings
Quick AccessBoth the WSX and WCX are designed to reduce the time and expense of maintenance by providing easy access to critical service points including:Major componentsMast & frame lubrication fittingsDrive motor encoderPump motor brushesLow Maintenance and High EfficiencyExtremely reliable, our 24V brushless drive motor requires little maintenance. Extremely efficient, it uses less energy per cycle to stay and running longer between battery charges. maintenance-free electronic horn eliminates rust due to condensation for longer economic life.Protection Where It CountsThermal protection systems that slow or shut down the truck in response to high temperatures protect the drive motor, controller and your investment.Putting the Brakes on High CostsOur Smart Electric Brake uses regenerative motor torque prior to brake actuation. It features fewer parts, never needs adjustment, and extends component life.Solid PerformanceThe rugged frame keeps your stacker up and running - and durable, high gloss, scratch-resistant powder coat paint will keep it looking good.Easy ServiceOur bolt-on mast design allows quick and easy access for servicing.No ToolsThe drivetrain and other major components can be easily accessed without tools.From energy efficiency to the savings realized through fewer service requirements and faster maintenance and repair, UniCarriers® has designed these machines to save time, money and hassle.
Technical Specs Battery Compartment Size
35.75 x 13.5 x 32 in | 905 x 340 x 815 mm
Technical Specs Brands
UniCarriers®
Technical Specs Capacity
4000 lb | 2000 kg
Technical Specs Maximum Drawbar Pull Loaded
596 lb | 2.7 kN
Technical Specs Maximum Drawbar Pull Unloaded
1023 lb | 4.6 kN
Technical Specs Maximum Fork Height
152 in | 3850 mm
Technical Specs Maximum Gradeability Loaded
11.2 %
Technical Specs Maximum Lift Speed Loaded
30 fpm | 152 mm/s
Technical Specs Maximum Lift Speed Unloaded
50 fpm | 254 mm/s
Technical Specs Maximum Lower Speed Loaded
50 fpm | 254 mm/s
Technical Specs Maximum Lower Speed Unloaded
50 fpm | 254 mm/s
Technical Specs Minimum Outside Turning Radius
69.4 in | 1765 mm
Technical Specs Number Of Drive Wheels
1 x
Technical Specs Number Of Load Wheels
2
Technical Specs Series
WCX
Technical Specs Tire Type Drive Wheels
Poly
Technical Specs Tire Type Load Wheels
Poly
Technical Specs Voltage
24 V
Up Your Uptime
You'll find WSX and WCX stackers are manufactured with fewer moving parts, designed with easier access to key service points and built to exacting standards for the ultimate in quality, durability and uptime performanceSmart Electric BrakeRegenerative motor torque, proportional plugging and our spring-applied electronically released disc brake work together to reduce component wear, extend part life and eliminate the need for adjustments.Self-DiagnosticsOn-board diagnostics are readily available through our optional multifunction LCD meter panel - to alert you to potential difficulties, pinpoint the source and troubleshoot problems.Fewer Moving PartsHall Effect speed and acceleration control simplifies maintenance and limits downtime due to its non-contact design that eliminates mechanical wiping action, potentiometers, and heaters.Simply SmarterThe innovative design of these stacker trucks allows digital communication between all operational controls on the steer handle to the truck's controller.This means multiple signals travel through the same wire. Plus, every minute the truck is on, it's self-monitoring to assure reliability.Driving EfficiencyThe AC drive motor is brushless, eliminates forward and reverse contactors, uses fewer components and requires less maintenance to keep you up and running. Both the drive motor and controller feature thermal protection systems to slow or shut down the truck in response to high temperatures. And if service is required, the motor is mounted vertically for easier access- to get you back to work faster.Our heavy-duty DC hydraulic lift pump effectively delivers hydraulic oil to a system that features a check valve, flow regulator and return filtering line. This protects the system against environmental contaminants.Built for ServiceabilityThe design provides easy service access to:Drive unit assemblyRotation sensing encoderLubrication fittingsPump motor brushesBrake systemBuilt for ReliabilityThe WSX and WCX are built with reliable components proven on thousands of UniCarriers® forklifts in countless applications.
