Unified Captive Panel Screw Head - PFHV, No Spring

Name: Unified Captive Panel Screw Head - PFHV, No Spring
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-138773
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-138773

Versatile Unified Captive Panel Screw Head for efficient metal sheet fastening. Compact, low-profile design with standard universal slot/Phillips recess for easy installation.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

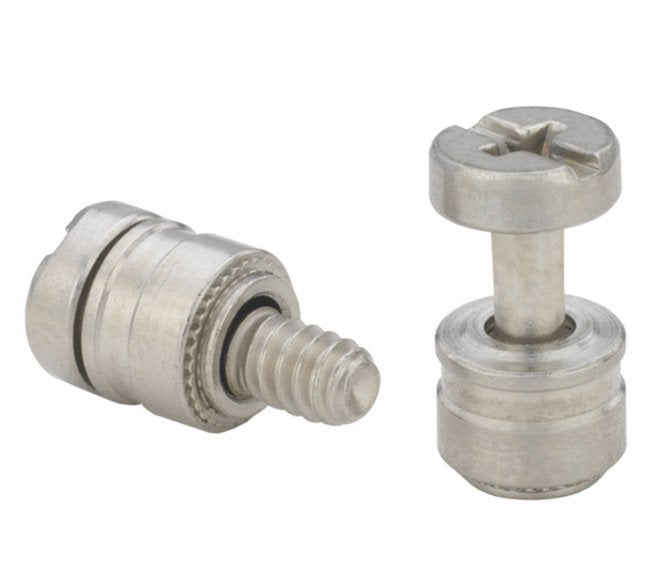

The Unified Captive Panel Screw Head PFHV is a versatile solution for fastening metal sheets with its compact and low-profile design. With multiple screw lengths and universal slot/Phillips recess standard, this screw ensures easy installation in limited access areas. Made of heat-treated carbon steel and featuring a bright nickel finish, this screw offers durability and corrosion resistance, meeting stringent industry standards. The PFHV screw is designed for use in sheets with a minimum thickness of .036 inches and is compliant with ANSI B1.1, 2A thread specifications.

Product Specifications

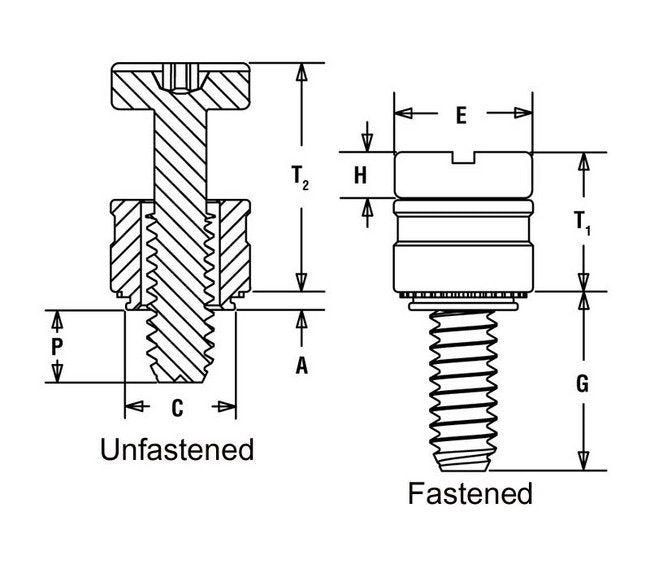

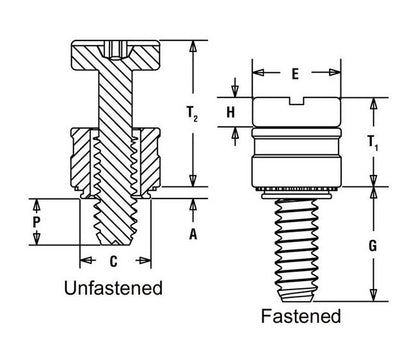

Specifications A Shank Max

.036 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.202 in

Specifications Driver Size

Slotted/#1; Phillips

Specifications E 010

.260 in

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 025

.316 in

Specifications Hole Size In Sheet 0003 0000

.203 in

Specifications H 005

.080 in

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.210 in

Specifications Min Sheet Thickness

.036 in

Specifications P 025

.095 in

Specifications Screw Length Code

Specifications T1 Nom

.260 in

Specifications T2 Nom

.436 in

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFHV
