Unified Captive Panel Screw - PFHV Type

Unified Captive Panel Screw - PFHV Type

PEM-691168

Cost-effective Unified Captive Panel Screw with a compact design, ideal for limited access areas, featuring a versatile slot/Phillips recess standard. ANSI B1.1, 2A compliant.

$12.99
$12.99
Sale

Initiate Order

Unified Captive Panel Screw - PFHV Type

Unified Captive Panel Screw - PFHV Type

$12.99

Quantity: 1

Claim Your Seller Account

Unified Captive Panel Screw - PFHV Type

Unified Captive Panel Screw - PFHV Type

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

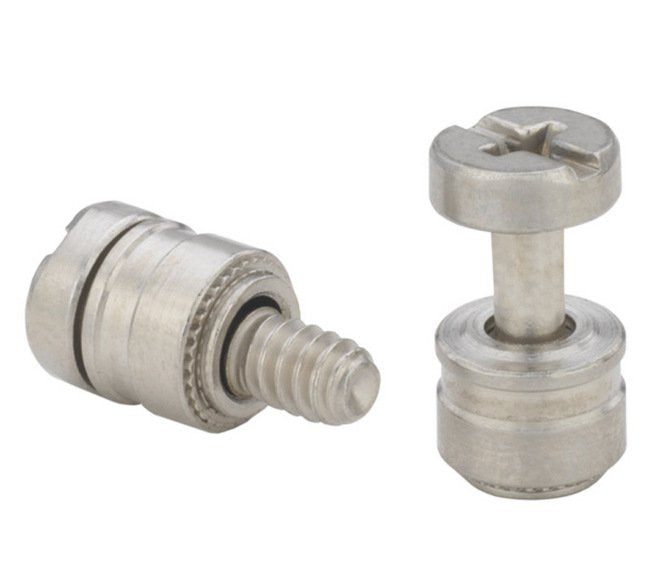

The Unified Captive Panel Screw - PFHV Type is a cost-effective solution designed for limited access areas, featuring a small, compact, and low-profile design. With a universal slot/Phillips recess standard, this screw offers versatility and convenience. Made of heat-treated carbon steel with a bright nickel finish, it ensures durability and corrosion resistance. Meeting ANSI B1.1, 2A thread specifications and suitable for use in sheets of HRB 60 or less hardness, this screw is a reliable choice for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

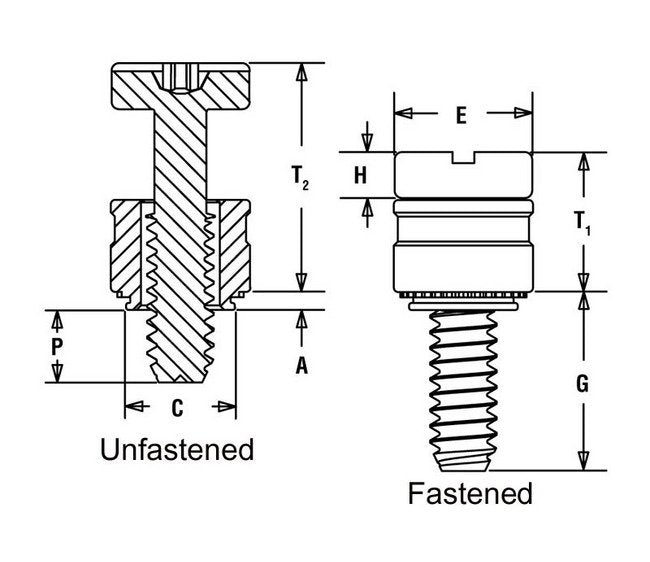

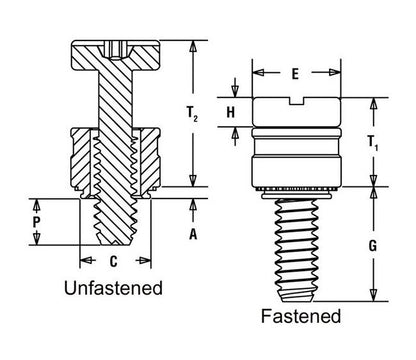

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.251 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.309 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 025
.259 in
Specifications Hole Size In Sheet 0003 0000
.252 in
Specifications H 005
.111 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.260 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.000 in
Specifications Screw Length Code
0
Specifications T1 Nom
.335 in
Specifications T2 Nom
.555 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFHV
