Unified Captive Screws - Type PFK for PC Boards

Unified Captive Screws - Type PFK for PC Boards

PEM-c42ab7

High-quality Unified Type PFK Captive Screws for PC boards, ASTM A380 finish, ANSI B1.1 thread spec

$24.99
$24.99
Sale

Initiate Order

Unified Captive Screws - Type PFK for PC Boards

Unified Captive Screws - Type PFK for PC Boards

$24.99

Quantity: 1

Claim Your Seller Account

Unified Captive Screws - Type PFK for PC Boards

Unified Captive Screws - Type PFK for PC Boards

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

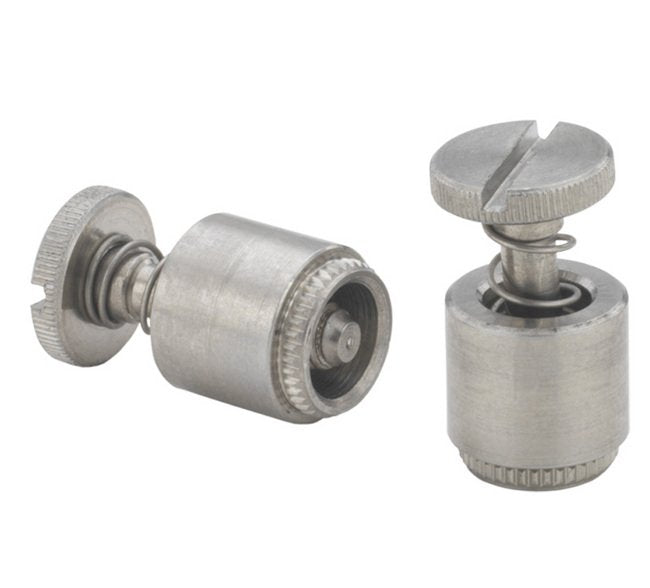

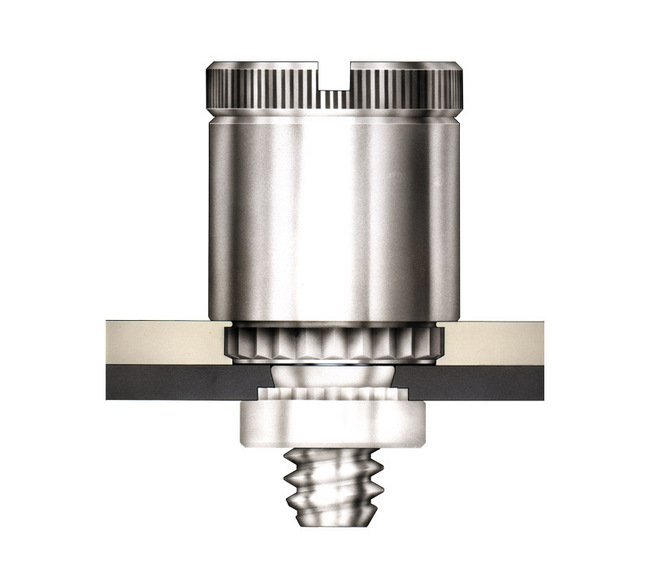

The Unified Captive Screws, Type PFK, are designed for precise fastening in PC boards, offering a thread size of .112-40 (#4-40) and a screw length suitable for a minimum sheet thickness of .060 inches. Crafted from high-quality 300 Series Stainless Steel, these captive screws ensure durability and reliability. With finishes meeting ASTM A380 standards and adherence to ANSI B1.1 thread specifications, these screws are ideal for secure fastening applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

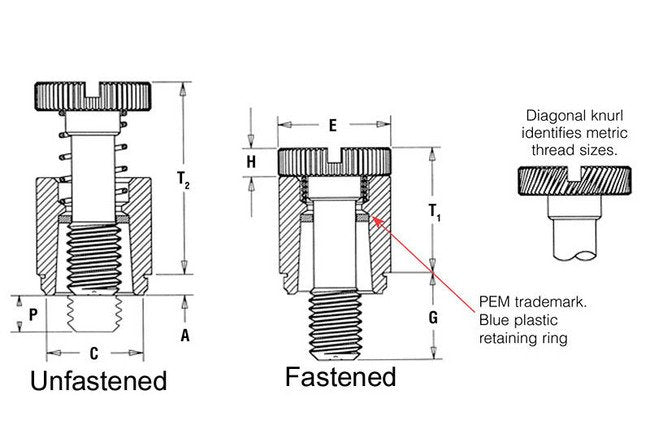

Product Specifications

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 003
.283 in
Specifications E 010
.312 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.250 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.20 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
40
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFK
