Unified Large Knob Spring-Loaded Fastener - PF11MW & PF12MW
Unified Large Knob Spring-Loaded Fastener - PF11MW & PF12MW
SKU:PEM-167dff
Precision Unified fastener with PF11MW & PF12MW types for durable and easy panel installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Unified Large Knob Spring-Loaded Fastener - PF11MW & PF12MW
$24.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob Spring-Loaded Fastener - PF11MW & PF12MW
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

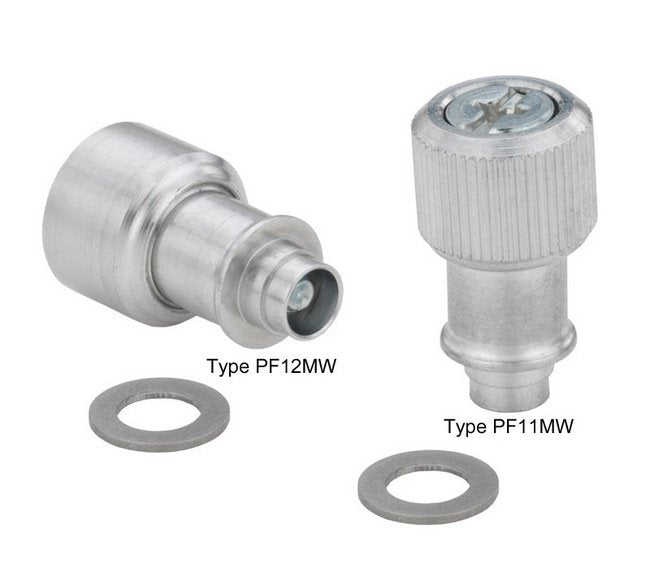

The Unified Large Knob Spring-Loaded Fastener includes Types PF11MW & PF12MW, designed to compensate for mating hole misalignment and install into panels of varying hardness. Crafted with materials like aluminum, heat-treated carbon steel, and 300 series stainless steel, it ensures durability and reliability. With compliant finishes and precise dimensions meeting ANSI B1.1 standards, this fastener is ideal for metal sheet assemblies in diverse applications.
Product Specifications
Specifications A Max Sheet Thickness
.063 in
Specifications B Min
.111 in
Specifications Cad Note

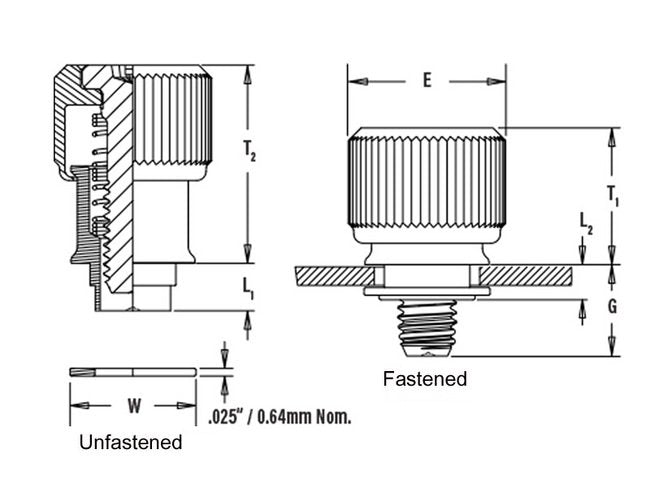

Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#1; Phillips

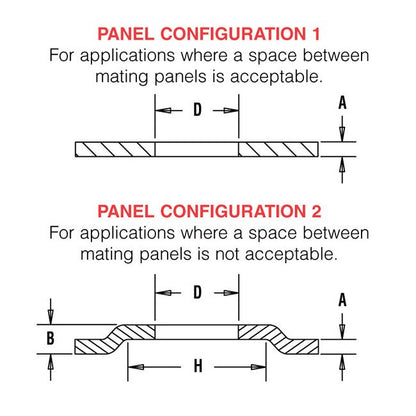

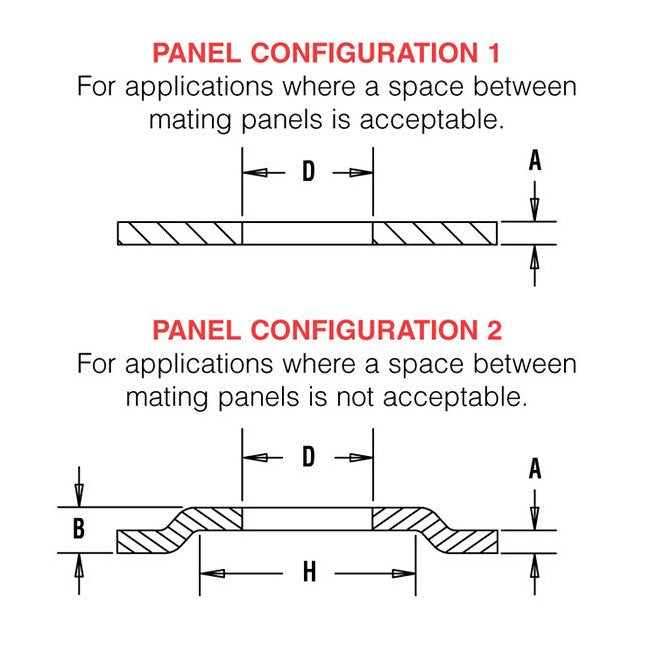

Specifications D Hole Size In Sheet 0003 0001
.250 in
Specifications E 010
.417 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
.290 in
Specifications H Min
.375 in
Specifications L1 Nom
.137 in
Specifications L2 Max
.127 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
.073 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications Screw Length Code
2
Specifications Shank Code
1
Specifications T1 Nom
.310 in
Specifications T2 Nom
.450 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Smooth Cap - PF12MW
Specifications W Nom
.312 in
