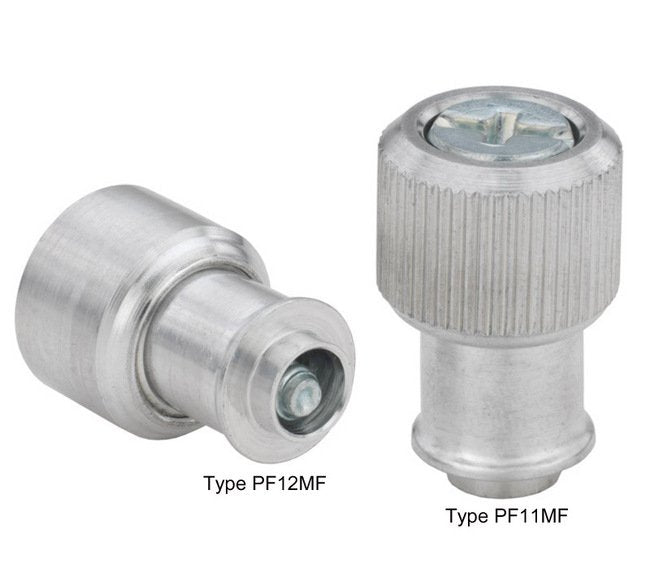

Unified Large Knob, Spring-loaded PF11MF & PF12MF
Unified Large Knob, Spring-loaded PF11MF & PF12MF
SKU:PEM-f4bed5
Effortless installation, durable materials, meets industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Unified Large Knob, Spring-loaded PF11MF & PF12MF
$29.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob, Spring-loaded PF11MF & PF12MF
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unified Large Knob, Spring-loaded PF11MF & PF12MF is designed for precise applications, offering effortless installation with low force requirements. Crafted from high-quality materials like aluminum, heat-treated carbon steel, and stainless steel, this knob ensures durability and reliability. With a natural finish and zinc-plated components, it meets top industry standards for performance and longevity.
Ready to Grow Without Cash Flow Constraints?

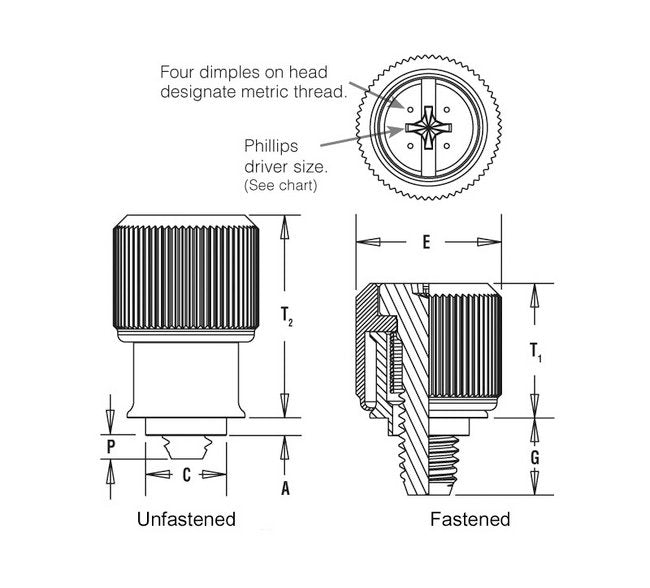

Product Specifications
Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.514 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.350 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.084 in
Specifications Screw Length Code
2
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MF
