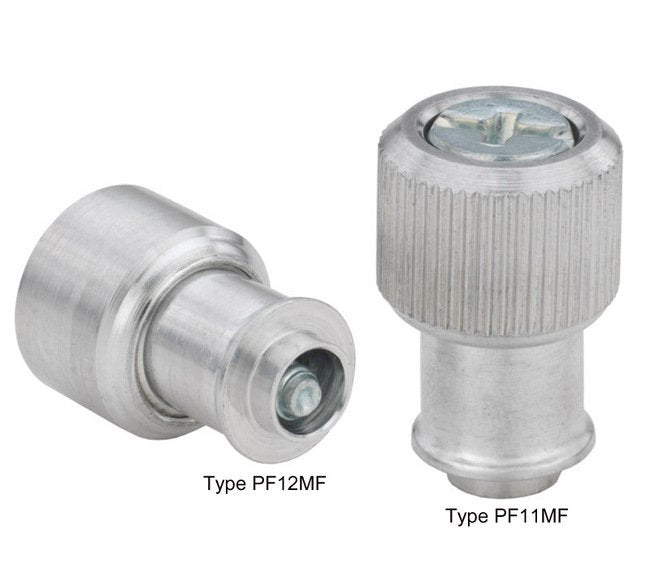

The Unified Large Knob Spring-loaded Types PF11MF and PF12MF offer seamless installation into metal panels, with a knurled cap design for easy grip. Featuring thread size .164-32 and ANSI B1.1, 2A thread specification, these knobs are crafted with precision. Made of durable materials like aluminum, heat-treated carbon steel, and 300 series stainless steel, they ensure longevity and performance. Compliant with federal procurement standards, these knobs meet stringent quality requirements for institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

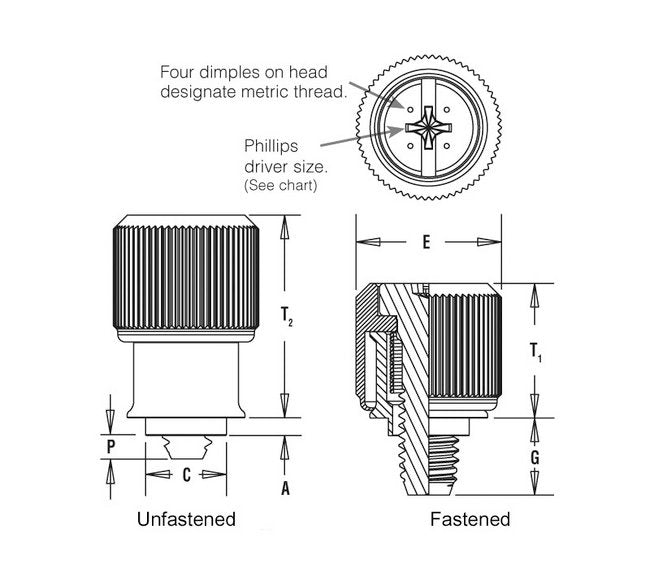

Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.514 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.290 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.024 in
Specifications Screw Length Code
1
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MF
