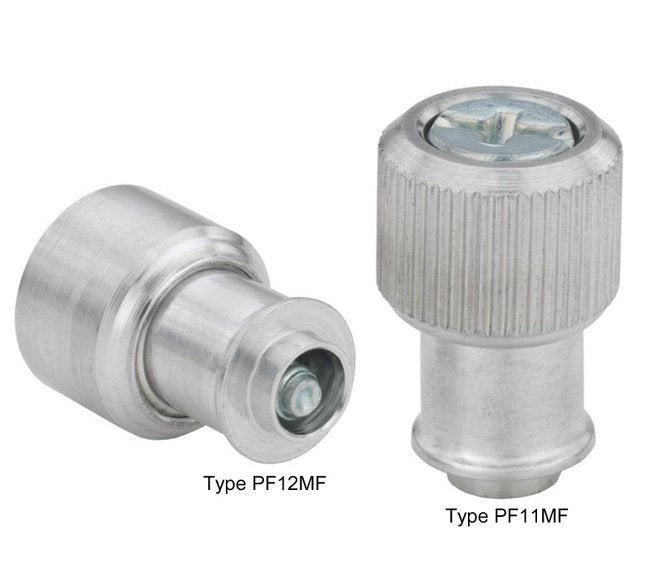

The Unified Large Knob, Spring-loaded Types PF11MF and PF12MF are engineered for close centerline-to-edge applications, offering easy installation without requiring high force. Crafted from top-grade materials like aluminum, heat-treated carbon steel, and 300 series stainless steel, this knob ensures durability and optimal performance. With finishes like natural aluminum and zinc plating, it meets stringent industry standards for quality and reliability. Ideal for metal panels, these knobs guarantee a secure and flush fit, making them a top choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

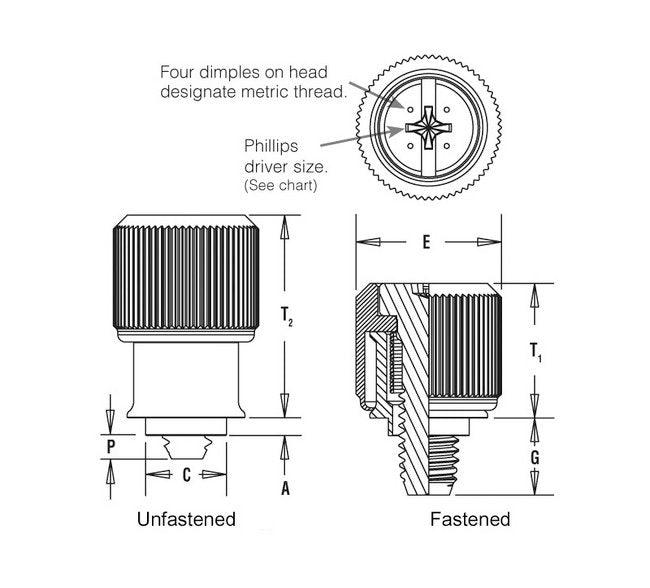

Specifications A Max
.041 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.186 in
Specifications Driver Size
Slotted/#1; Phillips
Specifications E 010
.417 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.290 in
Specifications Hole Size In Sheet 0005 0000
.187 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.031 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications P 025
.115 in
Specifications Screw Length Code
2
Specifications T1 Nom
.310 in
Specifications T2 Nom
.450 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MF
