Unified Large Knob Spring-loaded PF11MW & PF12MW
$23.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob Spring-loaded PF11MW & PF12MW
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

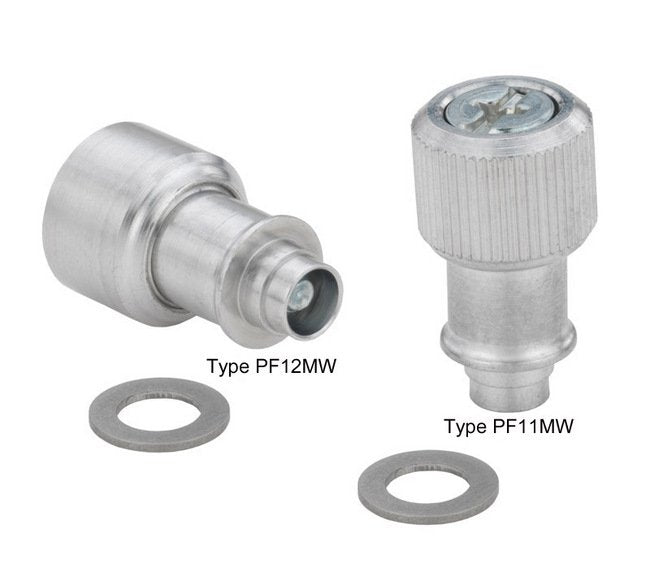

The Unified Large Knob Spring-loaded Types PF11MW and PF12MW are designed to compensate for mating hole misalignment and can be easily installed into various panel hardness types. With a smooth cap design for PF12MW, these panel fasteners are constructed with high-quality materials including aluminum knob and retainer, heat-treated carbon steel screws, and 300 series stainless steel for the spring and washer, ensuring durability and reliability. Compliant with ANSI B1.1, 2A thread specifications and featuring finishes like natural and zinc plating, these fasteners are ideal for securing metal sheets with a thickness up to .063 inches.
Product Specifications

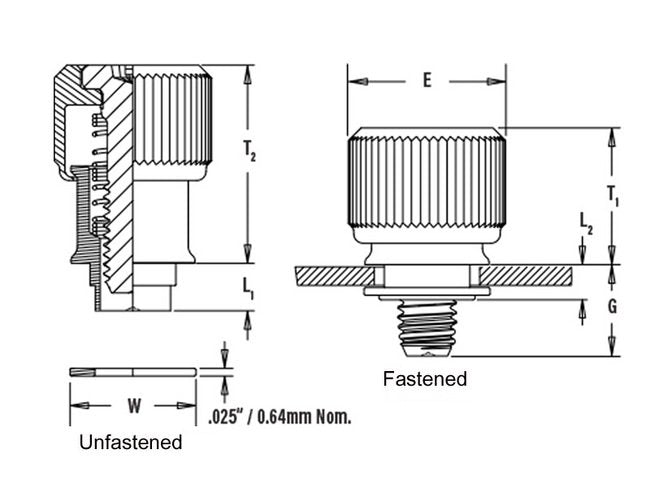

Specifications A Max Sheet Thickness
.063 in
Specifications B Min
.115 in
Specifications Cad Note
Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#2; Phillips

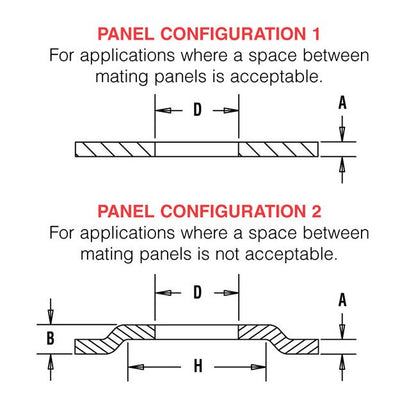

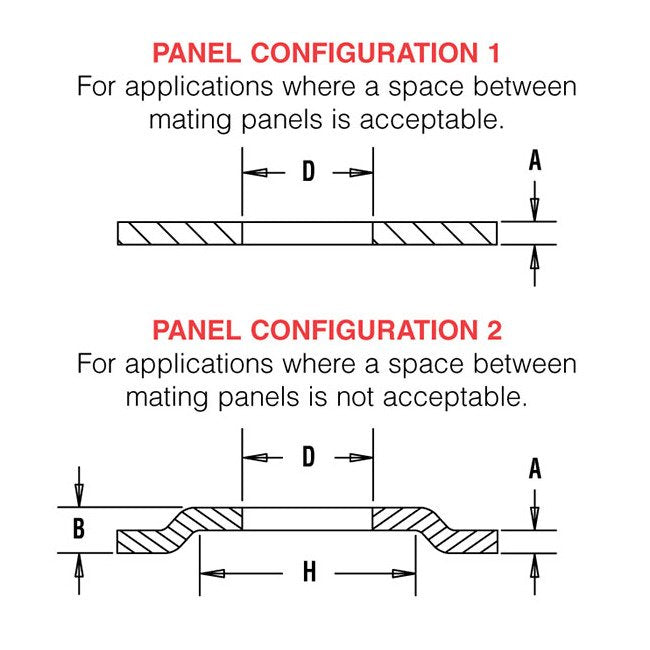

Specifications D Hole Size In Sheet 0003 0001
.283 in
Specifications E 010
.450 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
.290 in
Specifications H Min
.413 in
Specifications L1 Nom
.149 in
Specifications L2 Max
.127 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
.076 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications Screw Length Code
1
Specifications Shank Code
1
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Smooth Cap - PF12MW
Specifications W Nom
.344 in
