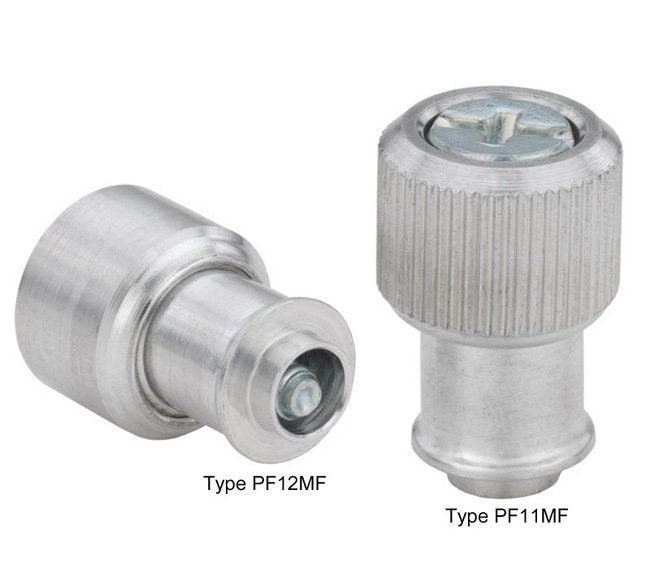

Unified Large Knob Spring-Loaded Screws - Types PF11MF & PF12MF
Unified Large Knob Spring-Loaded Screws - Types PF11MF & PF12MF
SKU:PEM-1d9d0b
Secure, easy-to-install Unified Large Knob Spring-Loaded Screws for metal sheets & panels. Smooth cap design, flush installation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Unified Large Knob Spring-Loaded Screws - Types PF11MF & PF12MF
$39.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob Spring-Loaded Screws - Types PF11MF & PF12MF
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unified Large Knob Spring-Loaded Screws are engineered for precision and ease of installation in close centerline-to-edge applications. Featuring a smooth cap design (Type PF12MF), these screws offer a secure fit without requiring high installation force. Made of high-quality materials including heat-treated carbon steel and 300 series stainless steel, these screws ensure durability and reliability. Designed to install flush on the back side of panels, they provide a seamless and professional finish. Ideal for metal sheets and panels, these screws meet stringent industry standards for performance and quality.
Ready to Grow Without Cash Flow Constraints?

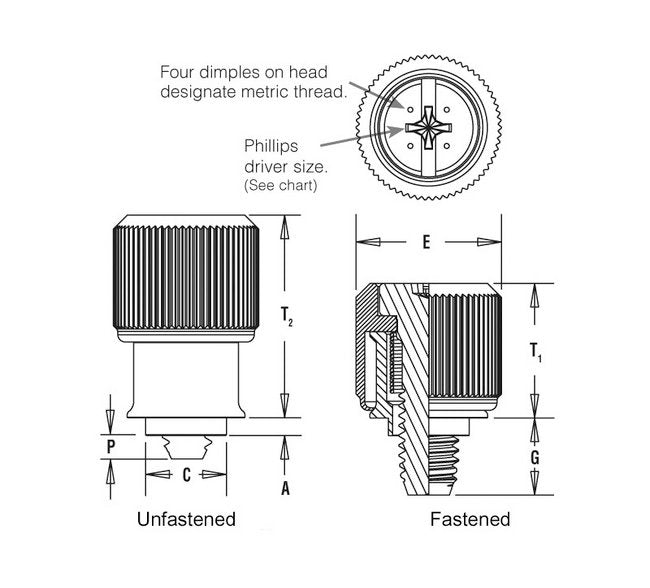

Product Specifications
Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.514 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.290 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.024 in
Specifications Screw Length Code
1
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Smooth Cap - PF12MF
