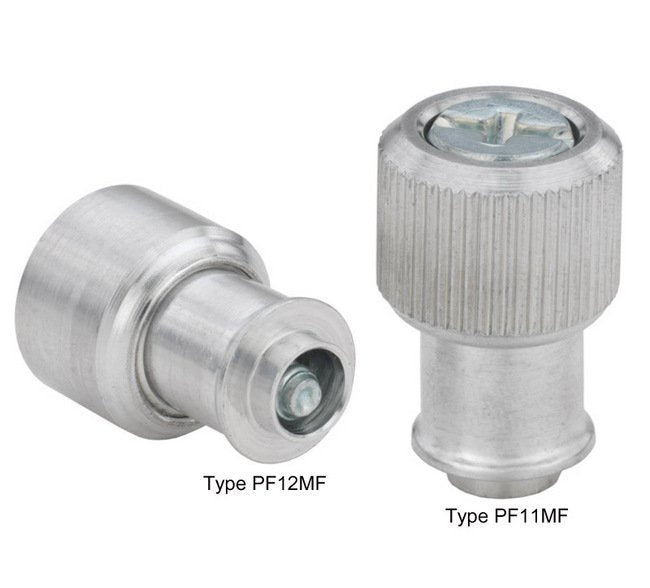

Unified Large Knob, Spring-loaded - Types PF11MF and PF12MF
Unified Large Knob, Spring-loaded - Types PF11MF and PF12MF
SKU:PEM-d6269e
Precision-designed Unified Large Knobs for metal sheets/panels, low installation force, Knurled Cap for easy handling, ANSI B1.1, 2A compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Unified Large Knob, Spring-loaded - Types PF11MF and PF12MF
$24.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob, Spring-loaded - Types PF11MF and PF12MF
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Unified Large Knob, Spring-loaded Types PF11MF and PF12MF are designed for precise installations in metal sheets and panels, offering a low installation force requirement and a flush finish on the panel's back side. With a thread size of .190-32 (#10-32) and materials like heat-treated carbon steel for the screw and aluminum for the knob and retainer, these knobs ensure durability and reliability. Moreover, the Knurled Cap design enhances grip for easy handling, meeting ANSI B1.1, 2A thread specifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.514 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.230 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications P 025
.000 in
Specifications Screw Length Code
0
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MF
