Unified Large Knob, Spring-loaded - Types PF11MW and PF12MW
Unified Large Knob, Spring-loaded - Types PF11MW and PF12MW
SKU:PEM-0bbfc2
Secure and align panels effortlessly with the Unified Large Knob, Spring-loaded PF11MW/PF12MW. ANSI compliant and versatile for diverse applications.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Unified Large Knob, Spring-loaded - Types PF11MW and PF12MW
$23.99
Quantity: 1
Claim Your Seller Account
Unified Large Knob, Spring-loaded - Types PF11MW and PF12MW
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

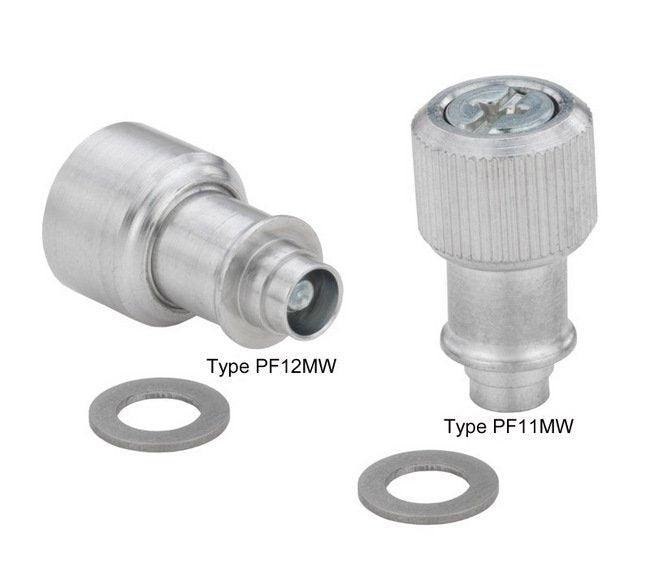

The Unified Large Knob, Spring-loaded PF11MW and PF12MW is designed to compensate for mating hole misalignment, ensuring secure installations on metal sheets up to 0.063 inches thick. Featuring a knurled cap and durable materials such as aluminum, heat-treated carbon steel, and stainless steel, this fastener meets ANSI B1.1 standards. The natural and optional black finishes, along with its compatibility with various driver sizes, make it versatile for industrial applications.
Product Specifications
Specifications A Max Sheet Thickness
.063 in
Specifications B Min
.121 in
Specifications Cad Note

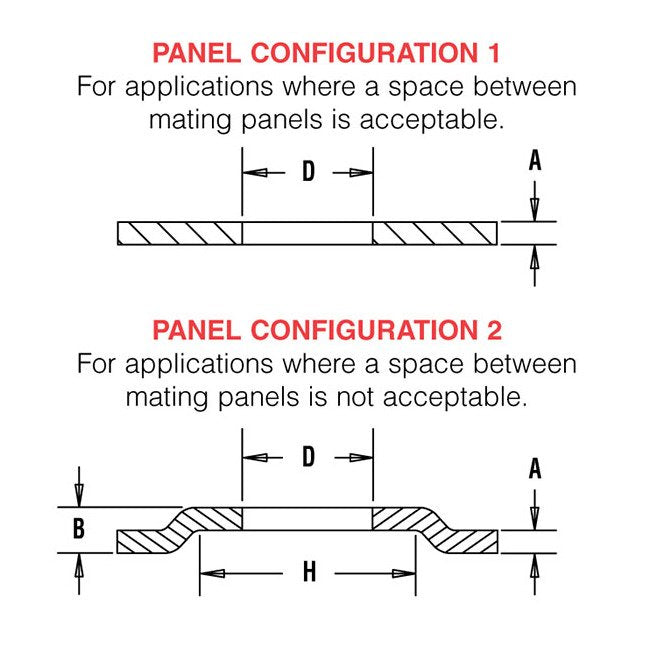

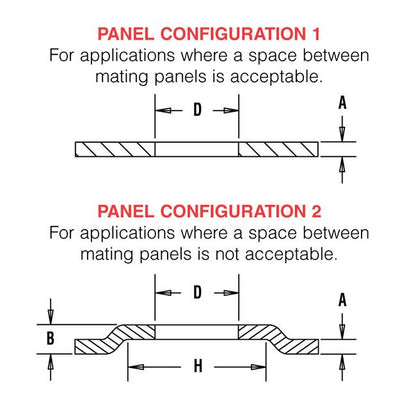

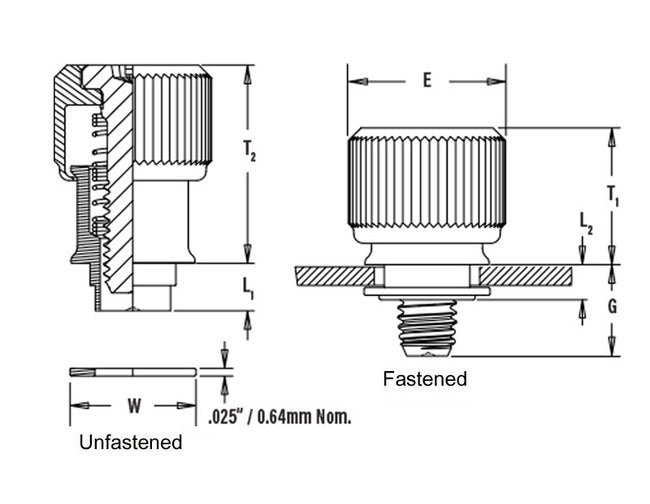

Mating washers for PF11MW / PF12MW panel fasteners are not shown in 3D drawings.
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications Driver Size
Slotted/#2; Phillips
Specifications D Hole Size In Sheet 0003 0001
.346 in
Specifications E 010
.514 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G Nom
.350 in
Specifications H Min
.469 in
Specifications L1 Nom
.157 in
Specifications L2 Max
.140 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Material Washer
300 Series Stainless Steel
Specifications Min Float
.076 in
Specifications Optional Finish
Knob (aluminum) â Black AnodizeScrew (steel and stainless) â Black Nitride
Specifications Screw Length Code
2
Specifications Shank Code
1
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MW
Specifications W Nom
.407 in
